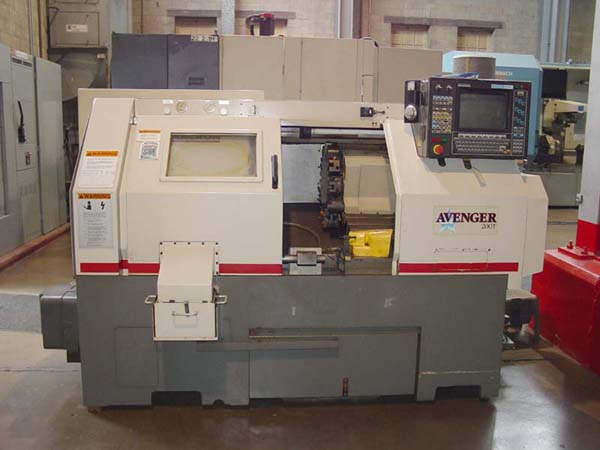

CINCINNATI MILACRON 'AVENGER' CNC TURNING CENTER
Model 200T, New 1994, S/N 3650A0T94-0224
Stock# K13910
EQUIPPED WITH:

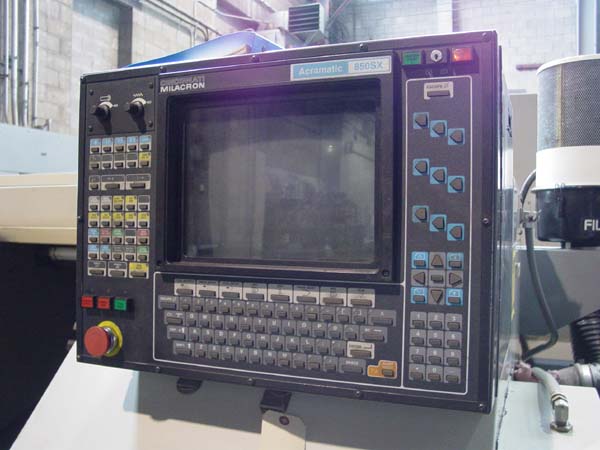

Acramatic 850SX CNC Control with Color CRT, Multiple Part
Program

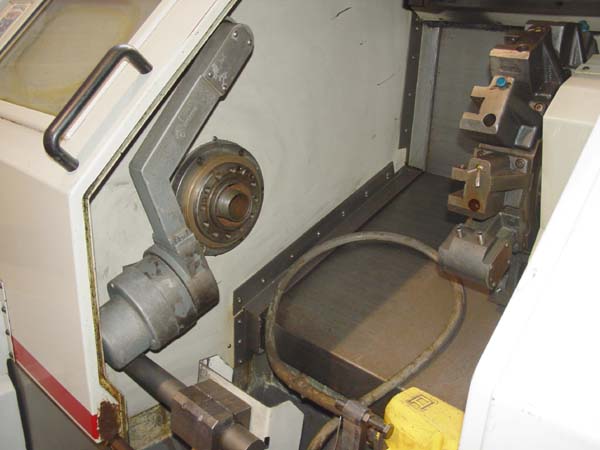

Storage, Data Line RS-232 Port, Tailstock Option
w/Programmable Body and Quill, Cycle Time Monitor, Tool Setting Probe, Auto

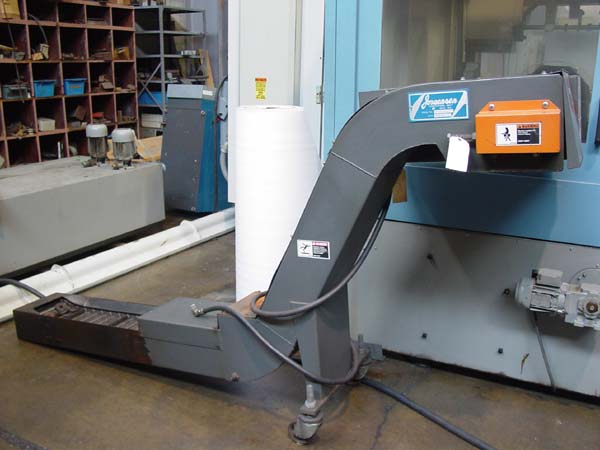

Lube, Chip Conveyor and Coolant System, Tool Holders.
CATALOGUE SPECIFICATIONS:
Max Swing Over Bed......................................
23.54"
Max Swing Over Carriage.................................
10.55"
Max Tailstock Position..................................
23.5"
Max Machinable Center Distance..........................
20.87"
Standard Chuck Size..................................... 8.27"
Cross Travel (X-Axis)................................... 7.09"
Longitudinal Travel (Z-Axis)............................
20.87"
Feed Range (Infinitely Variable)........................
.1-400 IPM
Rapid Traverse Rate (X-Axis)............................ 787
IPM
Rapid Traverse Rate (Y-Axis)............................ 944
IPM

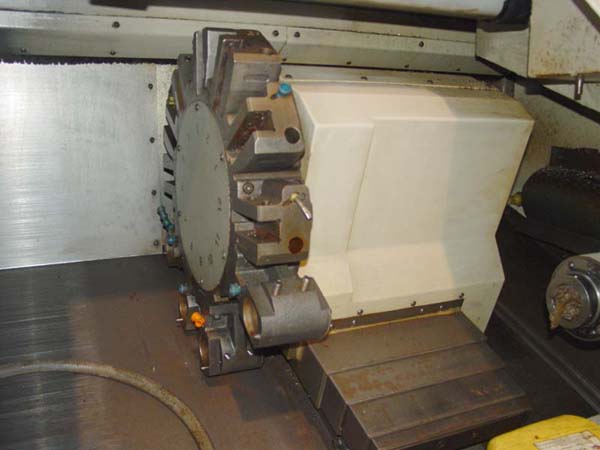

Number of Turrets....................................... 1
Tool Positions.......................................... 12
Total
Spindle Bore............................................ 3.15"
Spindle Nose............................................ A2-6
Spindle Speed Range (1 RPM Increments)..................
30-5000 RPM
Spindle Horsepower...................................... 30 HP
Electrics...............................................
230/460/3/60
Approximate Machine Dimensions.......................... 104"
x 68"
Approximate Machine Height.............................. 69"
Approximate Machine Weight..............................
10,300 LBS
CONDITION: From a Aerospace Facility. Appears to be in Very
Good Condition.
