Fanuc RoboDrill Alpha-T21iFL
CNC Vertical Machining Center

Stock # K15318

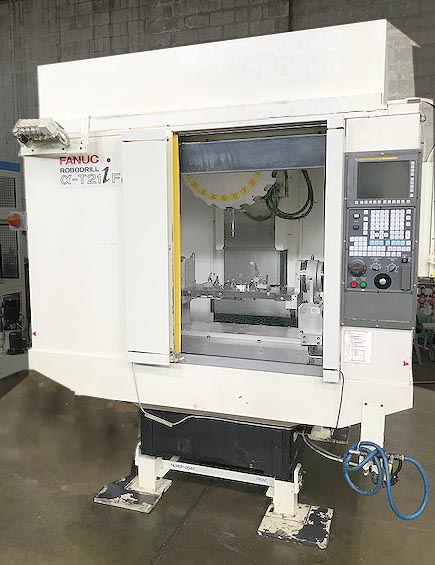

ACTUAL PHOTOS

                  FANUC ROBODRILL Alpha-T21iFL CNC VERTICAL MACHINING CENTER
                                      Model Alpha-T21iFL, New 6/2008, S/N P086WH738
                                                            Stock# K15318


EQUIPPED WITH:
Fanuc 31i CNC Control, Multiple Part Program Storage, Rigid Tapping,
300mm (11.811") Column Riser, Trunnion Style 90 Degree Indexing A-Axis
Auto Indexing Table, 21 Station Automatic Tool Changer, Hydraulic Part Clamping,
High Pressure Through Spindle Coolant, Automatic Lubrication, Chip Flush,
Automatic Door, Operator Door Safety Light Curtain, JPC Chip Conveyor/
Coolant System with Mist Collector and "Built-in" Fines Filter.

CATALOG SPECIFICATIONS:
Table Working Surface................................................33.46" x 16.1"
Longitudinal Travel (X-Axis)....................................... 27.55"
Cross Travel (Y-Axis)................................................. 15.74"
Vertical Travel (Z-Axis).............................................. 12.99"
Max Table Load......................................................... 660 LBS
Max Distance Spindle to Table Top........................... 29.75"
Max Distance Spindle Nose to Trunnion Center....... 16.25"
Rapid Traverse Rate (X-,Y-,Z-Axes).......................... 2125 IPM
Feed Rate (X-,Y-,Z-Axes).......................................... 1181 IPM
Tool Storage Capacity................................................ 21 ATC
Torque, Up To............................................................ 76 NM
Tool Change Time..................................................... 0.9 Sec Tool-To-Tool
Spindle Horsepower.................................................. 14.5 HP
Spindle Speeds, Inf. Variable.................................... 10,000 RPM
Max Spindle Speed for Tapping................................. 8,000 RPM
Spindle Taper............................................................. BT-30
Approximate Dimensions........................................... 68" x 84"
Approximate Height................................................... 116"
Approximate Weight................................................... 5,500 LBS


CONDITION: Appears to be in Excellent Condition!
