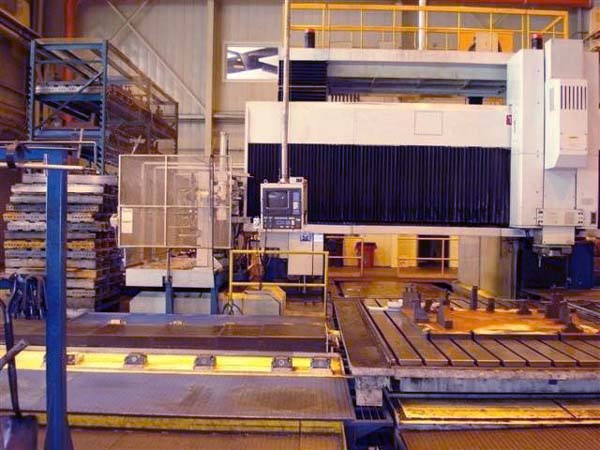

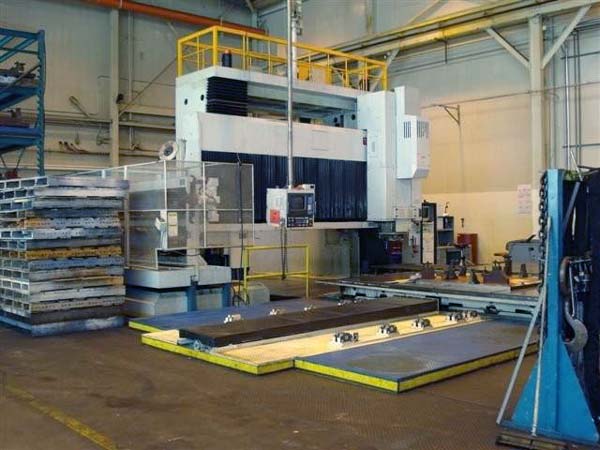

Toyoda Model BN25A Double Column 4-Axis Vertical Machining
Center
Five Sided Machining with 2-Pallets
Year: 1992 - Owner Paid 2.2 Million in 1992 - Machine is Under Power
in USA
Specifications:
Pallet Size.......................... 98.5" x 157.5"
Pallet Load Capacity............ 50,000 lbs.
Distance Between Columns... 124"
Distance Between Spindle Nose and Pallet Top...... 80"
Spindle Speeds....................................................
2,500 RPM's Max.
Spindle Taper.......................................................
Cat #50
Spindle Drive Motor............................................... 50
HP
Travels:
Z-Axis (Spindle Head Ram Stroke).... 31.5"
W-Axis (Cross Rail Vertical).............. 55"
Y-Axis (Cross Rail Across Table)....... 153"
X-Axis (Table Stroke)......................... 237"
Equipped With:

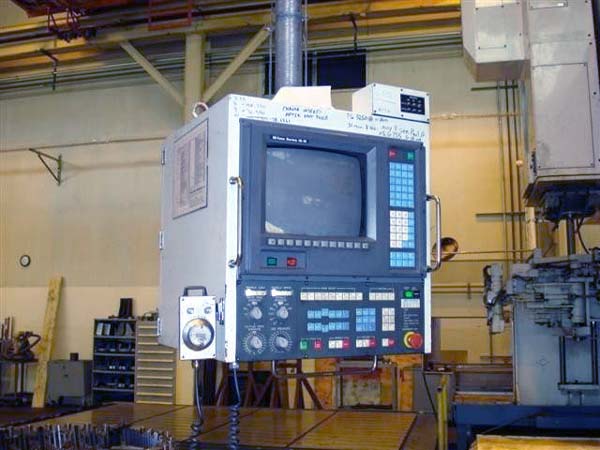

- Fanuc 15M 4-Axis CNC Control

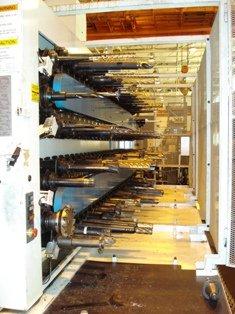

- 120 Position Auto Tool Changer
- Spindle Head Indexing 90 Deg X 4
- Auto Pallet Changer

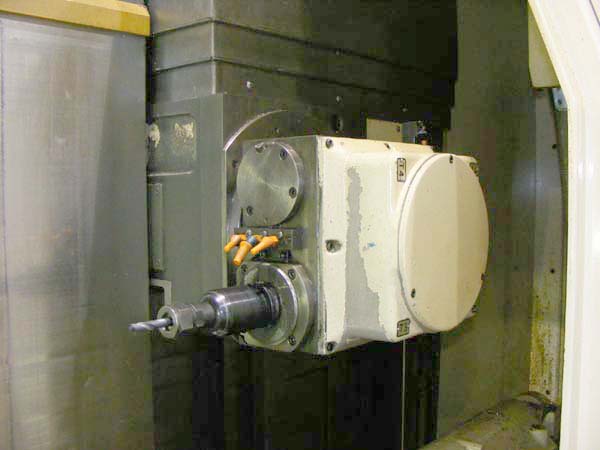

- Auto Attachment Changer
- Chip Conveyors
- Tool Breakage Detection
