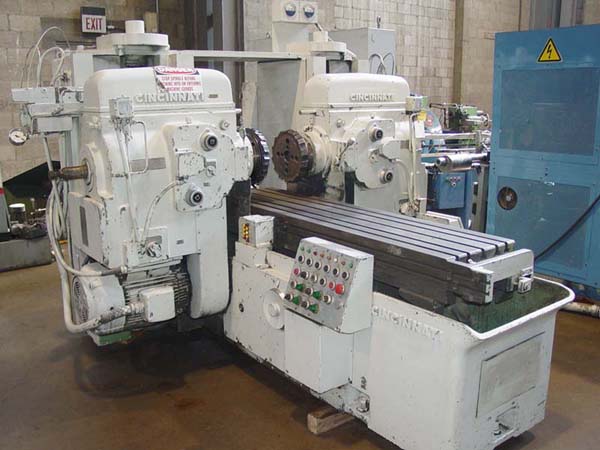

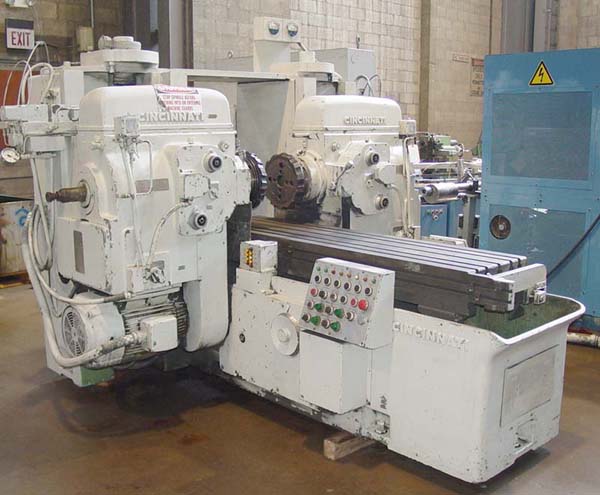

320-184 CINCINNATI HORIZONTAL DUPLEX
PRODUCTION MILL
Model 320-184 HyPowermatic, New 1969, S/N 311441D5V-5
Stock # K13376
EQUIPPED WITH:

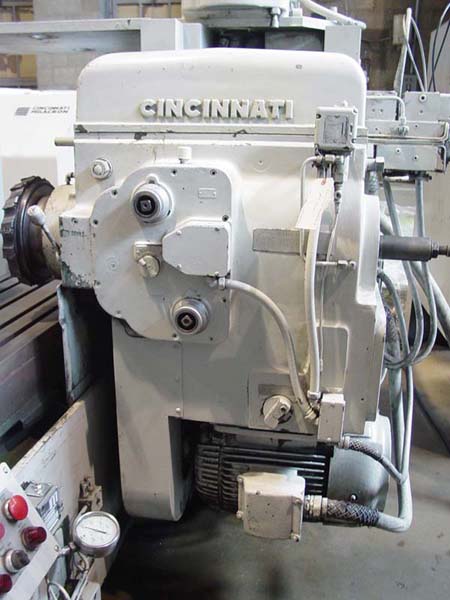

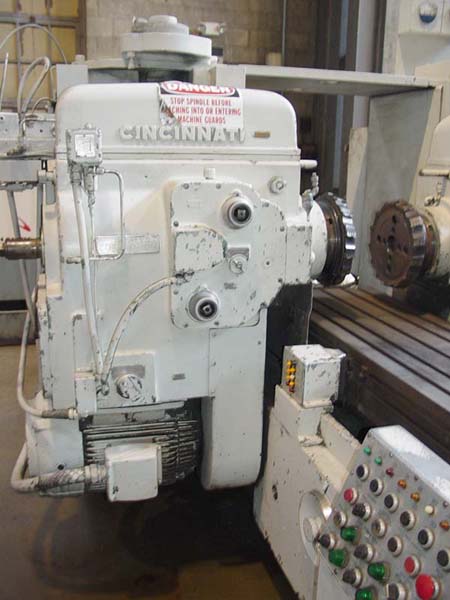

Heavy Duty Bed Type Construction, (2) 20 HP 50 Taper Opposed

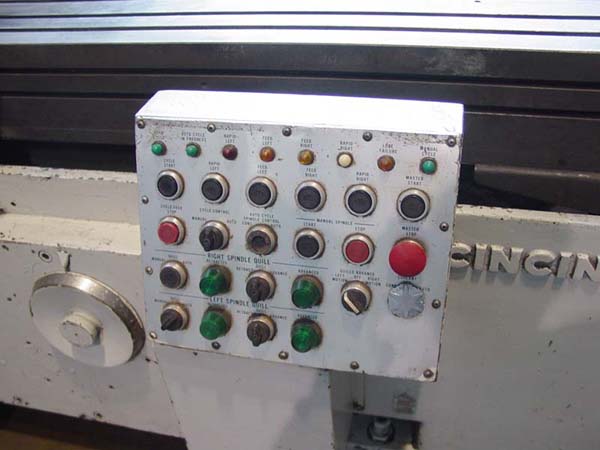

Spindles, Automatic Quill Retraction, Trip Dogs w/ Auto Table Cycles,

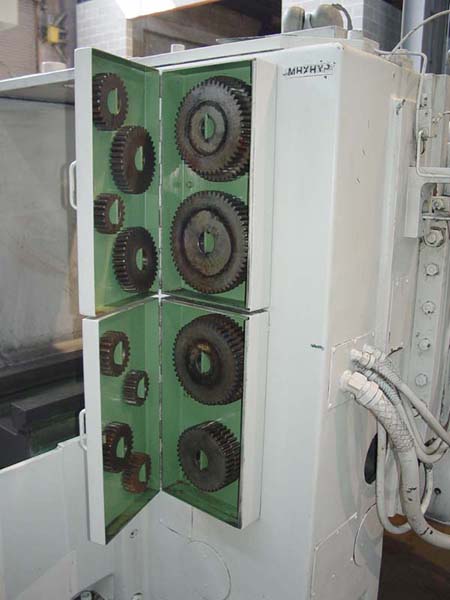

Quantity of Change Gears, Gusher Coolant Pump, Misc Tooling and
Cutters.
CATALOGUE SPECIFICATIONS:

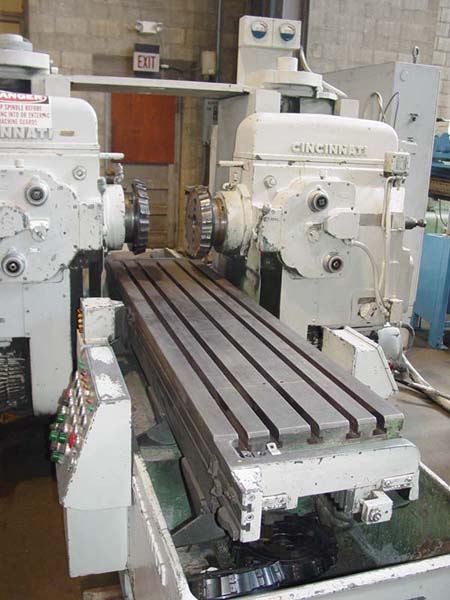

Table Size............................................ 18" x 80"
Table Working Surface................................. 18" x 72"
Longitudinal Table Travel (X-Axis).................... 48
Vertical Travel of Spindle Carrier (Z-Axis)........... 14
Max Vertical Spindle Center to Table Surface.......... 18-1/4"
Min Vertical Spindle Center to Table Surface.......... 4-1/4"
Quill Adjustment of Horizontal Spindle (Y-Axis)....... 4"
Max Spindle Face to Table Center...................... 11-1/2"
Min Spindle Face to Table Center...................... 7-1/2"
Feed Range Traverse (Infinite)........................ 1/2 to 150 IPM
Rapid Traverse........................................ 300 IPM
Spindle Speeds (16)................................... 20-2000 RPM
Spindle Horsepower.................................... 20 HP
Spindle Taper......................................... 50
Approximate Machine Dimensions........................ 143" x 111"
Approximate Machine Height............................ 73"
Approximate Machine Weight............................ 18,500.
CONDITION: Machine Appears to be in Very Good Condition.
