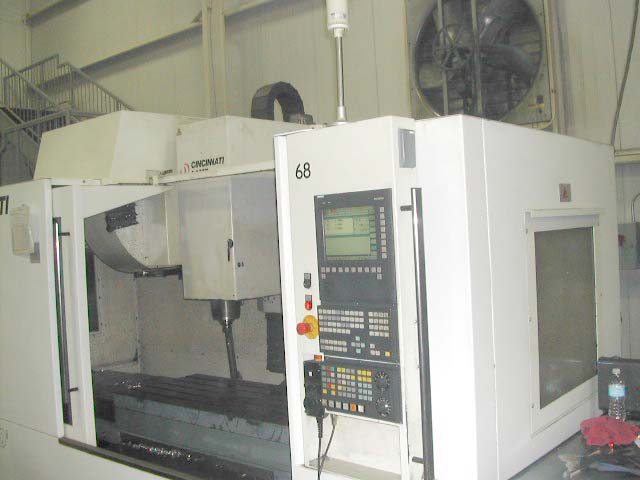

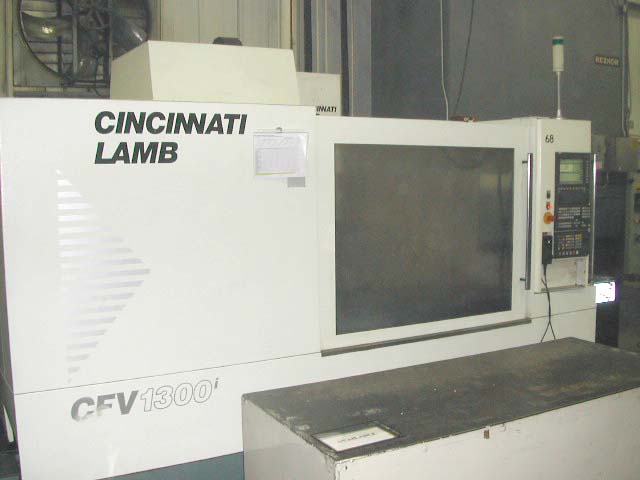

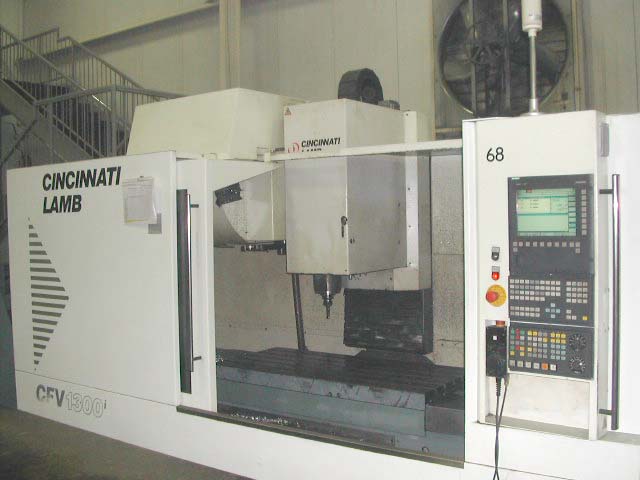

CINCINNATI LAMB CFV-1300 CNC VERTICAL
MACHINING CENTER
Model CFV-1300, New 2004, Stk# K13421
EQUIPPED WITH:

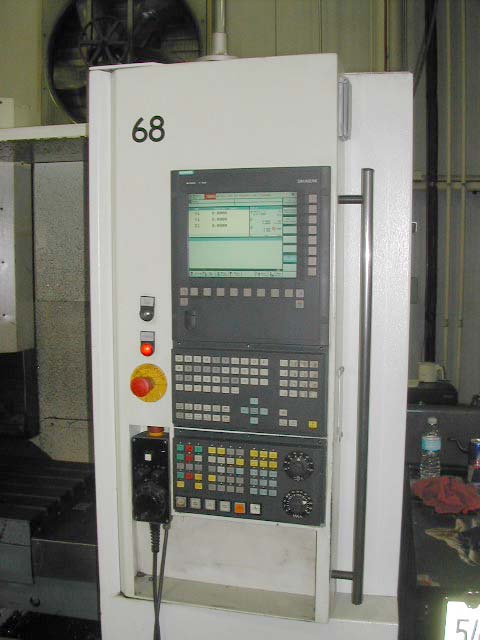

Siemens 810D CNC Control w/ Color CRT,
Powerline Shopmill
Conversational Programming, Maximum Program Storage, Tool Cycle Timer
and Counter, Migrating Tools, RS-232 Port, 30 Station Automatic Tool

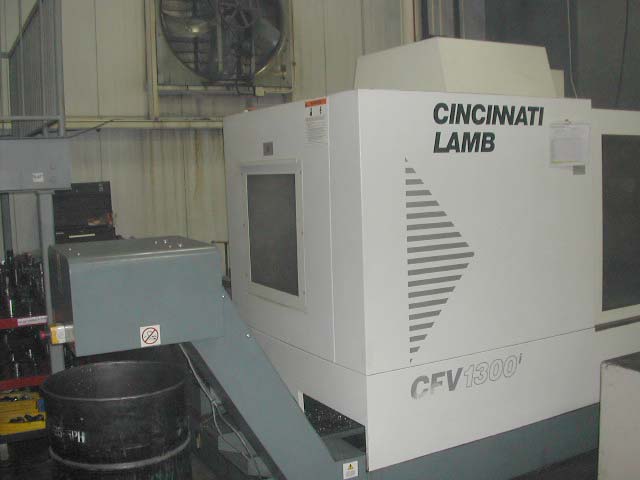

Changer, Full Coolant Enclosure, Chip Conveyor and Coolant System.
CATALOGUE SPECIFICATIONS:
X Travel (Longitudinal)............................... 50.7"
Y Travel (Cross)...................................... 21"
Z Travel (Vertical)................................... 21.7"

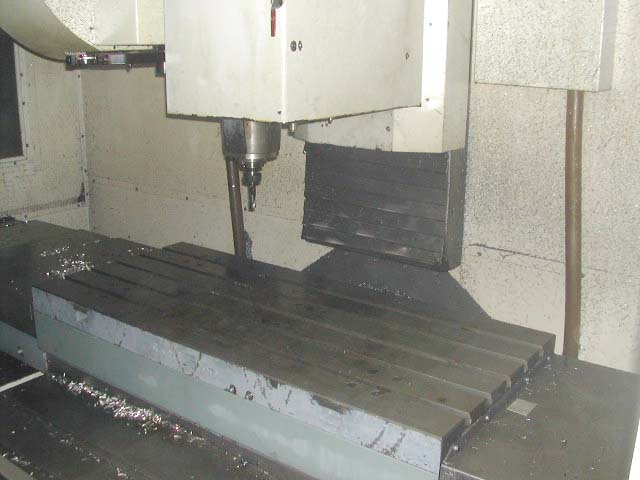

Table Working Surface................................. 53.4" x 23.4"
Table Work Load Capacity.............................. 1540 LBS
Spindle Horsepower.................................... 15 HP
Spindle Speeds........................................ 60-12,500 RPM
Spindle Taper......................................... CAT 40
Feed Rates, X & Y..................................... 0.1 to 700 IPM
Feed Rate, Z.......................................... 0.1 to 700 IPM
Rapid Traverse X & Y.................................. 1400 IPM
Rapid Traverse Z...................................... 1400 IPM
Tool Storage Capacity................................. 30
Approximate Dimensions................................ 138" x 118"
Approximate Height.................................... 119"
Approximate Weight.................................... 12,925 LBS
CONDITION: Machine appears to be in Excellent Condition !
