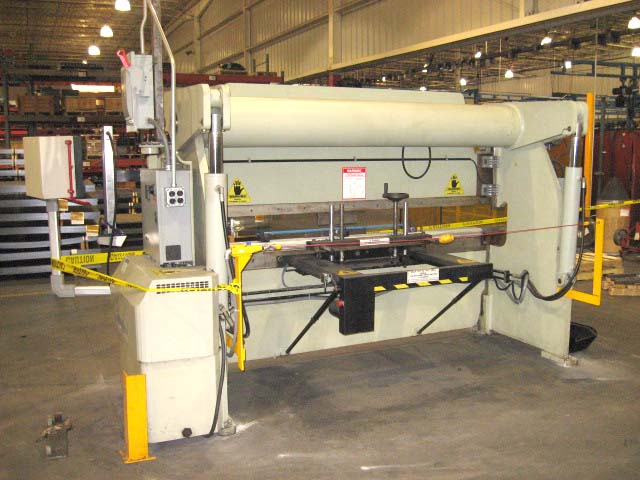

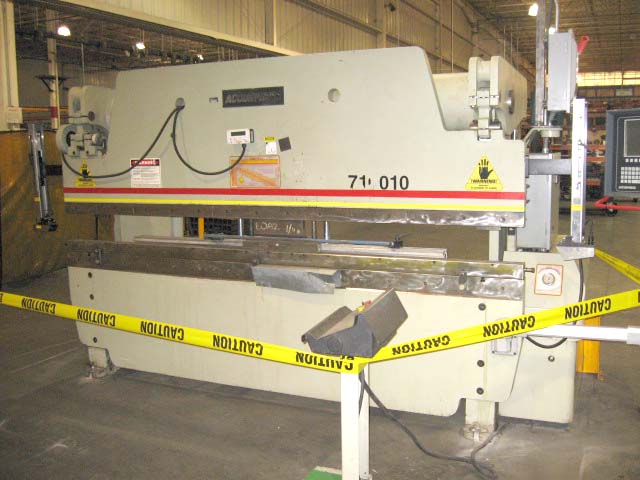

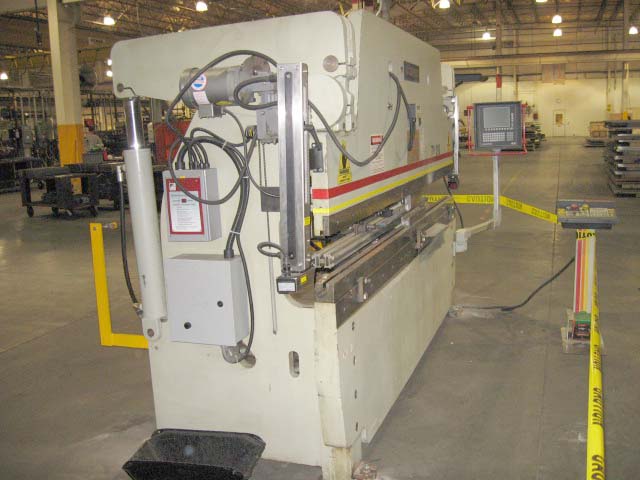

100 TON X 10' ACCURPRESS CNC HYDRAULIC PRESS BRAKE
                                        Model 710010,  New 2008
                                               Stock # K13426



EQUIPPED WITH:

ETS-3000 CNC Control, 2-Axis Backgauge,  Ram Tilt Indicator, Laser-Safe Light Curtains. Infinite Pressure Adjustment.

CATALOG SPECIFICATIONS:

Overall Length of Die Surface ........................ 120" (10')
Maximum Bending Length................................ 120" (10')
Distance Between Housings ............................ 102" (8'6")
Tonnage Capacity:..................................... 100 Ton
Shut Height w/o Bolster............................... 6"
Length of Stroke (Adjustable)......................... 8"
Open Height........................................... 14"
Pressing Speed ....................................... 24 IPM
Fast Approach Speed................................... 115 IPM
Fast Return Speed..................................... 200 IPM
Drive Motor........................................... 10 HP
Electrical System .................................... 440/3/60
Approximate Machine Dimensions........................ 125" x 60"
Approximate Machine Height............................ 103"
Approximate Machine Weight............................ 14,000 Lbs



CONDITION: Used in and R & D Application.  Machine Appears to be in Excellent Condition!!
