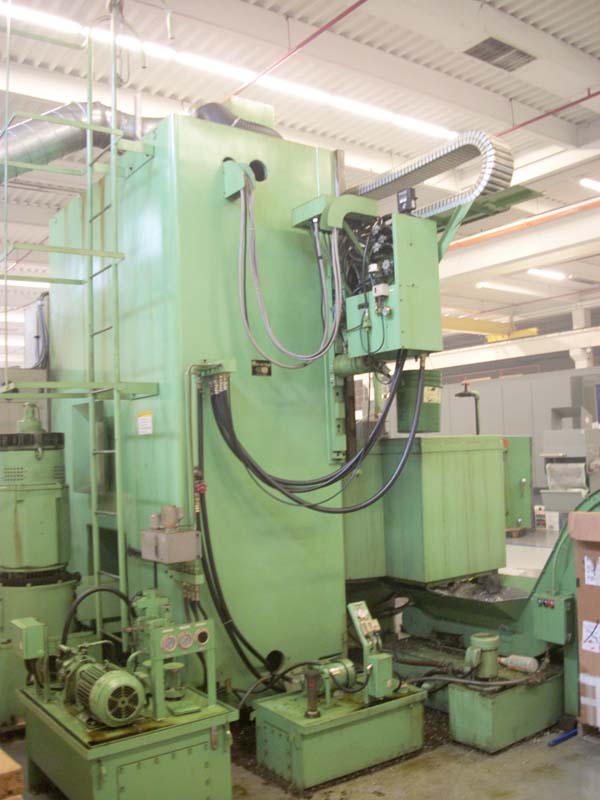

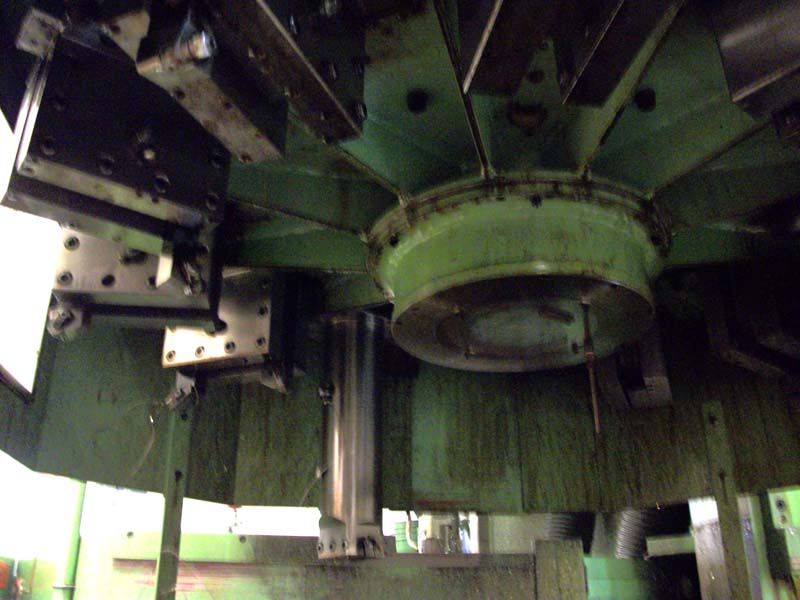

66" OM CNC VERTICAL TURNING CENTER
Model VT5-16, New 1995, Stock# K13430
EQUIPPED WITH:
Fanuc 15T CNC Pendent Control w/CRT,
Multiple Part Program Storage,
RS-232 Port, 66" T-Slotted Face Plate with 4 Independent Manually
Adjusted Top Jaws, 16 Position Automatic Tool Changer, Heavy Duty 60 HP
Spindle Drive, Full Splash Enclosure, Chip Conveyor and Coolant System.
SPECIFICATION:
Table
Diameter............................................. 66"
Maximum Turning Diameter................................... 78.75"
Maximum Turning Height..................................... 63"
Ram-Head Travel Right of Center............................ 44"
Ram-Head Travel Left of Center............................. 38"
Ram-Head Travel Vertical................................... 31.5"
Vertical Travel of the Cross Rail.......................... 29.68"
Table Speeds (RPM) ........................................ 1.6 to 250
Feed Rates ................................................ 0 to 400 IPM
Automatic Tool Changer Capacity............................ 16 Tools
Main Spindle Motor Drive .................................. 60/50 HP
Approximate Machine Weight ................................ 45,000 lbs
CONDITION: Very Low Hours !! Appears to be
in Excellent Condition !
