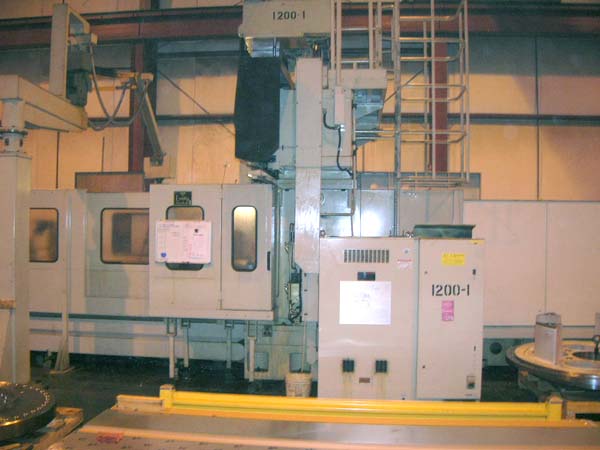

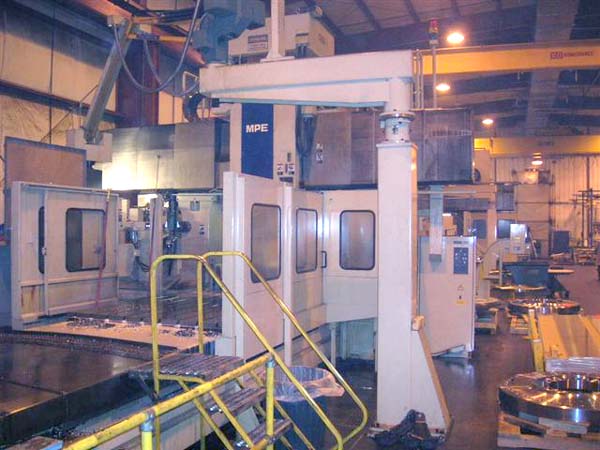

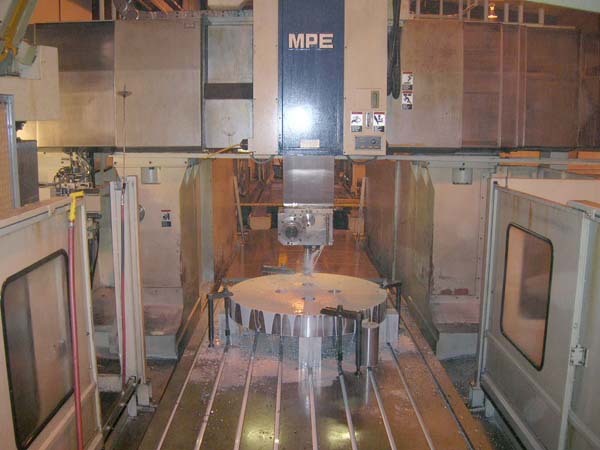

TOSHIBA MODEL MPE-2140
DOUBLE COLUMN, 5-SIDED CNC VERTICAL MACHINING CENTER
New 1999
EQUIPPED WITH :
Tosnuc 888 CNC Control

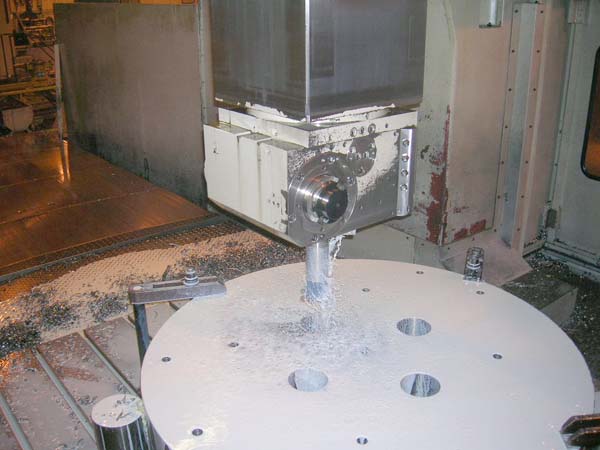

Automatic attachment (5-face cutter head) index (AAI) (4-position
index by 90?)
Automation tool loading/unloading device for vertical spindle
Automation tool loading/unloading device for horizontal spindle
Operation pendant unit and its stand
Heavy Duty CAT-50 Geared Spindle
Hydraulic ram balancing cylinder
Oil mist lubrication unit (for gears and bearings)
Telescopic bed steel cover
Telescopic crossrail steel cover

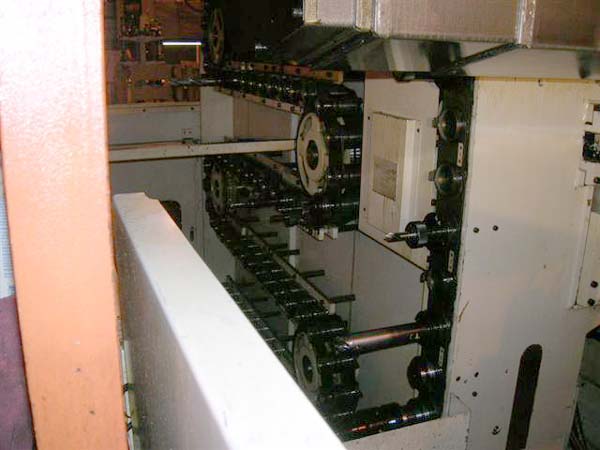

120- Automatic Tool Changer
Head Indexing Every 5 Degrees
Chip Conveyor
Part Probe
SPECIFICATION
Table Working
Surface.........................................................................................................
71? x 157?
Distance between
columns..............................................................................................................
83?
X-Axis
Travel...............................................................................................................................
177?
Y-Axis
Travel...............................................................................................................................
114?
Z-Axis
Travel.................................................................................................................................
39?
Distance from table top to vertical spindle
nose...........................................................................
2 ? 41?
Spindle Speed
Range................................................................................................................
30-3,000 rpm
Number of spindle speed
ranges..........................................................................................................
2
Spindle
Taper.............................................................................................................................
No. 50
Rapid traverse rate X-Axis
Travel............................................................................................
787 IPM
Y-Axis
Travel..........................................................................................
787 IPM
Z-Axis
Travel..........................................................................................
295 IPM
Feedrate X-Axis
Travel......................................................................................
.1-236 IPM
Y-Axis
Travel......................................................................................
.1-236 IPM
Z-Axis
Travel......................................................................................
.1-236 IPM
Jog Feedrate X-Axis
Travel.......................................................................................
.1-236 IPM
Y-Axis
Travel......................................................................................
.1-236 IPM
Z-Axis
Travel......................................................................................
.1-236 IPM
Spindle
Motor..............................................................................................................................
25HP
Tool
Changer.........................................................................................................................
120 Tools
Weight.................................................................................................................................
88,000 lbs.

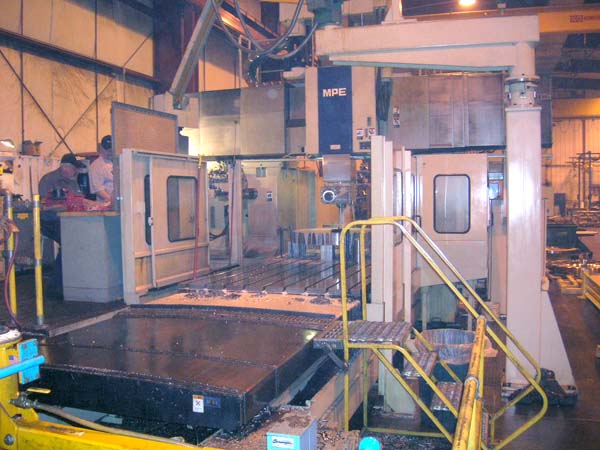

CONDITION: Machine is under power in a plant running Aerospace and
Power Gen parts every day.
Appears to be in
Excellent Condition
