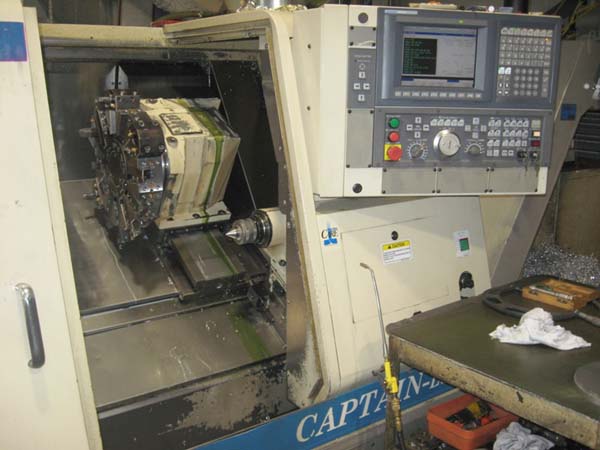

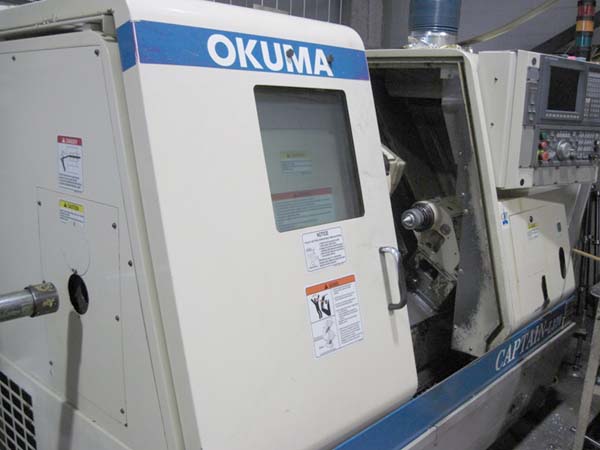

OKUMA CAPTAIN  L-370 CNC TURNING CENTER
                  Model L370, New 2000, Stock# K13434



EQUIPPED WITH:

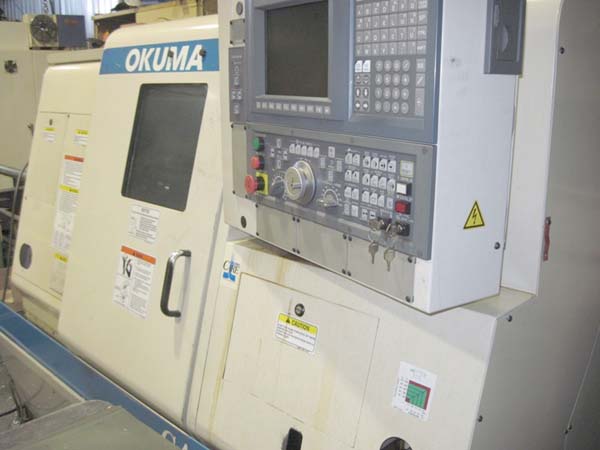

Okuma E100L CNC Control w/CRT, RS-232 Port, Swing Down Toll Setter Arm,

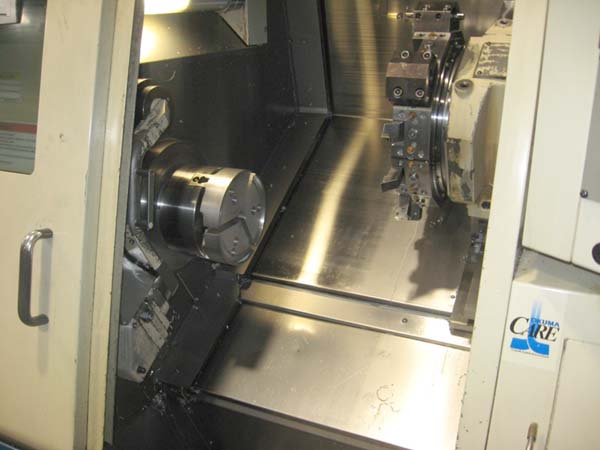

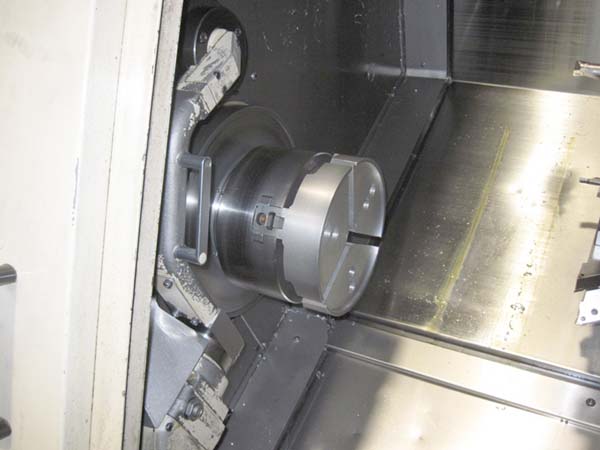

16C Hydraulic Collet Chuck,  Bed Mounted Programmable Tailstock,
 Auto Backlash Compensation, Coolant System, and Chip Conveyor.



CATALOGUE SPECIFICATIONS:
Max Swing Over Bed...................................... 20.08"
Maximum Turning Diameter................................ 14.56"
Maximum Turning Length.................................. 20.47
Cross Travel (X-Axis)................................... 10.23"
Longitudinal Travel (Z-Axis)............................ 20.47"
Feed Range (Infinitely Variable)........................ .1-400 IPM
Rapid Traverse Rate (X-Axis)............................ 787 IPM
Rapid Traverse Rate (Y-Axis)............................ 984 IPM

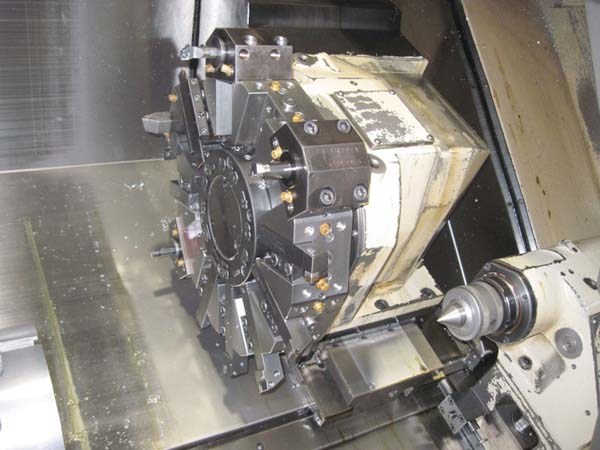

Number of Turrets....................................... 1
Tool Positions.......................................... 12 Total
Spindle Bore............................................ 2.44"
Spindle Nose............................................ A2-6
Spindle Speed Range (1 RPM Increments).................. 45-4500 RPM
Spindle Horsepower...................................... 20 HP
Approximate Machine Dimensions.......................... 104" x 73"
Approximate Machine Height.............................. 69"
Approximate Machine Weight.............................. 9,000 LBS

CONDITION: Machine Appears to be in Very Good Condition !!
