EQUIPPED WITH:

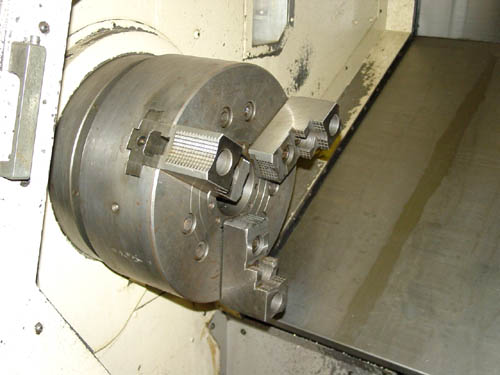

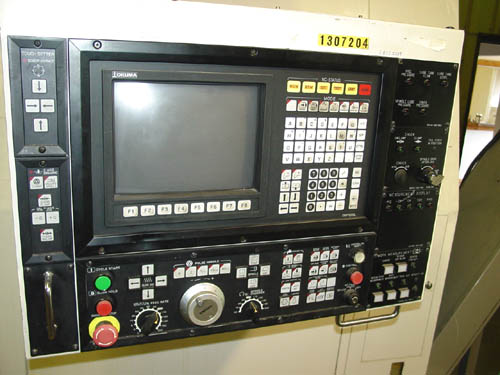

OSP 5020L CNC Control w/CRT,  RS-232 Port, 15.75" Kitagawa B215 3-Jaw Power Chuck and 12" Kitagawa B212 3-Jaw Power

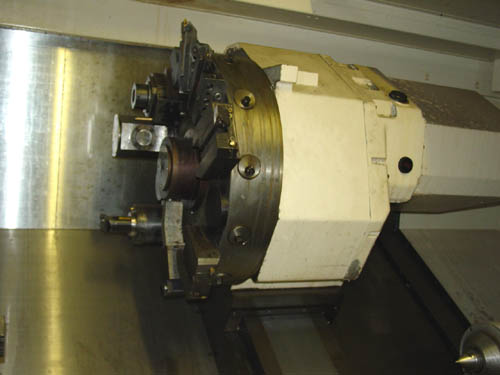

Chuck, Circular Interpolation, Tool Setting Probe, Renishaw Turret Mounted Surface Probe, Live Tooling, Full Contouring C-Axis Spindle, Bed

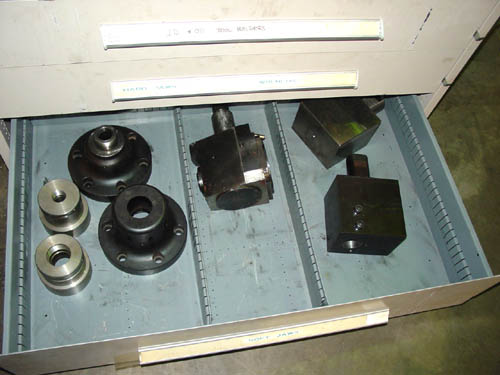

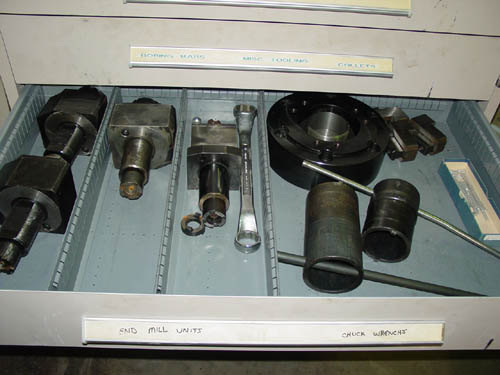

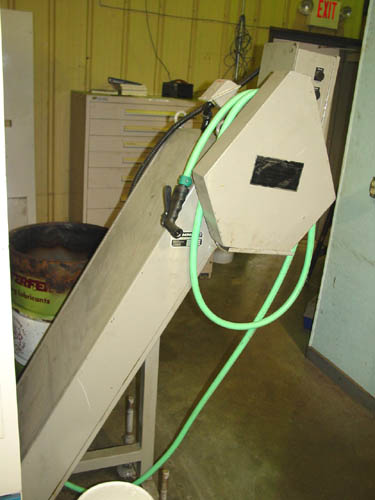

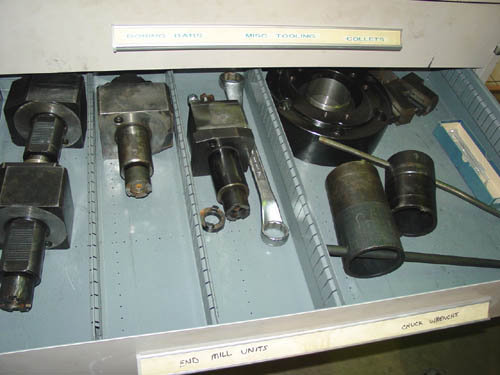

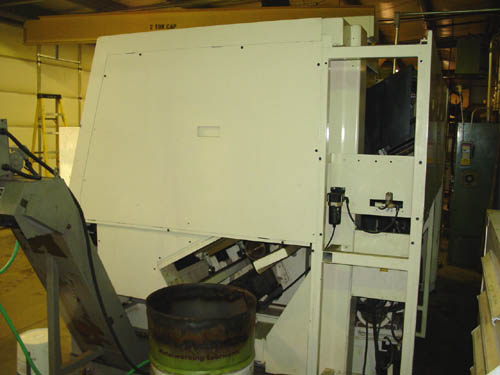

Mounted Programmable Tailstock, Auto Backlash Compensation, Coolant System, and Chip Conveyor, Large Tooling Package.



CATALOGUE SPECIFICATIONS:
Max Swing Over Bed...................................... 33.77"
Maximum Turning Diameter................................ 25.98"
Maximum Turning Length.................................. 39.34"
Chuck Size.............................................. 15"
Cross Travel (X-Axis)................................... 17.34"
Longitudinal Travel (Z-Axis)............................ 42.37"
Feed Range (Infinitely Variable)........................ .1-400 IPM
Rapid Traverse Rate (X-Axis)............................ 591 IPM
Rapid Traverse Rate (Y-Axis)............................ 787 IPM
Number of Turrets....................................... 1
Tool Positions.......................................... 12 Total
Spindle Bore............................................ 4.33"
Spindle Nose............................................ A2-11
Spindle Speed Range (1 RPM Increments).................. 12-2800 RPM
Spindle Horsepower...................................... 50 HP
Approximate Machine Dimensions.......................... 114" x 167"
Approximate Machine Height.............................. 118"
Approximate Machine Weight.............................. 36,000 LBS



CONDITION: Machine Appears to be in Excellent Condition !!
           From National Lab. Very Low Hours !
