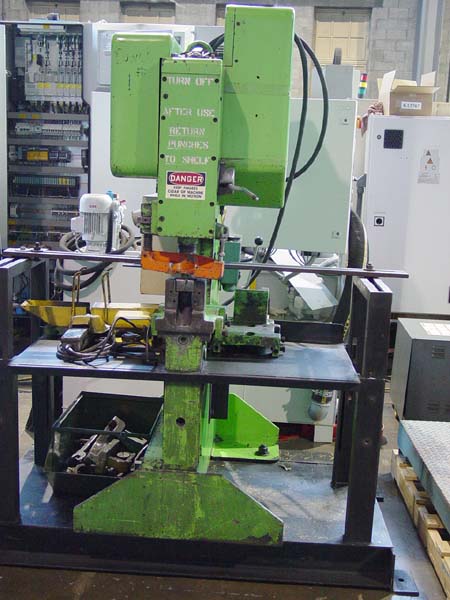

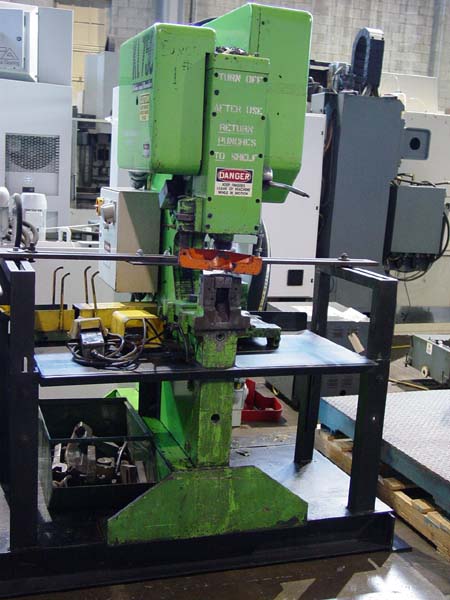

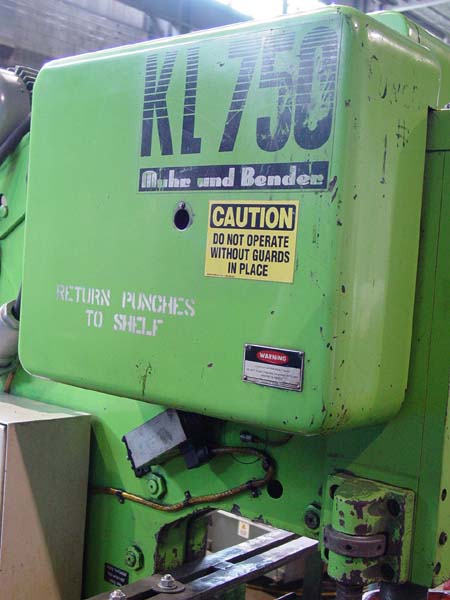

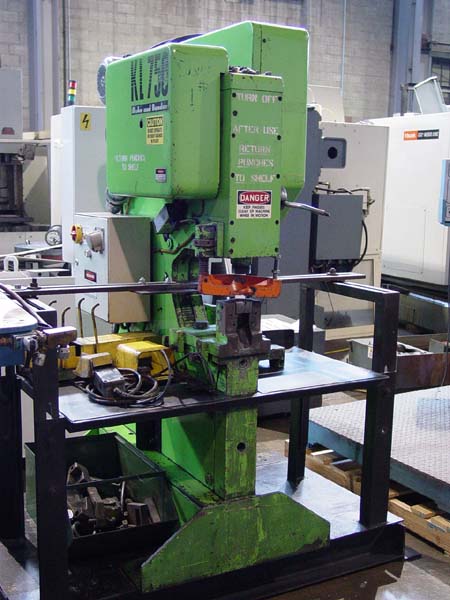

MUBEA KL750 82 TON SINGLE STATION PUNCH

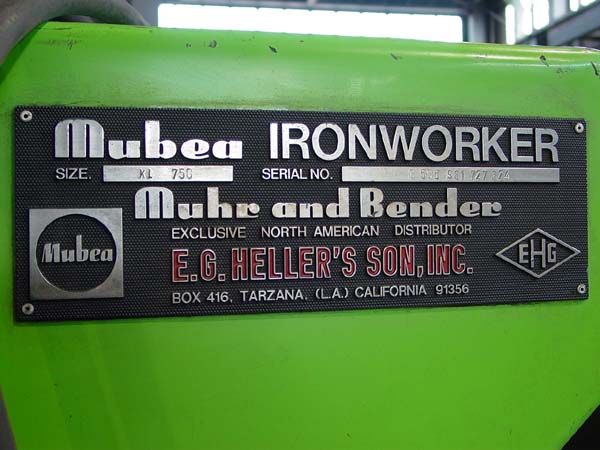

                     Model KL750, S/N 0505981727324, New
                                         Stock# K13718



EQUIPPED WITH:



Large quantity of Punches, Large and Small Punch Holders.

CATALOGUE SPECIFICATIONS:



Tonnage Capacity, Bottom Stroke...................... 82 Tons
Power Stroke Length.................................. 1-1/8"
Maximum Strokes per Minute........................... 45
Throat Depth......................................... 15-3/4"
Thickness Capacity, Maximum.......................... 13/16"
Hole Capacity Thru 13/16" Material................... 1-1/4"
Hole Capacity Thru 1/2" Material..................... 2"
Drive Motor.......................................... 3 HP
Electrical System....................................     /3/60
Overall Dimensions, L x W............................ 50" x 31"
Overall Height....................................... 74"
Weight, Approximately................................ 3600 Lbs.



NOTE:  Machine is in Very Good Condition. From the Re-work Department
       of a Large Sheet Metal Fabricators Shop.
