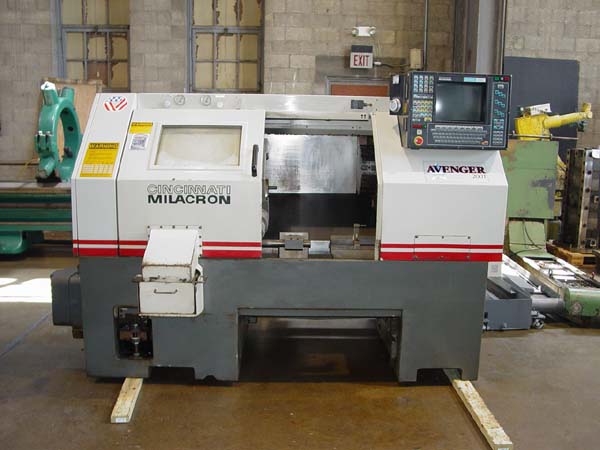

CINCINNATI MILACRON 'AVENGER' CNC TURNING CENTER
Model 200T, New 1994, S/N 3650A0T94-0224
Stock# K13756

EQUIPPED WITH:

Acramatic 850SX CNC Control with Color CRT, Multiple Part Program
Storage, Data Line RS-232 Port, Tailstock Option w/Programmable Body and
Quill, Manual Programming, Extended Storage, Extended Tool Data, MTB
Panel, Cycle Time Monitor, MTB 1 & 2, Total MCL Space, Enhanced
Maintenance, Extended Threading, 8" 3-Jaw Buck Maxamoto Power Chuck,
Tool Setting Probe, Auto Lube, Chip Conveyor and Coolant System,
Includes 4 Bolt-on Stick Tool Holders.

CATALOGUE SPECIFICATIONS:

Max Swing Over Bed...................................... 23.54"
Max Swing Over Carriage................................. 10.55"
Max Tailstock Position.................................. 23.5"
Max Machinable Center Distance.......................... 20.87"
Standard Chuck Size..................................... 8.27"
Cross Travel (X-Axis)................................... 7.09"
Longitudinal Travel (Z-Axis)............................ 20.87"
Feed Range (Infinitely Variable)........................ .1-400 IPM
Rapid Traverse Rate (X-Axis)............................ 787 IPM
Rapid Traverse Rate (Y-Axis)............................ 944 IPM
Number of Turrets....................................... 1
Tool Positions.......................................... 12 Total
Spindle Bore............................................ 3.15"
Spindle Nose............................................ A2-6
Spindle Speed Range (1 RPM Increments).................. 30-5000 RPM
Spindle Horsepower...................................... 30 HP
Electrics............................................... 230/460/3/60
Approximate Machine Dimensions.......................... 104" x 68"
Approximate Machine Height.............................. 69"
Approximate Machine Weight.............................. 10,300 LBS

CONDITION: From a Aerospace Facility. Appears to be un Very Good
Condition.
