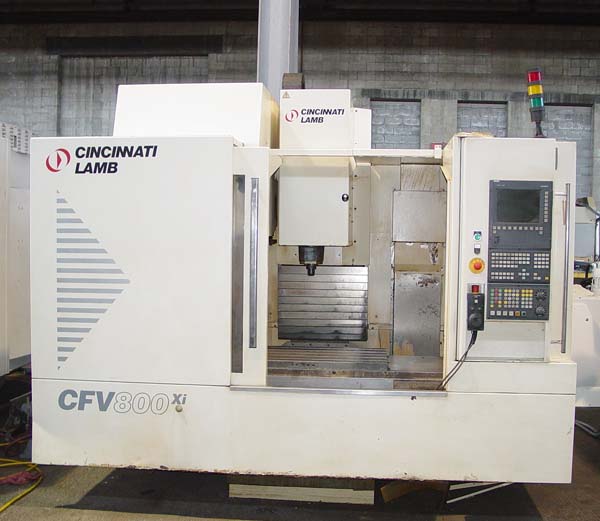

CINCINNATI CFV-800 CNC VERTICAL MACHINING CENTER
                          New 2004, Stock# K13767



EQUIPPED WITH:

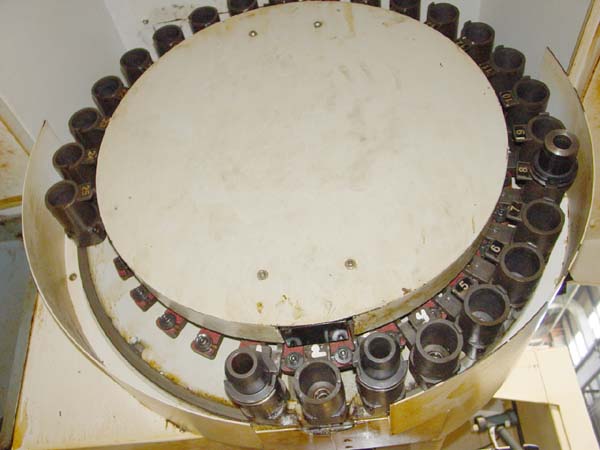

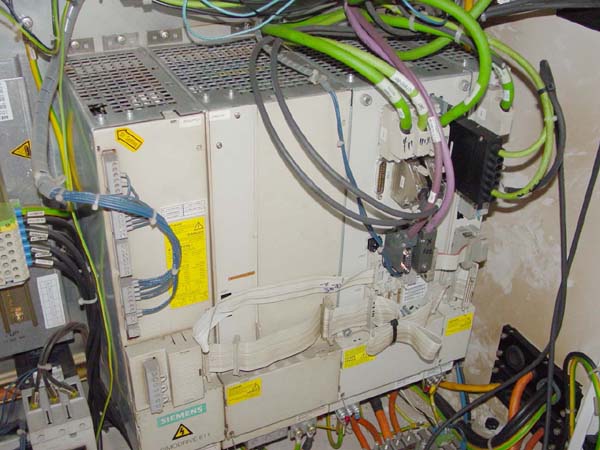

Siemens 810D CNC Control,Hand Held Pendent, Rigid Tapping, 25 Station
Automatic Double Arm Tool Changer, Thru Spindle Coolant, Full Coolant

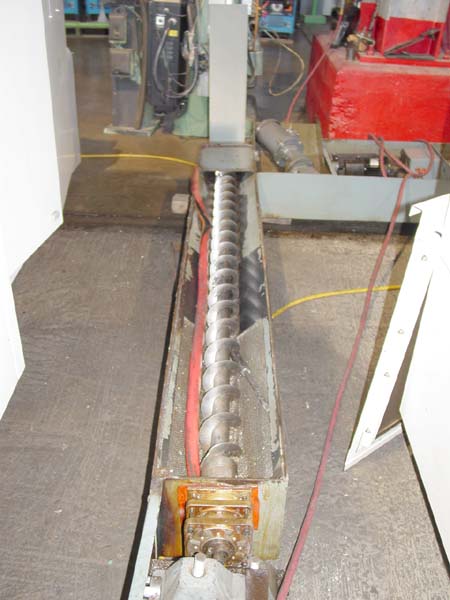

Enclosure, Spindle Load Meter, Chip and Coolant System.



CATALOGUE SPECIFICATIONS:

X Travel (Longitudinal)............................... 31.5"
Y Travel (Cross)...................................... 20"
Z Travel (Vertical)................................... 20"
Table Working Surface................................. 33"x20.5"
Table Work Load Capacity.............................. 880 LBS
Spindle Horsepower.................................... 15 HP
Spindle Speeds........................................ 60-12000 RPM
Spindle Taper......................................... #40 CAT
Rapid Traverse X & Y.................................. 1180 IPM
Rapid Traverse Z...................................... 1180 IPM
Tool Storage Capacity................................. 25
Approximate Dimensions................................ 89" x 137"
Approximate Height.................................... 106"
Approximate Weight.................................... 11,820 LBS

CONDITION:  This Machine Appears to be in Very Good Condition !
