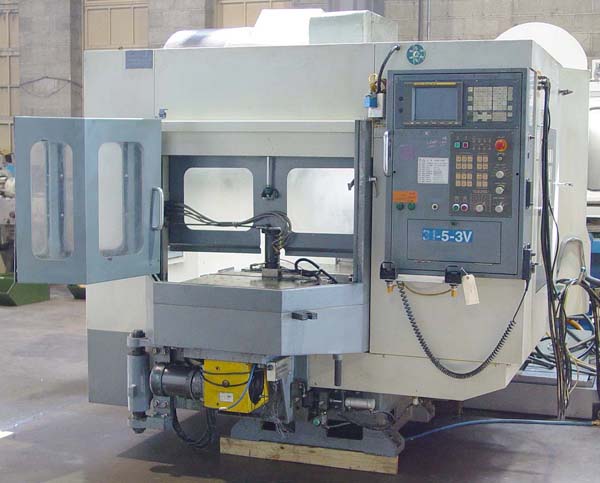

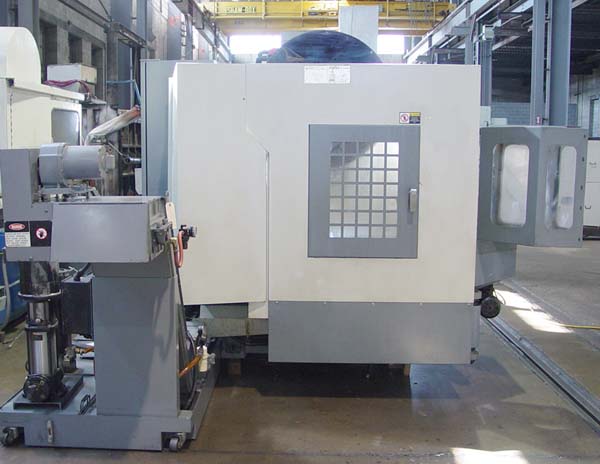

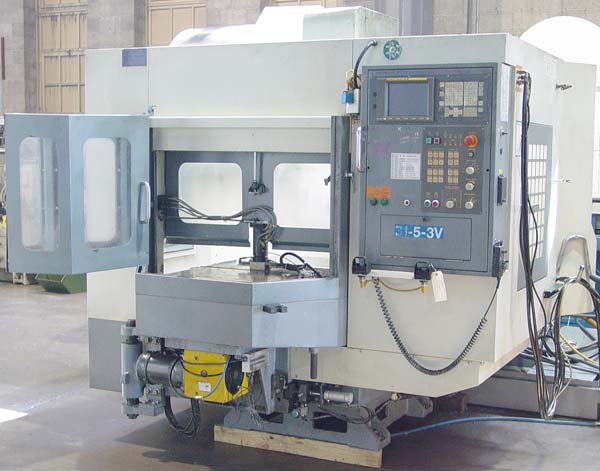

LEADWELL FMC-560 2-PALLET VERTICAL MACHINING CENTER
Model FMC-560, S/N 1L2TJD0581, New 7/2004
Stock# K13782
EQUIPPED
WITH:
Fanuc 18i CNC Control, Manual Pulse Generator, Background Edit, Canned
Cycles, Inch Metric Programming,Tool Life Management,Tool Offsets,

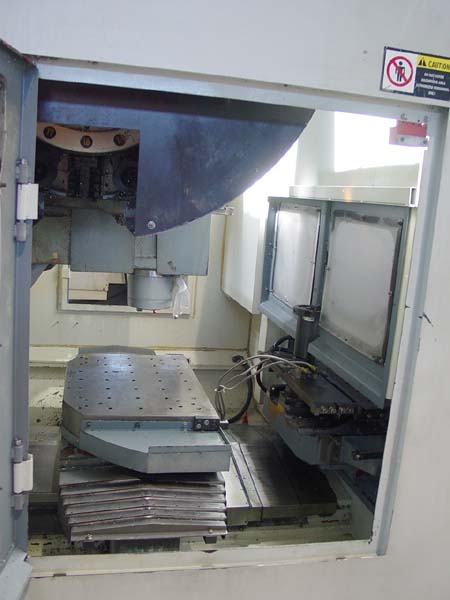

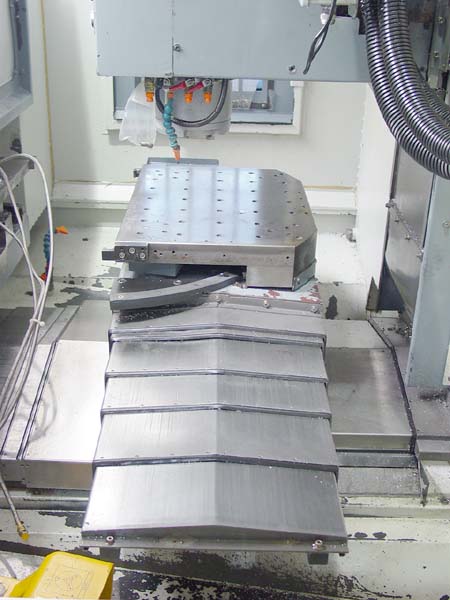

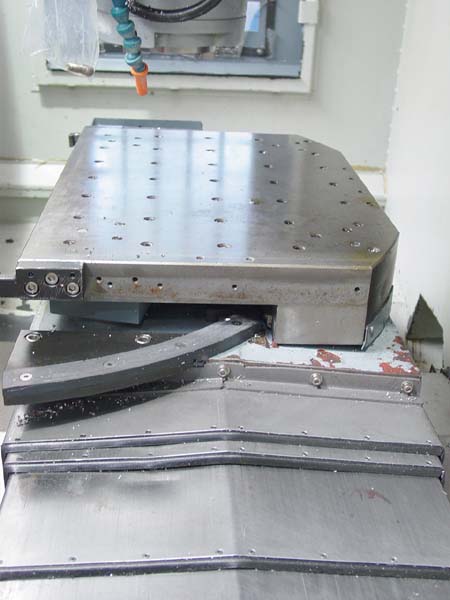

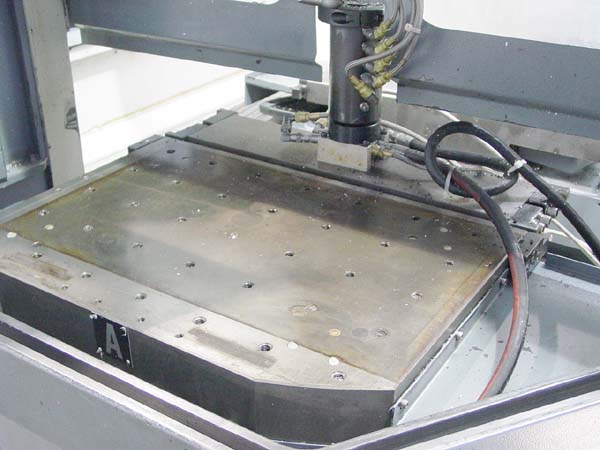

Automatic Pallet Changer with (2) 22" x 16.1" Pallets, Hydraulic Part
Clamping,
Rigid Tapping, 20 Station Automatic Tool Changer, Full Coolant
Enclosure, Conveyor,
and Coolant System.
CATALOGUE SPECIFICATIONS:
Working Areas (2)..................................... 22" x 16.1"
Table Load Capacity on Rotating Pallet................ 880 LBS
Table Top to Spindle Nose Minimum..................... 1.9"
Table Top to Spindle Nose Maximum..................... 18.89"
Longitudinal Travel (X-Axis).......................... 22"
Cross Travel (Y-Axis)................................. 16.5"
Vertical Travel (Z-Axis).............................. 17.7"
Rapid Traverse Rate X,Y, & Z Axes..................... 1889 IPM
Tool Storage Capacity................................. 24
Spindle Horsepower.................................... 15 HP
Spindle Speed Range................................... 50 - 12000 RPM
Spindle Taper......................................... CAT 40
Approximate Machine Dimensions........................ 89" x 118"
Approximate Machine Height............................ 98"
Approximate Machine Weight............................ 8,500 LBS
CONDITION: Machine Appears to be in Excellent Condition !
