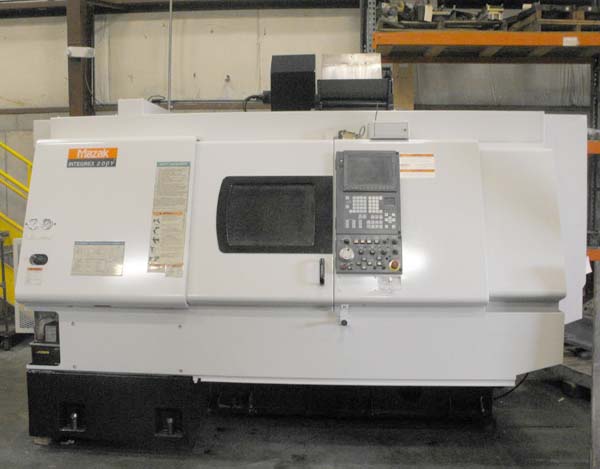

MAZAK CNC TURNING CENTER WITH LIVE TOOLING
, UNIVERSAL HEAD and Y AXIS
MODEL
INTEGREX 200Y, MFG: 1998, STK# K13787
EQUIPPED WITH

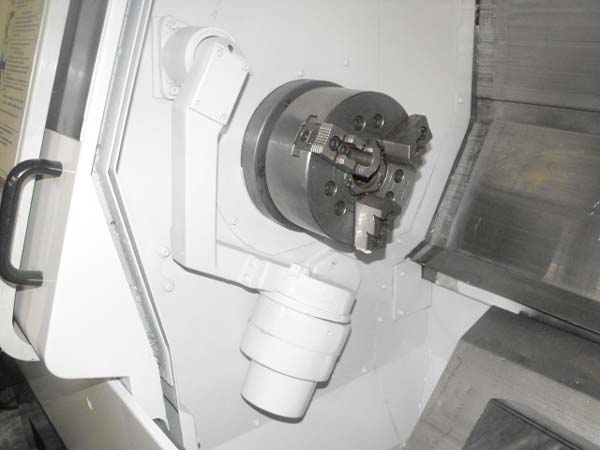

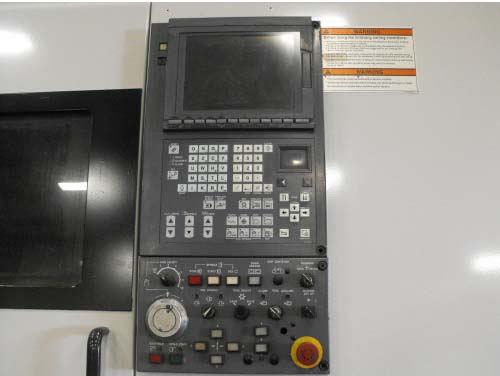

Mazatrol Fusion 640MT Control, 10 Inch Chuck, Chip
Conveyor, Coolant Thru Milling Head
Tool Eye, Milling Spindle
Synchronous Tapping
SPECIFICATIONS
Max.
Swing...............................................21.26 In
Max.
Cutting Length..................................40 In
X-Axis
Stroke............................................20.87 In
Y-Axis
Stroke............................................ 2.7 In
Z-Axis
Stroke............................................41.92 In
Spindle
Speed..........................................3500 RPM

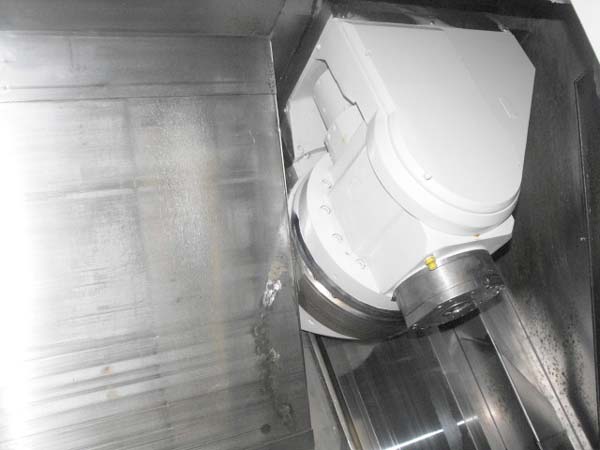

Head Tilt...................................................225 Degrees
Spindle
Nose............................................A2-6 In
Spindle
Bore............................................2.4 In
Rotary Tool
Speed Range.......................6000 RPM
Tool
Storage Capacity.............................40 Tools
Rapid
Traverse Rate
X-Axis...................................................1181 IPM
Y-Axis...................................................590 IPM
Z-Axis...................................................1181 IPM
C-Axis...................................................300 RPM
Machine
Height.....................................96.3 In
Floor Space
Requirements....................133.1 In x 88.6 In
Machine
Weight....................................15,942 Lbs.
