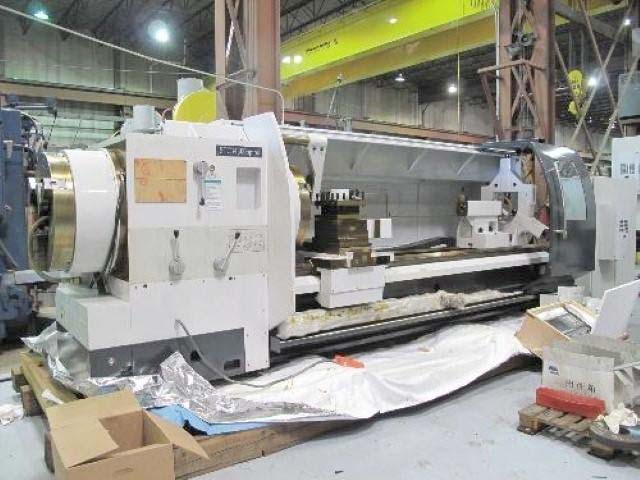

VANGUARD SMTCL Hollow Spindle CNC Oilfield Lathe with 14" Hole

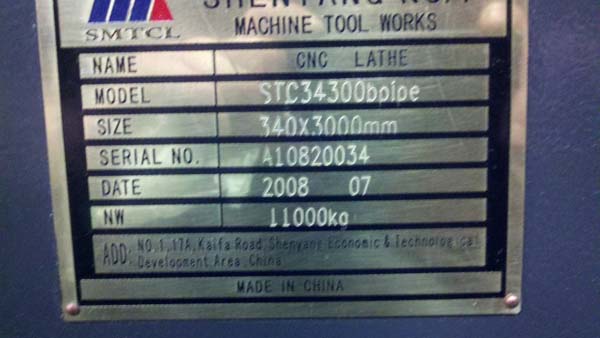

Model STC34300, BRAND NEW !


Equipped With:

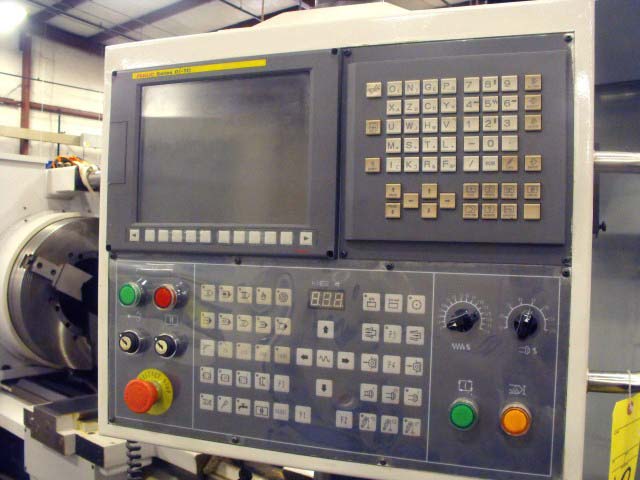

Fanuc 0iT CNC Control, Manual Guide i Conversational Programming, (2) 31" 3-Jaw Power Chucks, 13.97"" Spindle Bore, Adjustable Stock Stop, Sliding Chip Guard, 4 Position Automatic Turret, Steady Rest, Tailstock, Chip Pan, Coolant System.

Catalogue  Specifications:
Maximum Swing.................35.4"
Maximum Center Distance...............118"
X-Axis Travel...........................25.79"
Z-Axis Travel.................................123"
Spindle Nose/Bore...........A1-20 Bar Capacity 13.97"
Spindle Speed (12)..........................3 - 310 RPM
Spindle Motor ............................. 25 HP
Turret Type ......................... 4 Positions
Rapid Traverse Rates.................400 IPM
Machine Dimensions.....................230"x128"x78"
Machine Weight............................25,000 lbs.

Condition: Brand New Un-used Condition !
