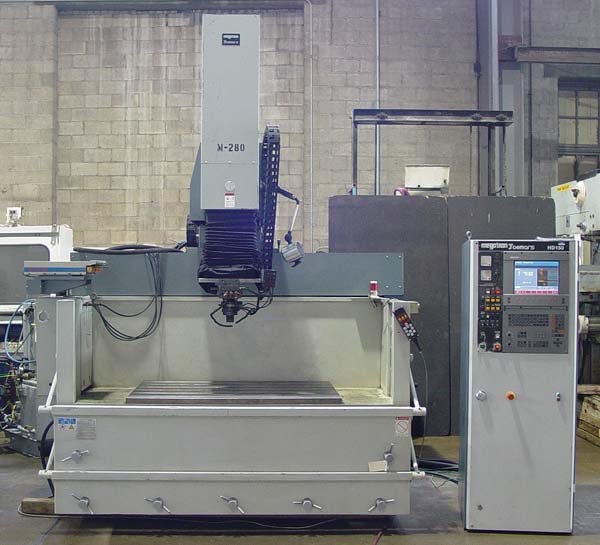

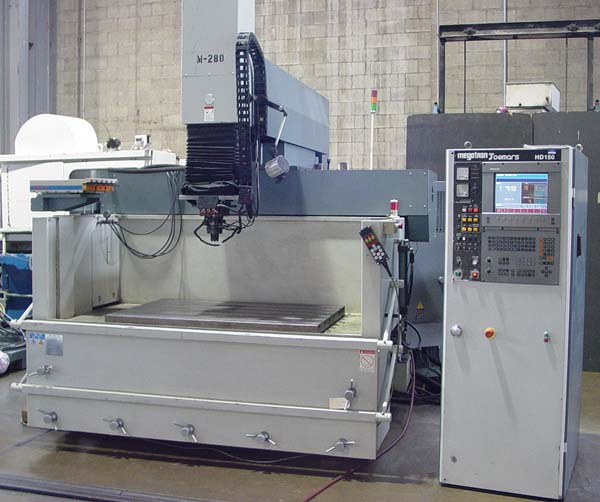

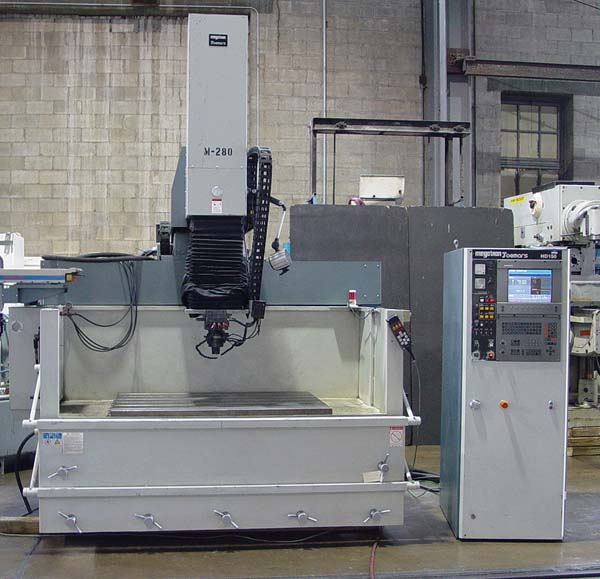

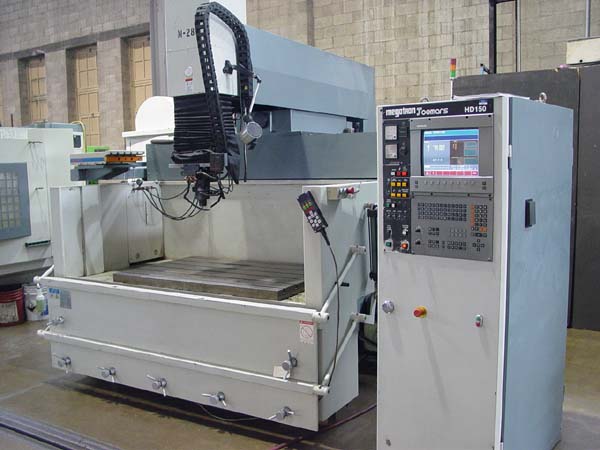

JOEMARS CNC VERTICAL SINKER EDM MACHINE
                      Model JM1570, S/N 0102852, New 2003
                                        Stock# K13791

EQUIPPED WITH:

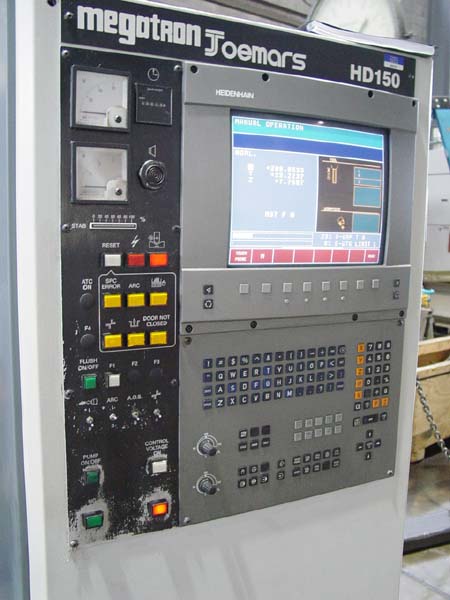

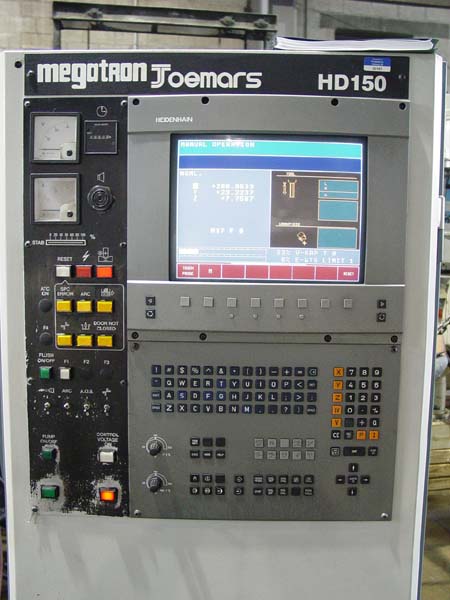

Heidenhain TNC 416 CNC Control, Hiedenhain Linear Feed Back Scales on

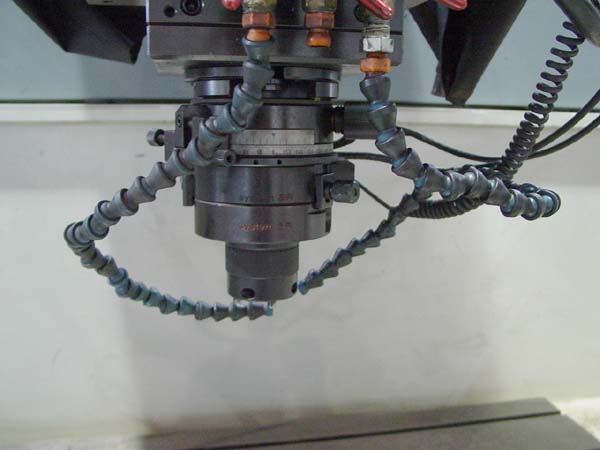

All Axis, Joemars 150 amp EDM Power Supply, 3R Tooling System with C

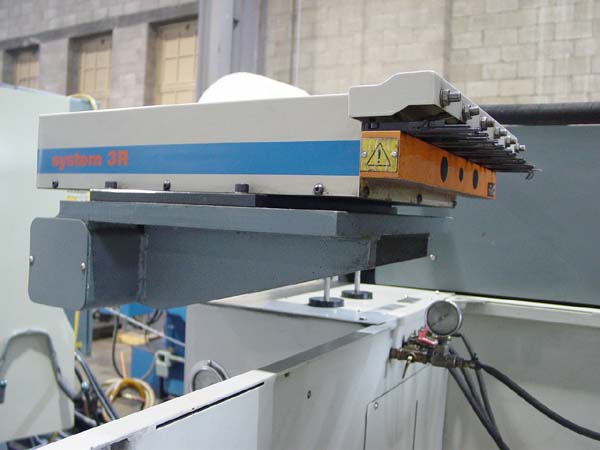

Axis, 3R Systems 6 Station Automatic Tool Changer, Twin Tank and Pump
System.



CATALOGUE SPECIFICATIONS:

Tank Size ........................................ 84" x 45" x 27"Deep

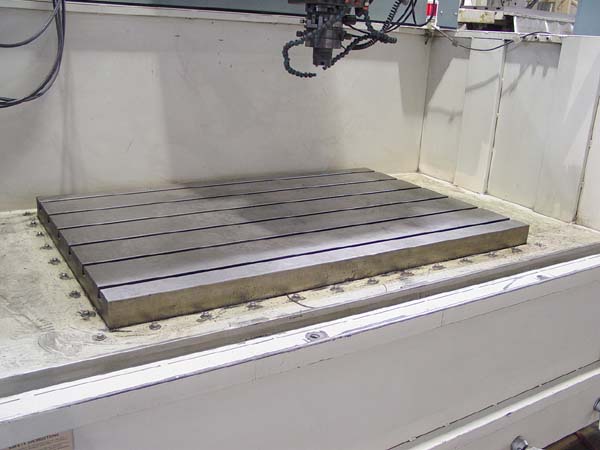

Table Surface..................................... 55" x 35.6"
Table Load Capacity............................... 9000 LBS
Longitudinal Travel (X-Axis)...................... 58.9"
Cross Travel (Y-Axis)............................. 26"
Vertical Travel (Z-Axis).......................... 21.6"
Rapid Traverse Rate (X and Y Axes)................ 490 IPM
Rapid Traverse Rate (Z Axis)...................... 245 IPM
Face to Table Surface............................. 20.4" - 42"
Tool Storage Capacity............................. 6
Electrics......................................... 220/480/3/60
Approximate Machine Dimensions.................... 136" x 106"
Approximate Machine Height........................ 128"
Approximate Machine Weight........................ 26,500 LBS



CONDITION: Machine Appears to be in Excellent Condition!
