Fanuc 21-T 32 Bit CNC Control w/ CRT, Hardinge 12' Hydraulic Bar Feeder, Part Catcher, Multiple Part Program
Storage,
Multi-Repetitive Canned Cycles, Manual Pulse Generator Handwheel,
Tailstock, 16c Collet Nose, Automatic Lubrication System,
Coolant System.
TOOLING PACKAGE INCLUDES:
(4) End working tool holders that will
accommodate a 1-1/4 dia. bushing or shank,(1)
End working tool holder that will accommodate 3 separate ? dia.
bushings or shanks, (1) End working tool holder that will accommodate
(1) ? dia. Bushing or shank,(8) Stick tool holders that will
accommodate ?? shank tools, (16) round collets ranging in size from
5/8 to 1-5/8, (8) hex collets ranging in size
from ? to 1-3/8, (2) bar feeder tubes and (9)nylon supports ranging in
size from 5/8 to 1-3/8
CATALOGUE SPECIFICATIONS:
Max Swing Over Bed...................................... 21"
Max OD Turning Capacity w/Standard Tooling.............. 8.25"
Max Machinable Center Distance.......................... 14"
Cross Travel (X-Axis)................................... 7.75"
Longitudinal Travel (Z-Axis)............................ 14"
Rapid Traverse Rate (X-Axis)............................ 400 IPM
Rapid Traverse Rate (Z-Axis)............................ 630 IPM

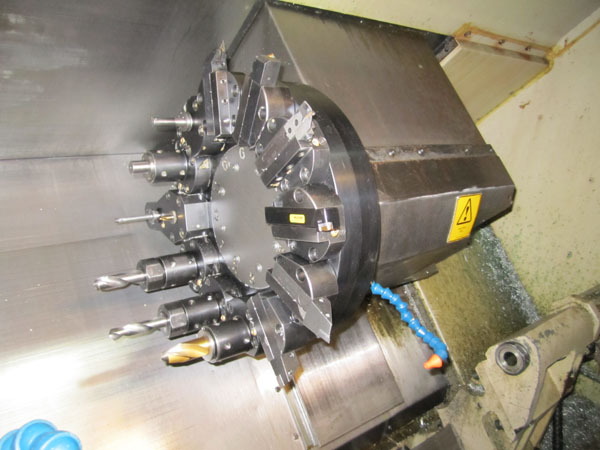

Number of Turrets....................................... 1
Tool Positions.......................................... 12
Spindle Bore............................................ 1.625"
Barstock Capacity Diameter.............................. 1.625"
Spindle Speed Range (1 RPM Increments).................. 50-5000 RPM
Spindle Horsepower...................................... 10 HP
Approximate Machine Dimensions.......................... 86" x 67"
Approximate Machine Height.............................. 70"
Approximate Machine Weight.............................. 6,000 LBS
