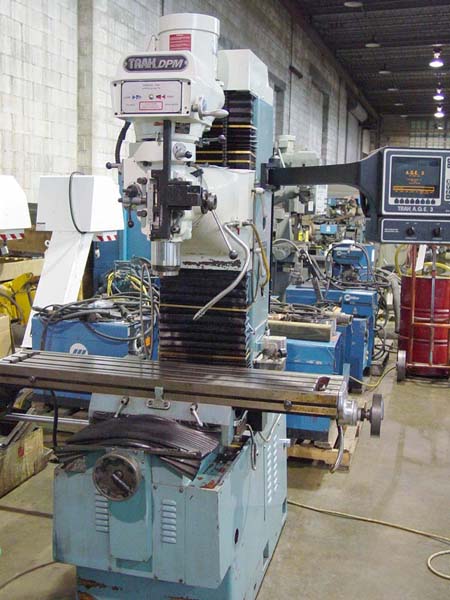

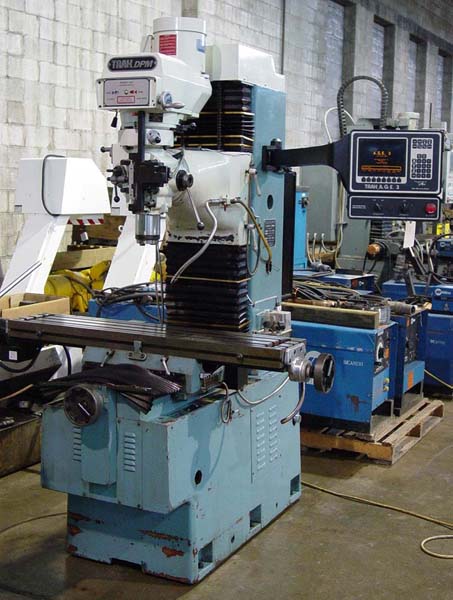

SOUTHWESTERN INDUSTRIES CNC BED TYPE VERTICAL MILLING MACHINE
Model DPM, New 1996, S/N 96-2527
Stock# K13803
EQUIPPED WITH:
Trak AGE-3 CNC Control, 3-Axis Control, (2)
3-1/2" Floppy Disk Drive, Coolant System.
CATALOGUE SPECIFICATIONS:
X Travel (Longitudinal)............................... 31"
Y Travel (Cross)....................................... 17"
Z Travel (Vertical)..................................... 23.5"
Table Working Surface............................. 50"x10"
Table Work Load Capacity....................... 1320 LBS
Spindle Horsepower................................. 3 HP
Spindle Speeds....................................... 70-4200 RPM
Spindle Taper.......................................... 40 Taper
Feed Rates,............................................ 0.1 to 200 IPM

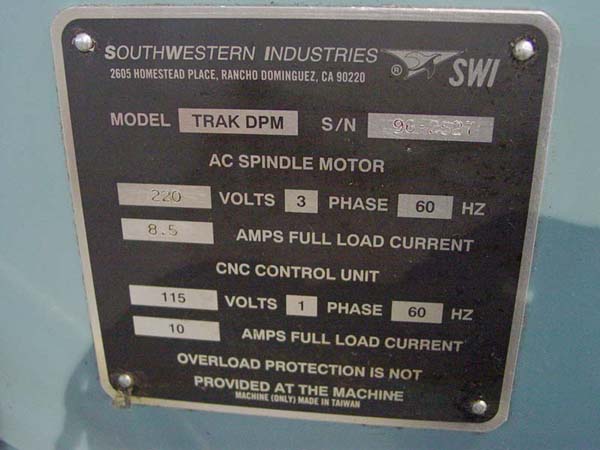

Electrics..................................................230/3/60
Approximate Dimensions.......................... 73" x 78"
Approximate Height.................................. 95"
Approximate Weight................................. 4400 LBS
CONDITION: Machine appears to be in Excellent Condition !
