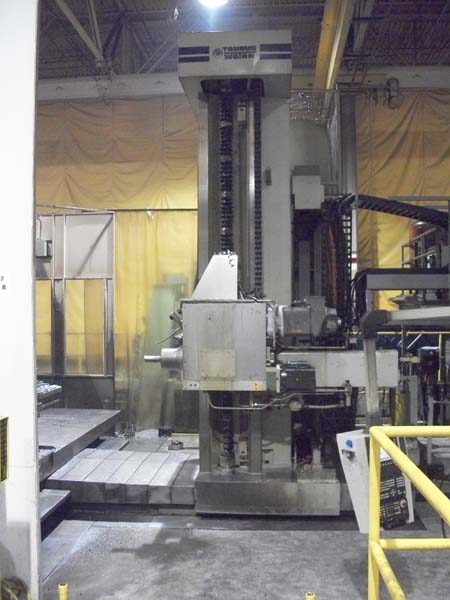

6" WOTAN 2-PALLET CNC TABLE TYPE HORIZONTAL BORING MILL
             Model Rapid 3R/25T, New 1990 Factory Rebuilt and Retrofit 2005
                                                  Stock# K13825



EQUIPPED WITH:

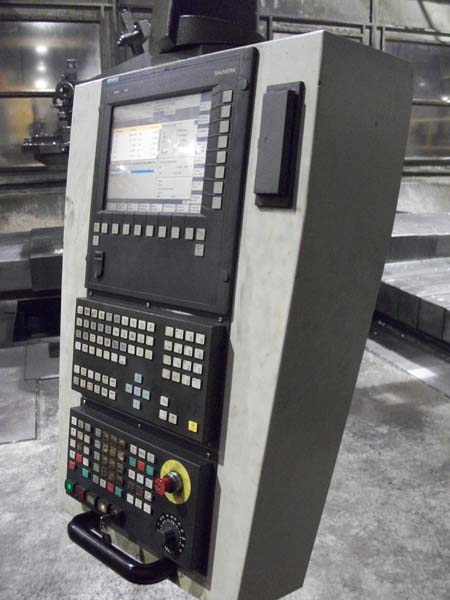

Siemens 840D CNC Control, 80 Station Automatic Tool Changer,

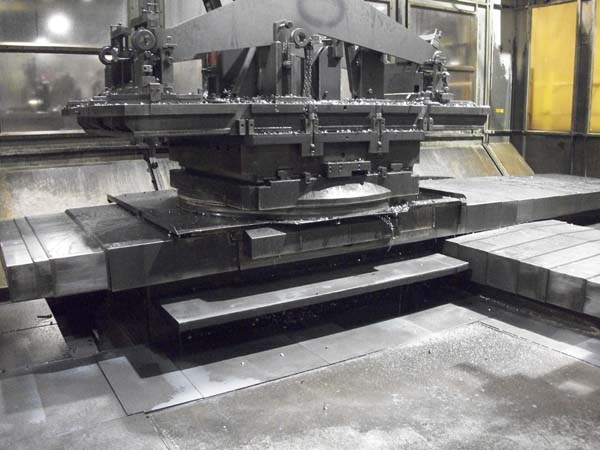

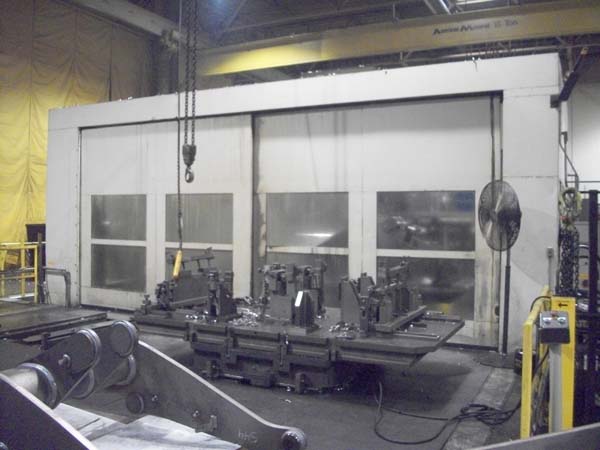

(2) 62.99" x 62.99" Pallets with 1 Degree Indexing  Pallet Rotation2, Heavy
Duty Cat-50 Spindle, (3) Gear Ranges, Thru-Spindle Coolant, High
Pressure Coolant System, Chip Conveyor.



CATALOGUE SPECIFICATIONS:

Spindle Diameter................................... 6.29"
Table Size......................................... 62.99" x 62.99"
Table Load Capacity................................ 50,000 LBS
Table Cross Travel (X-Axis)........................ 138"
Spindle-Head Vertical Travel (Y-Axis).............. 118"
Spindle (Quill) Travel (Z-Axis).................... 39.4"
Saddle Longitudinal Travel (W-Axis)................ 63"
Spindle Taper...................................... #50 CAT
Spindle Horsepower(30 min/cont).................... 85 HP
Spindle Speeds (Infinite in 4 ranges).............. 5 to 2000 RPM
Power Rapid Traverse (X & Y & W Axes).............. 471 IPM
Power Rapid Traverse ( Z Axes)..................... 236 IPM
Electrics.......................................... 460/3/50
Approximate Machine Dimensions..................... 295" x 475"
Approximate Machine Height......................... 236"
Approximate Machine Weight......................... 87,600 LBS



CONDITION:  Machine Appears to be in Excellent Condition ! !
