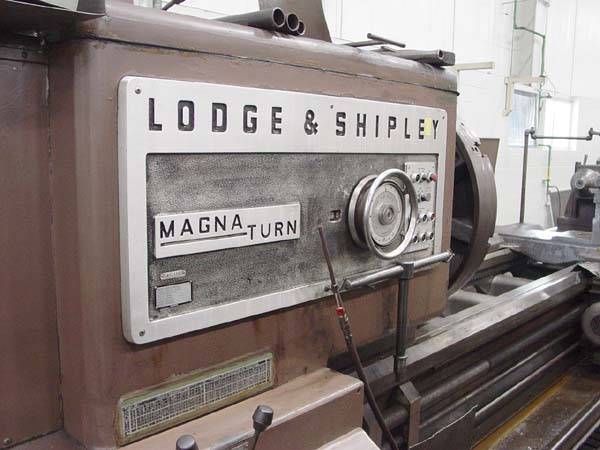

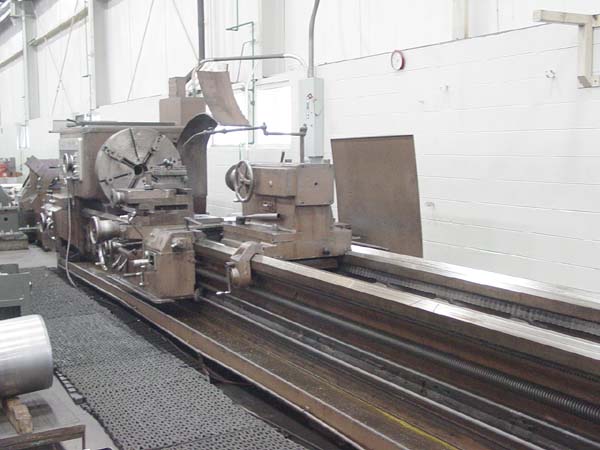

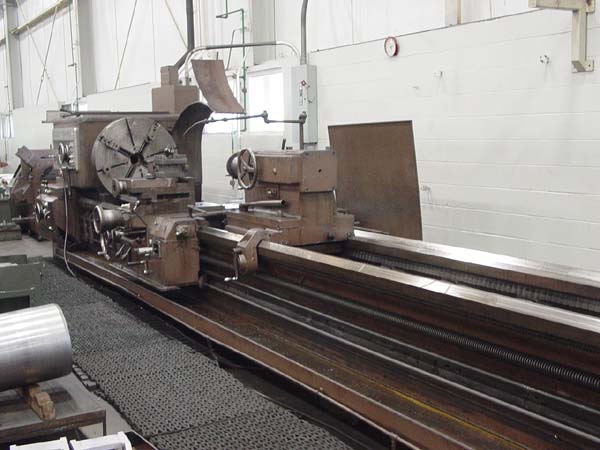

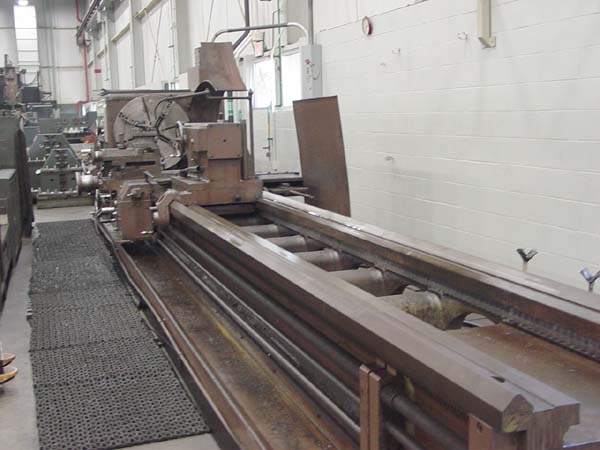

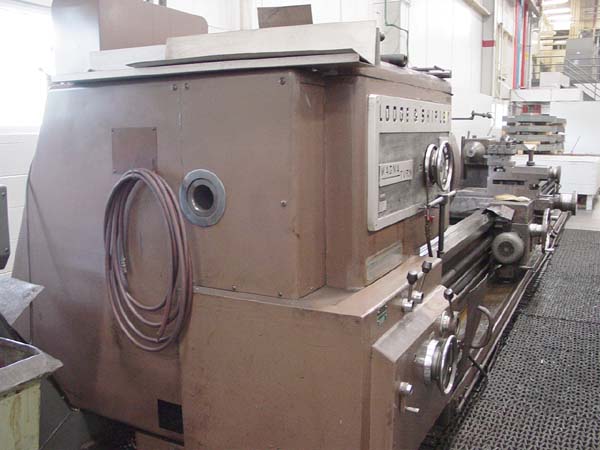

40" x 276" LODGE & SHIPLEY MAGNA TURN
HEAVY DUTY LATHE

Stock Number K13853

40" x 276" Lodge and Shipley Magna Turn Big Manual Engine Lathe roll lathe for sale

ACTUAL PHOTOS

   40-1/2" X 276" LODGE & SHIPLEY ENGINE / ROLL LATHE
                     New 1965, Model MAGNA TURN 4025
                                 Stock# K13853
EQUIPPED WITH:

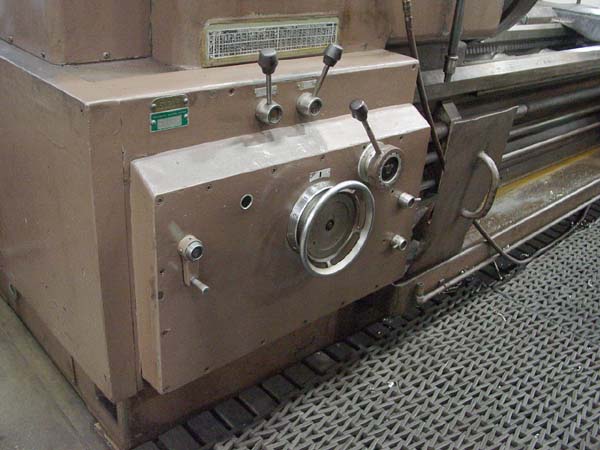

Hardened Steel Bed Ways, Heavy Duty Power Shifting Headstock,

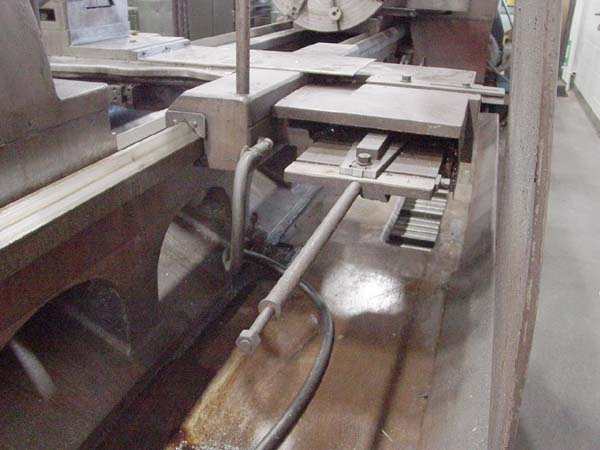

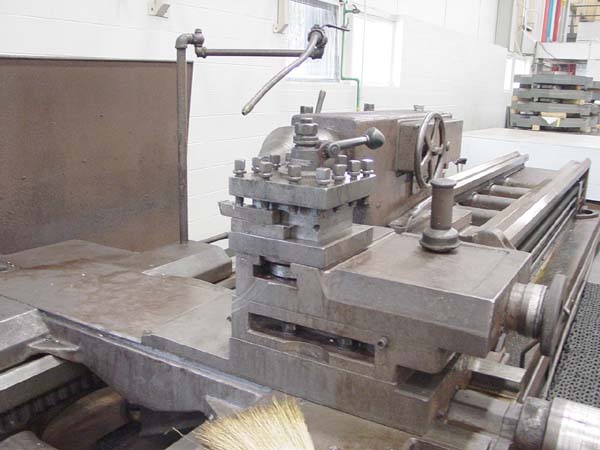

4 Directional Power Rapid Traverse, Compound Cross-Slide, 4 Position

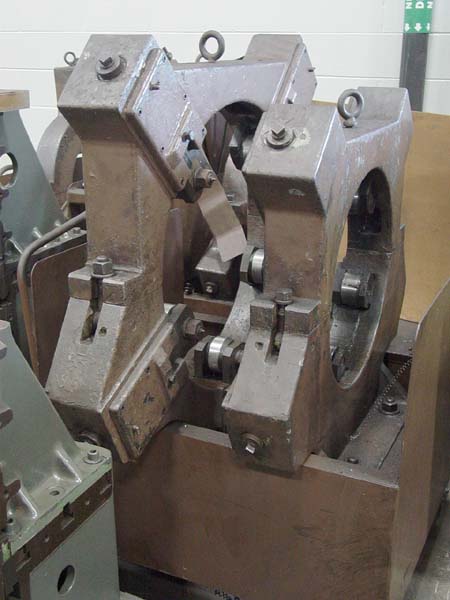

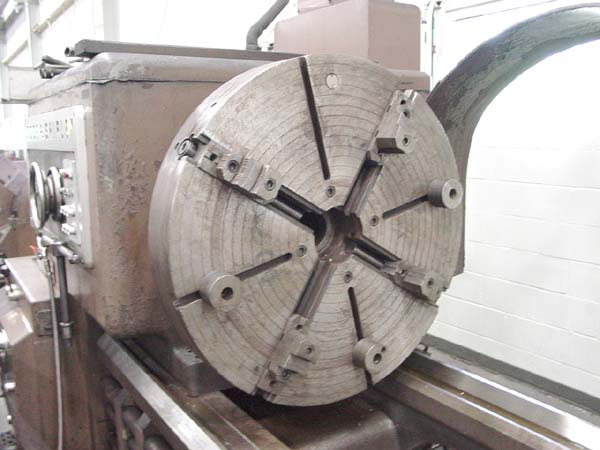

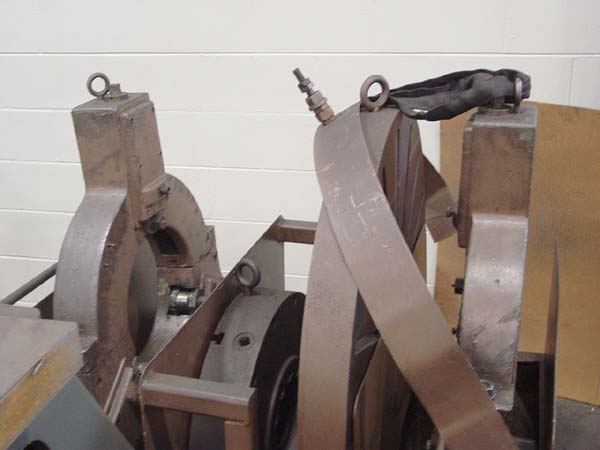

Tool Post, Threading, Taper Attachment, 36" 4-Jaw Chuck, (4) Steady
Rest, 36" Face Plate, 20" 3-Jaw Chuck, Full Length Coolant/Chip Pan,
Chip Conveyor.

CATALOGUE SPECIFICATIONS:

Max. Swing Over Bed Ways............................ 40-1/2"
Max. Swing Over the Cross Slide..................... 25-1/2"
Max. Distance Between Centers...................... 276"
Hole Thru Spindle........................................... 3-9/16"
(36) Spindle Speeds, Range............................ 5 to 650 RPM
Load Capacity Without Steady Rest................ 105,000 lbs
(55) Longitudinal Feeds.................................. .0037 to .24 IPR
Threading Leads, Range................................. 1/2" - 32 TPR
(36) Thread Changes, Range........................... .75 to 46 TPI
Electrics ...................................................... 440/3/60
Spindle ........................................................ 75 HP
Approximate Machine Dimensions ................. 378" x 58"
Approximate Machine Height ......................... 76"
Approximate Machine Weight (No Rest, No Chuck )...... 39,562 LBS

CONDITION: Machine Appears to be in Very Good Condition!
