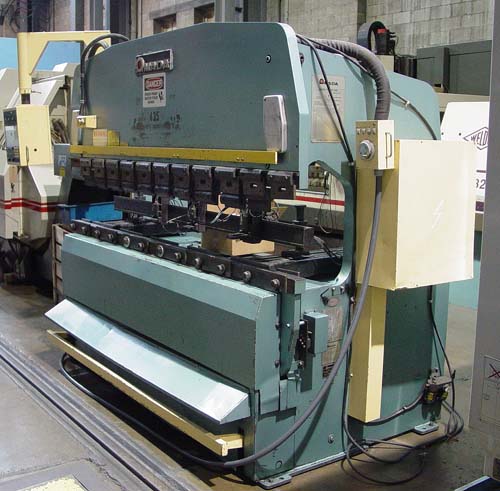

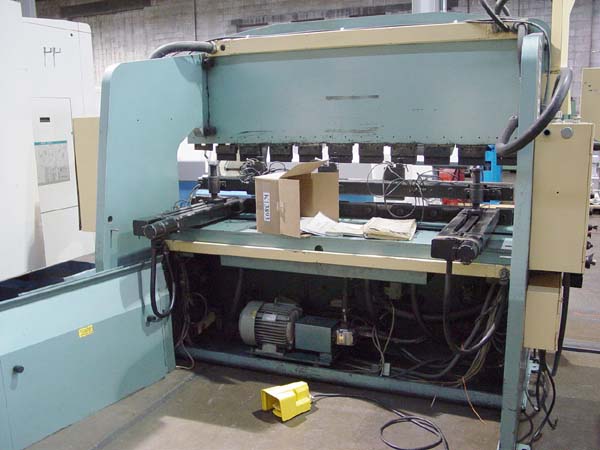

88TON X 96' AMADA HYDRAULIC PRESS BRAKE
           Model RG-80, S/N 50806749, New 1985
                             Stock # K13893

EQUIPPED WITH:

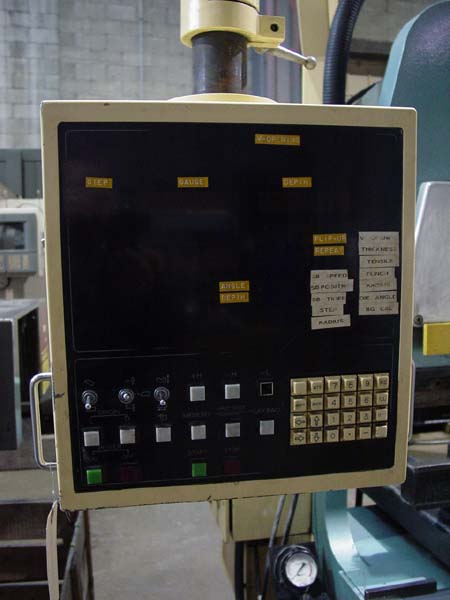

Amada NC9-EX CNC Control, Amada 2-Axis Backgauge, Adjustable Stroke,
Up Acting Style, Infinite Pressure Adjustment, Tooling

CATALOG SPECIFICATIONS:

Overall Length of Die Surface ........................ 96" (8')
Maximum Bending Length............................. 96" (8')
Distance Between Housings ......................... 80.8"
Tonnage Capacity:........................................ 88 Ton
Throat Depth................................................ 15.75"
Shut Height w/o Bolster................................. 10.64"
Length of Stroke (Adjustable)......................... 3.94"
Open Height................................................. 14.58"
Pressing Speed ........................................... 200 IPM
Drive Motor................................................... 7.5 HP
Approximate Machine Dimensions................. 82" x 60"
Approximate Machine Height......................... 82"
Approximate Machine Weight........................ 11,200 Lbs



CONDITION: Machine Appears to be in Excellent Condition!!
