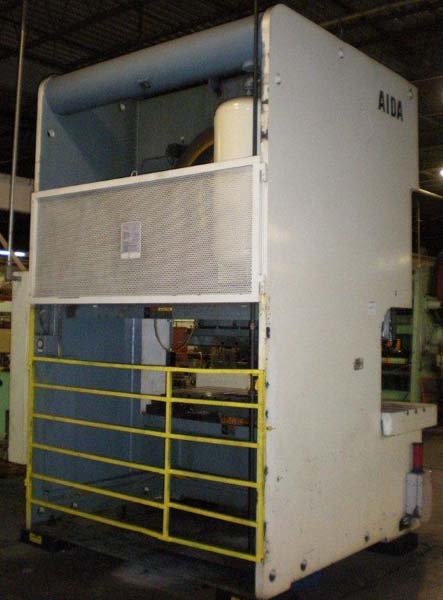

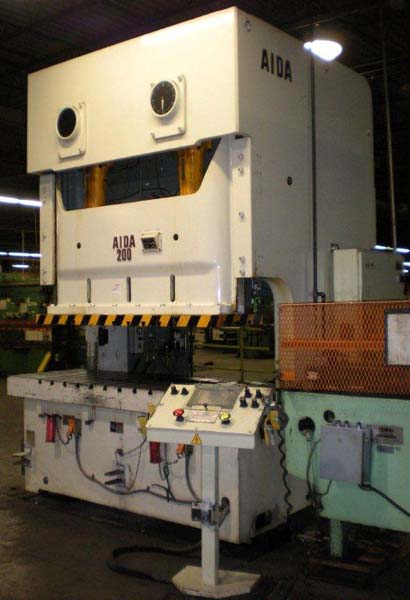

220 Ton AIDA NC2-200(2) GAP FRAME DOUBLE CRANK PRESS
Model NC2-200 (2), New 2000, Stock# K13907

EQUIPPED WITH
30 HP Motor
Pedestal Mounted Controls w/Allen Bradley PLC
Air Clutch and Brake
Air Counterbalances
Hydraulic Overload
Power Ram Adjustment

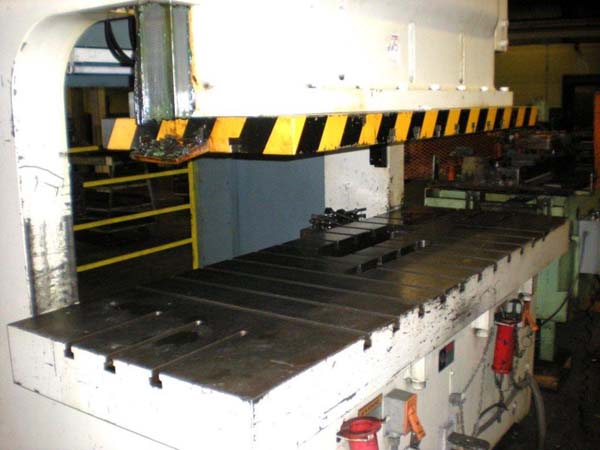

T-Slotted Ram and Bolster

GENERAL SPECIFICATIONS
Capacity: 220 U.S.............. Tons
Stroke: ...............9.84"
Die Height Over Bolster:.......... 19.69"
Slide Adjustment.........: 4.33"
Strokes Per Minute:............... 25-45
Slide Area:............. 72.8" L-R x 25.6" F-B
Bolster Area:...................... 95.3" L-R x 33.1" F-B
Required Air Pressure:................. 73 PSI
Approximate Weight................: 60,000 Lbs.
