6' x 19", CARLTON, 4A, 15-1500 RPM, 6 M.T., Power Clamp & Elevation, 25 HP, 1967, Clean

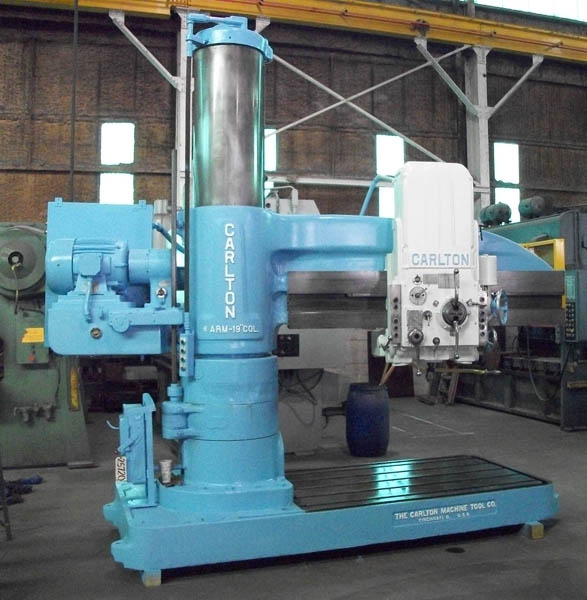

CARLTON RADIAL DRILL

SERIAL NUMBER: 4A-4918
MODEL: 4A

GENERAL SPECIFICATIONS

LENGTH OF ARM: 72"

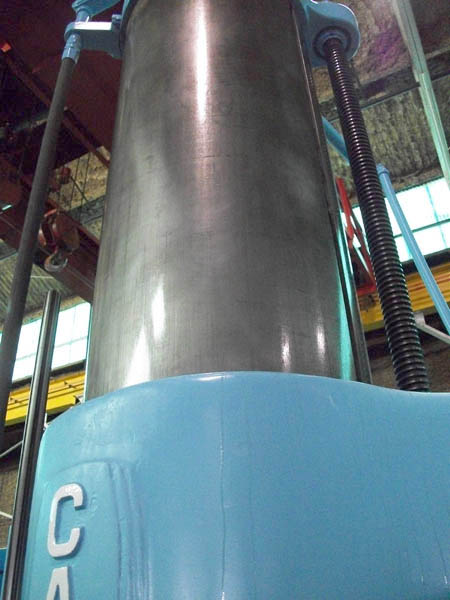

DIAMETER OF COLUMN: 19"
WORKING SURFACE OF BASE: 77" X 50"
SPINDLE SPEEDS: (36) 15 TO 1500 RPM
FEEDS:(18) .004 TO .125 IPR
THREADS: 8, 11-1/2, 14, 18 TPI
SPINDLE TRAVEL: 20"
DIAMETER OF SPINDLE: 4"
TAPER IN SPINDLE: No. 6 M.T.
DISTANCE SPINDLE TO COLUMN: 13-1/4" MINIMUM TO 72" MAXIMUM
TRAVEL ARM ON COLUMN: 46"
TRAVEL HEAD ON ARM: 59"

EQUIPPED WITH

25 HP MOTOR
POWER CLAMPING
POWER ELEVATION
POWER HEAD TRAVERSE
COOLANT

Approximate Weight: 30,000 Lbs.


CONDITION:  Appears To Be In Very Good Condition.
