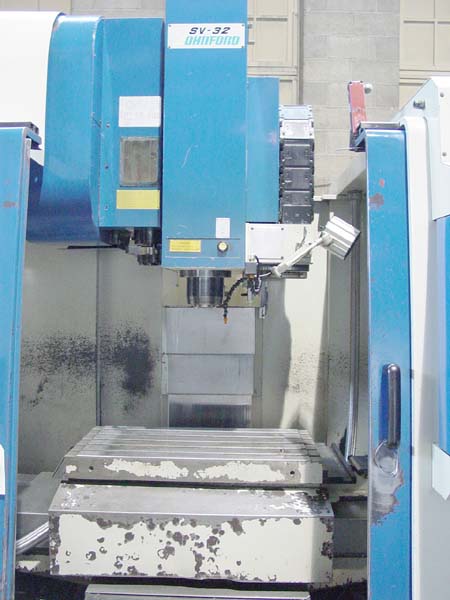

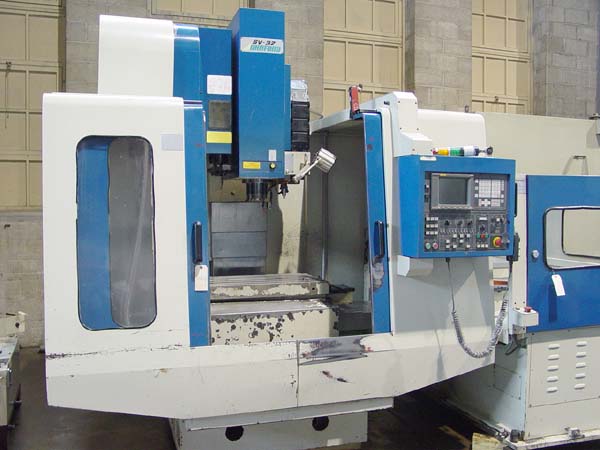

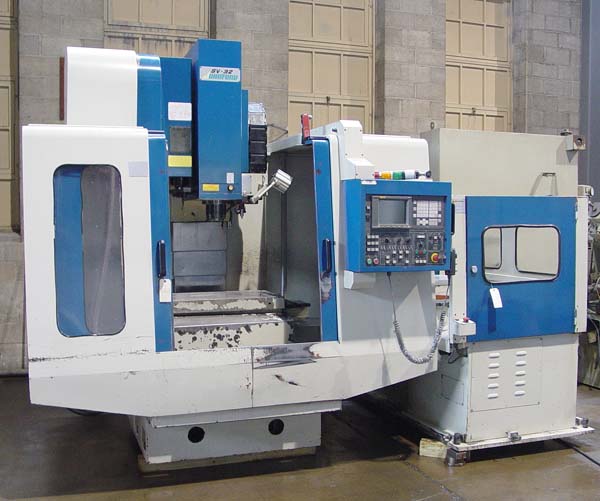

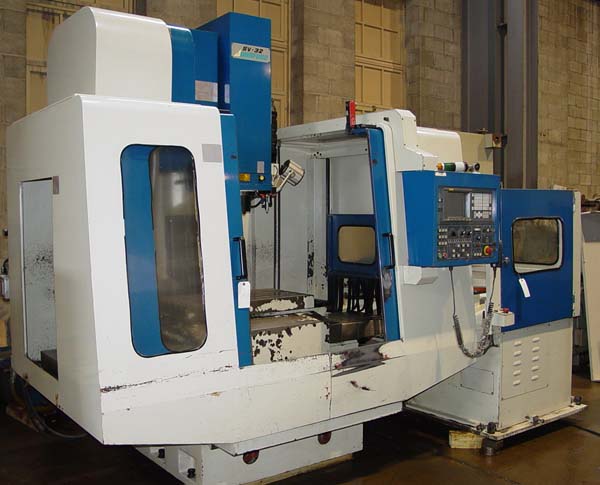

JOHNFORD SV-32 APC (2) PALLET VERTICAL MACHINING CENTER
                       Model SV-32 APC, New 2001, Stock# K13960



EQUIPPED WITH:

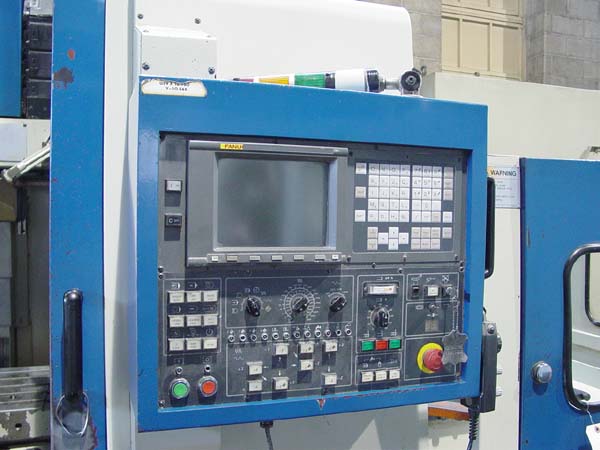

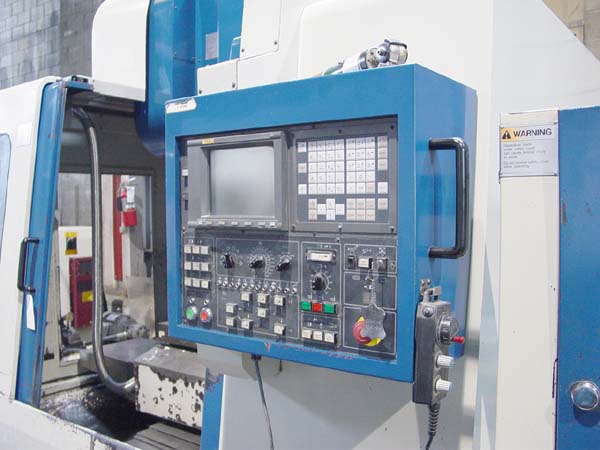

Fanuc 18M CNC Control w/CRT, RS-232 Port, Inch or Metric Programming,

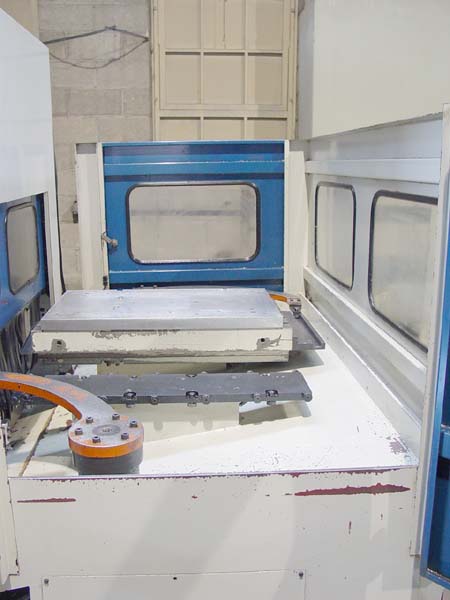

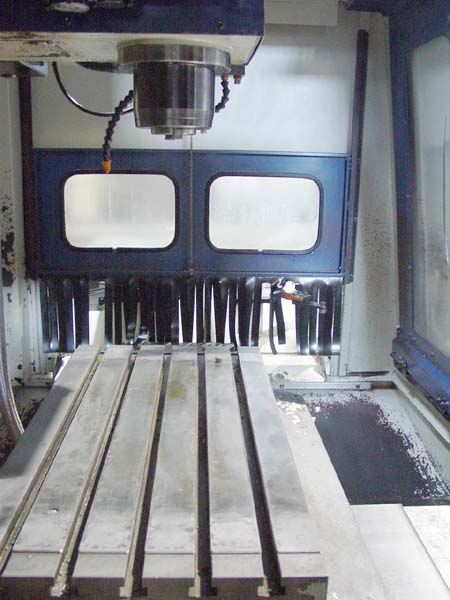

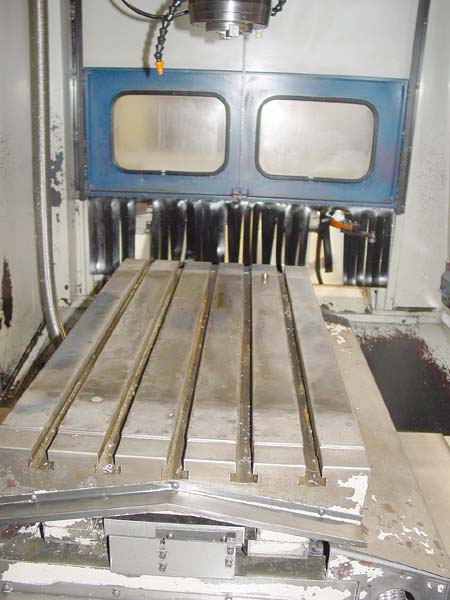

Rigid Tapping, Heavy Duty Box Ways, (2) 38" x 17.7" Pallets with

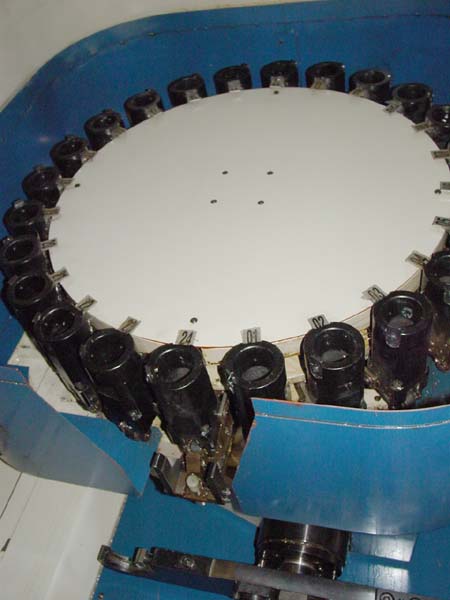

Automatic Pallet Shuttle, 24 Station Automatic Tool Changer, Flood
Coolant System With Full Chip-Splash Enclosure.



CATALOGUE SPECIFICATIONS:

Table Working Surface............................. 17.7" x 38"
Table Load Capacity............................... 1,700 LBS
Longitudinal Travel (X-Axis)...................... 31.5"
Cross Travel (Y-Axis)............................. 20"
Vertical Travel (Z-Axis).......................... 24"
Maximum Clearance Table Top to Spindle Nose....... 28"
Rapid Traverse Rate, X & Y  Axes.................. 1181 IPM
Rapid Traverse Z-Axis............................. 787 IPM
Tool Storage Capacity............................. 24
Spindle Horsepower................................ 15 HP
Spindle Speeds Range.............................. 0-8000 RPM
Spindle Taper..................................... No. 40 CAT (V-Flange)
Electrics......................................... 220/3/60
Approximate Machine Dimensions.................... 138" x 88"
Approximate Machine Height........................ 105"
Approximate Machine Weight........................ 12,000 LBS



CONDITION: Appears to be in Excellent Condition !
