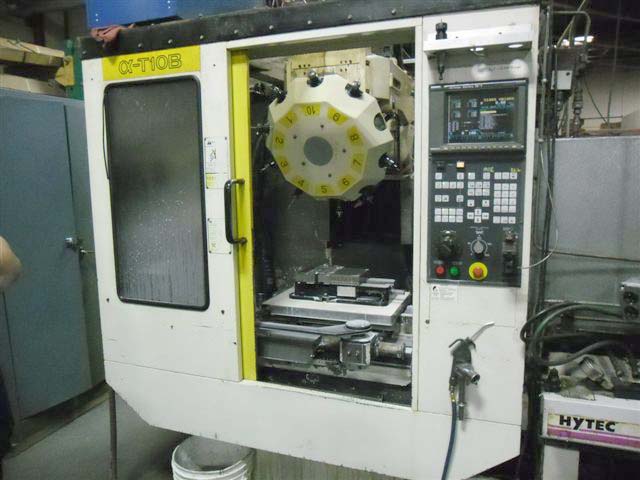

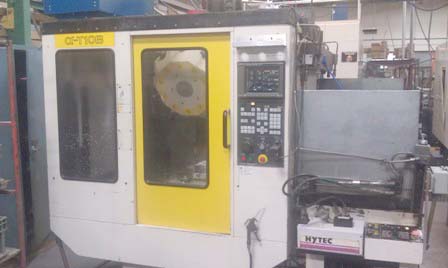

FANUC a-T10B 4-Axis (2) PALLET VERTICAL DRILL and TAP CENTER
                  Model alfa-T10B, New 1995, Stock# K13961



EQUIPPED WITH:

Fanuc 16M CNC Control, 8" NSK Rotary Table Mounted on the Front Pallet,
RS-232 Port, Inch or Metric Programming, Renishaw MP12 Tool Probe,
Helical Interpolation, Extended Work Offsets, Extended Tool Offsets,

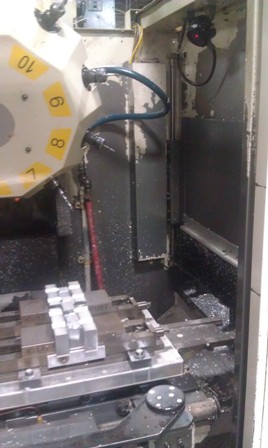

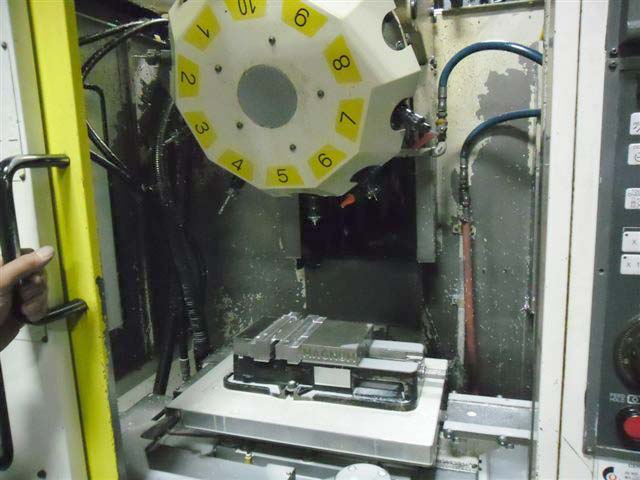

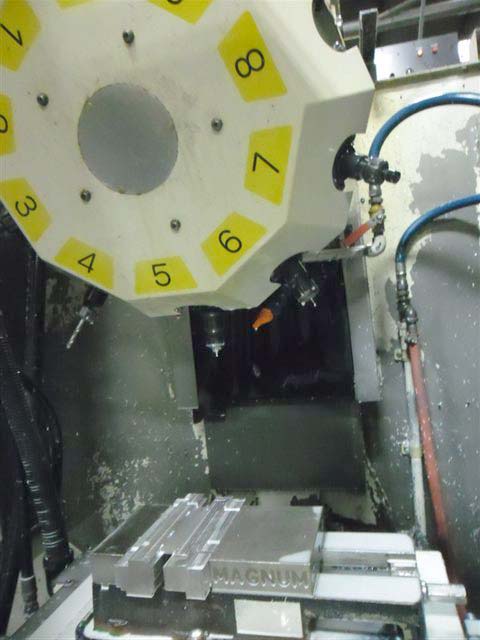

Extended Macro Variables, Marco B, Quadrate Rotation, 10 Position

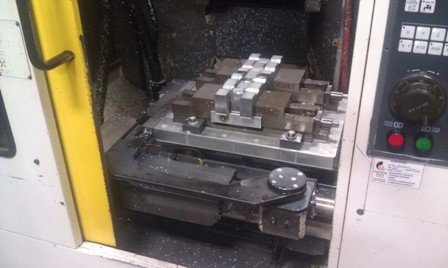

Turret,(2) Pallets with Automatic Pallet Shuttle, Extra Pallet, Hytec

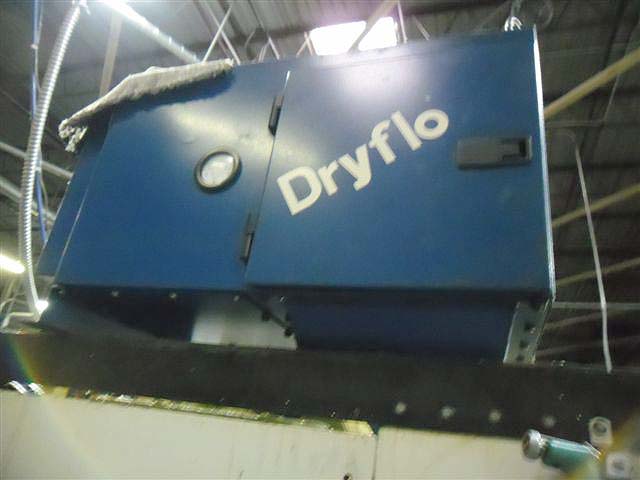

Hydraulic Part Clamping Unit, Donaldson Mist Collector. Coolant System
With Full Chip-Splash Enclosure.

CATALOGUE SPECIFICATIONS:

Table Working Surface (2)......................... 14.56" x 25.69"
Table Load Capacity............................... 330 LBS
Longitudinal Travel (X-Axis)...................... 20"
Cross Travel (Y-Axis)............................. 15"
Vertical Travel (Z-Axis).......................... 12"
Maximum Clearance Table Top to Spindle Nose.......     "
Rapid Traverse Rate, ............................. 1417 IPM
Tool Storage Capacity............................. 10
Spindle Horsepower................................ 7.5 HP
Spindle Speeds Range.............................. 0-8000 RPM
Spindle Taper..................................... No. 30 BT
Electrics......................................... 220/3/60
Approximate Machine Dimensions.................... 62" x 88"
Approximate Machine Height........................ 98"
Approximate Machine Weight........................ 5,000 LBS



CONDITION: Appears to be in Excellent Condition !
