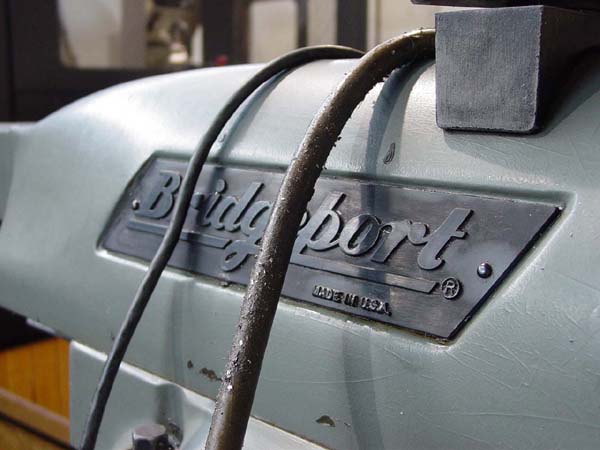

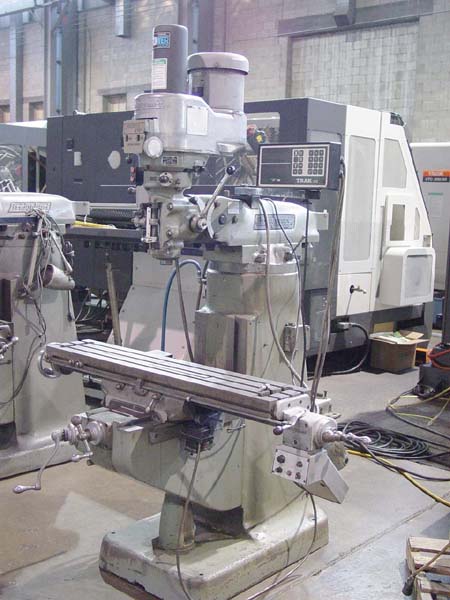

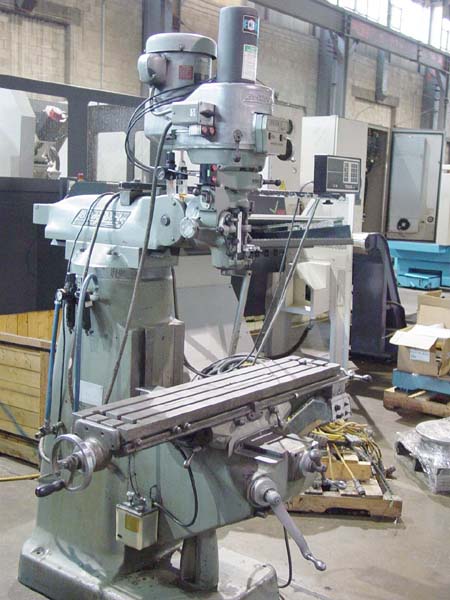

BRIDGEPORT SERIES I VERTICAL MILL
New 1983, S/N 233023, Stock # K13963
EQUIPPED WITH:

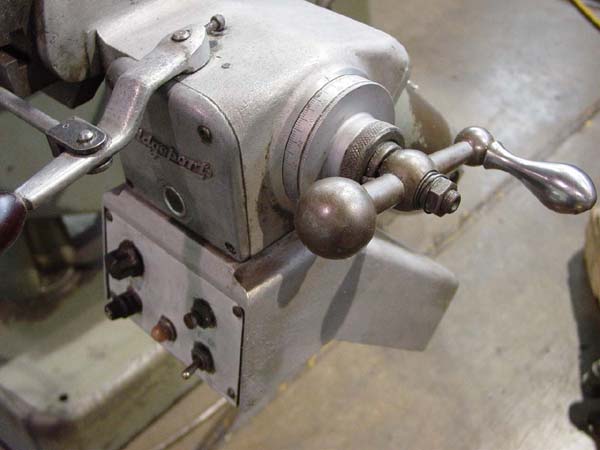

Trak 2-Axis DRO, Bridgeport Power Feed Unit on X-Axis, 2 HP Variable
Speed Head, Kurt Power Draw Bar, Knee Lock, Swivel Type Overarm,
One Shot Lube System.
SPECIFICATIONS:
Table Dimensions (Overall, W x L)......................... 9" x 42"
Table Working Surface, W X L.............................. 9" x 42"
Longitudinal Table Travel (X-Axis)........................ 30"
Cross Saddle Travel (Y-Axis).............................. 12"
Vertical Knee Travel (W-Axis)............................. 16"
Vertical Head Travel (Z-Axis)............................. 5"
Spindle Taper............................................. R-8
Spindle Speeds............................................ 80-4200
RPM
Quill Feeds............................................... Inch/Rev
.0015/.003/.006
Motor (Spindle)........................................... 2 HP
Electrics.................................................
220/440/3/60
Approximate Machine Dimensions............................ 60" x 66"
Approximate Machine Height................................ 78"
Approximate Machine Weight................................ 2200 lbs.
Condition: Machine Appears to be in Very Good Condition !!
