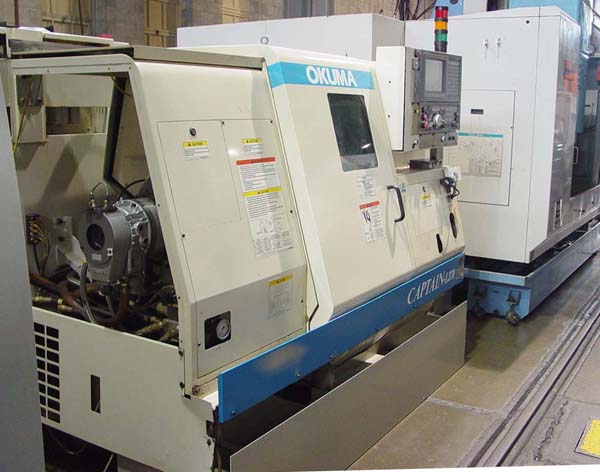

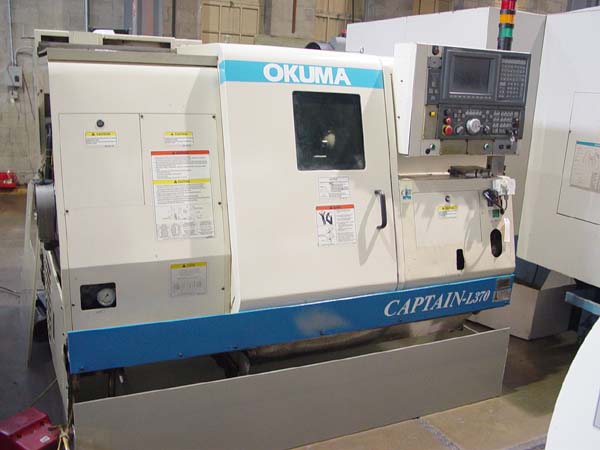

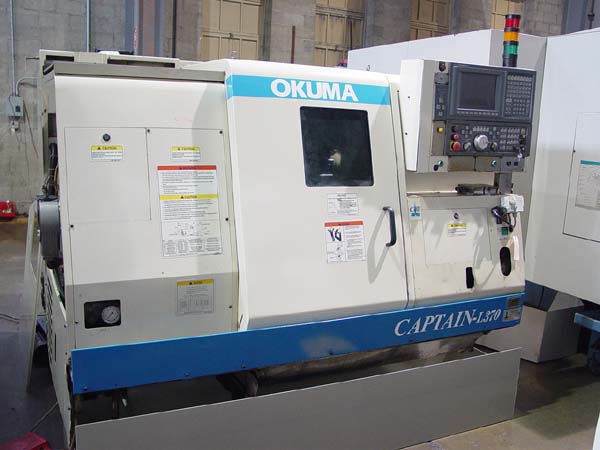

OKUMA CAPTAIN "Big Bore" L-370 CNC TURNING CENTER
             Model 780-BB, S/N 0178, New 2001, Stock# K13971




EQUIPPED WITH:

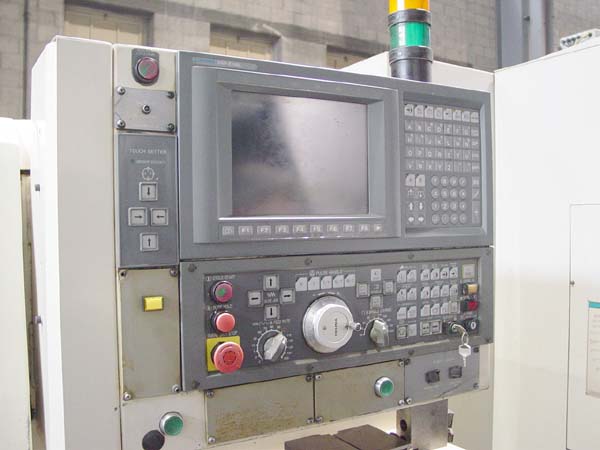

Okuma E100L CNC Control w/CRT, 3.15" Big Bore Spindle Bore Option,

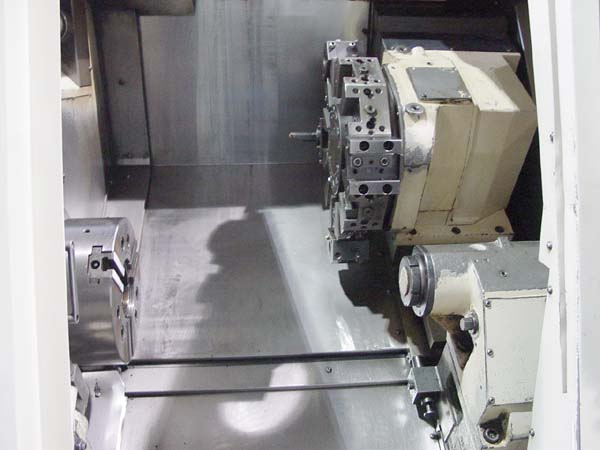

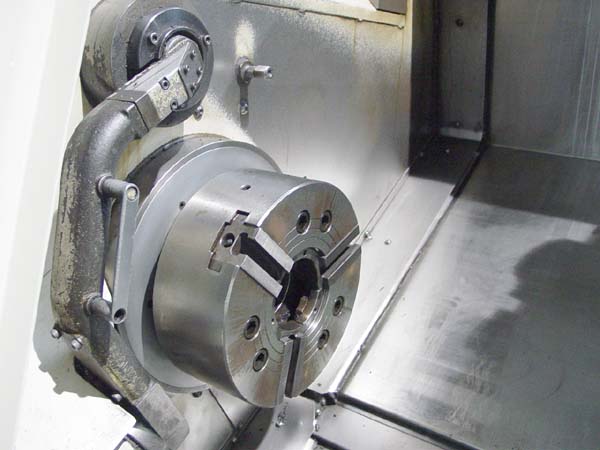

Touch Setter, 10" 3-Jaw Kitagawa B210 Chuck, Hi-G Control, NC Torque
Limit, Lap-4, Auto Chamfer, 3D Animation, Tool Life Management, Tool
Wear Comp, Spindle Orient, Cycle Time Monitor and Reduction, Auto Door,

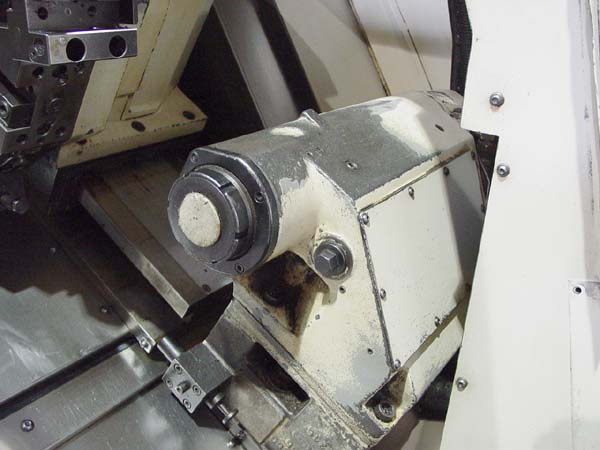

Robot or Barfeed Interface I/F D, Circular Interpolation, Bed
Mounted Programmable Tailstock, Auto Backlash Compensation, Coolant
System, and Chip Conveyor.


CATALOGUE SPECIFICATIONS:
Max Swing Over Bed...................................... 20.08"
Maximum Turning Diameter................................ 14.56"
Maximum Turning Length.................................. 20.47"
Chuck Size.............................................. 10"
Cross Travel (X-Axis)................................... 10.23"
Longitudinal Travel (Z-Axis)............................ 20.47"
Feed Range (Infinitely Variable)........................ .1-400 IPM
Rapid Traverse Rate (X-Axis)............................ 787 IPM
Rapid Traverse Rate (Y-Axis)............................ 984 IPM

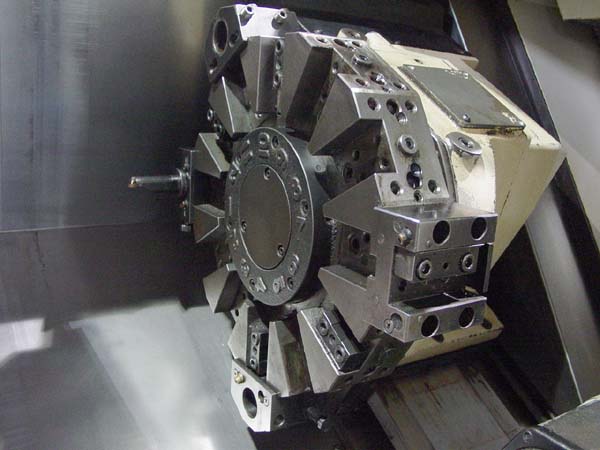

Number of Turrets....................................... 1
Tool Positions.......................................... 12 Total
Spindle Bore............................................ 3.15"
Spindle Nose............................................ A2-8
Spindle Speed Range (1 RPM Increments).................. 75-3800 RPM
Spindle Horsepower...................................... 20 HP
Approximate Machine Dimensions.......................... 104" x 73"
Approximate Machine Height.............................. 69"
Approximate Machine Weight.............................. 9,000 LBS


CONDITION: Machine Appears to be in Excellent Condition !!
