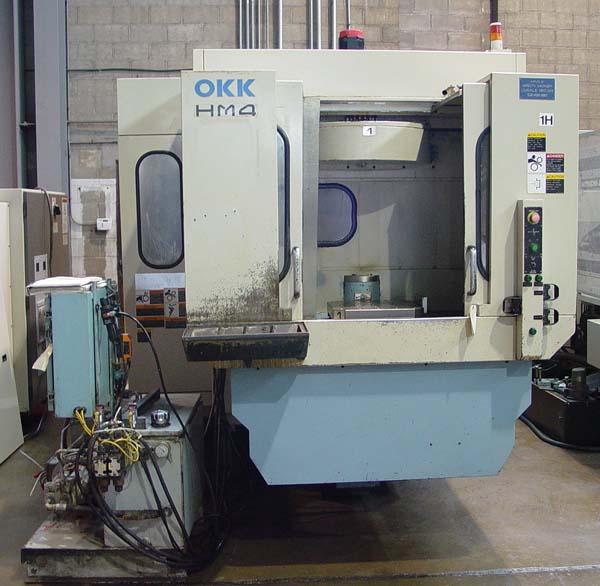

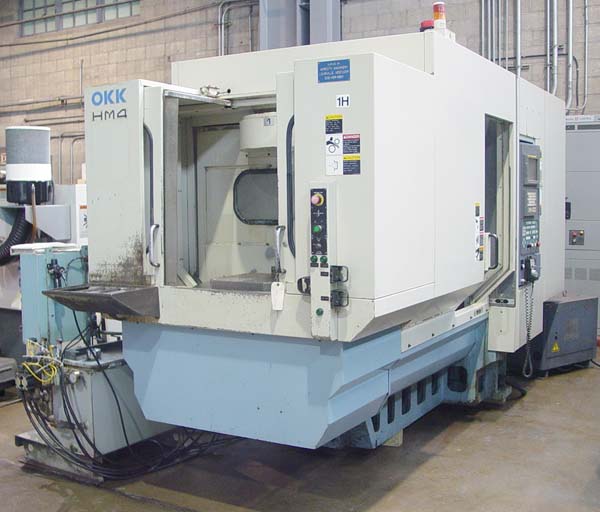

OKK HM-4 CNC HORIZONTAL MACHINING CENTER
                       Model HM-4, S/N 216, New 2002
                               Stock # K13983



EQUIPPED WITH:

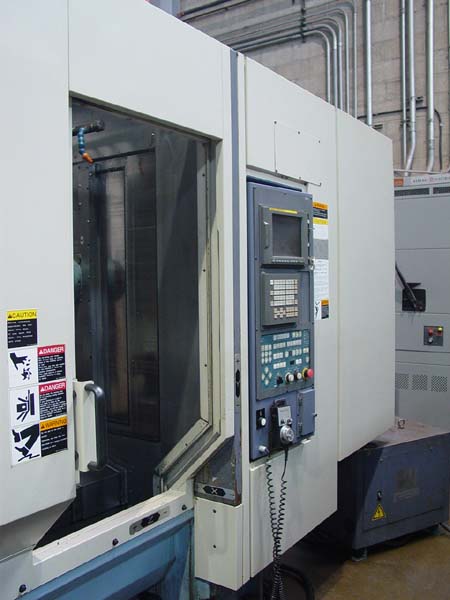

Fanuc 21IM CNC Control w/ 14" Color CRT, Rigid Tapping, Helical

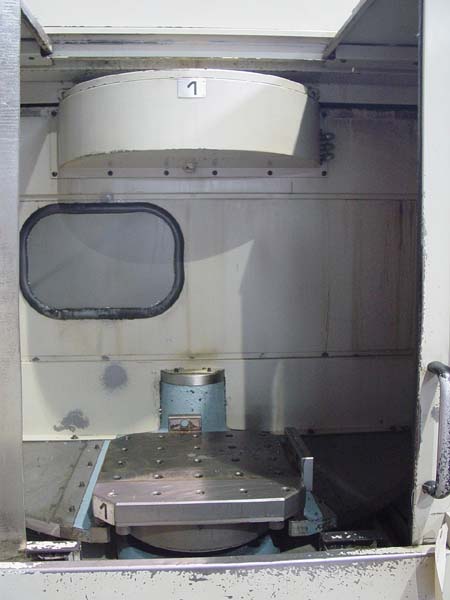

Interpolation, Custom Macro B, Two 15.7" x 15.7" Pallets with 1 Degree
Indexing Pallet Rotation,  40 Position Automatic Tool Changer, RS-232
Port, Full Coolant Enclosure, Thru Spindle Coolant, Chip Conveyor and
High Pressure Coolant System System.



CATALOGUE SPECIFICATIONS:



Longitudinal Travel (X-Axis) ........................... 22"
Vertical Travel (Y-Axis) ............................... 20"
Spindle Travel (Z-Axis) ................................ 22"
Pallet Dimensions ...................................... 15.7"x 15.7"
Maximum Pallet Load .................................... 3000 LBS
Number of Pallets ...................................... 2
Number of Index Positions............................... 360
Feed Rate, All Axes .................................... .04-1575 IPM
Rapid Traverse, All Axes ............................... 1575 IPM
Spindle Horsepower...................................... 30 HP
Spindle Speed Range..................................... 30-10,000 RPM
Spindle Taper .......................................... #40 CAT
Number of Tool Stations ................................ 40
Electrics............................................... 220/3/60
Approximate Floorspace Dimensions ...................... 140" x 97"
Approximate Machine Height ............................. 113"
Approximate Machine Weight ............................. 18,000 LBS



CONDITION: Machine Appears to be in Excellent Condition!
