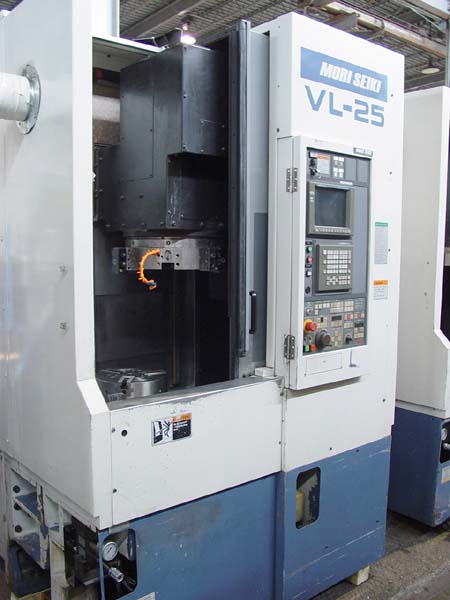

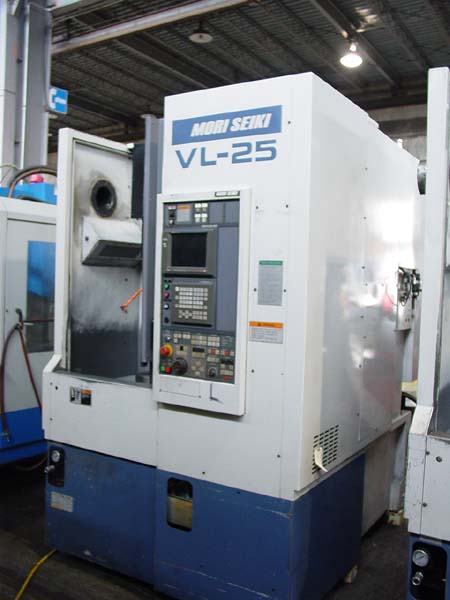

MORI SEIKI VL-25 CNC VERTICAL TURNING CENTER
                     Model VL-25A, S/N 74, New 1998
                     Stock # K13988



EQUIPPED WITH:

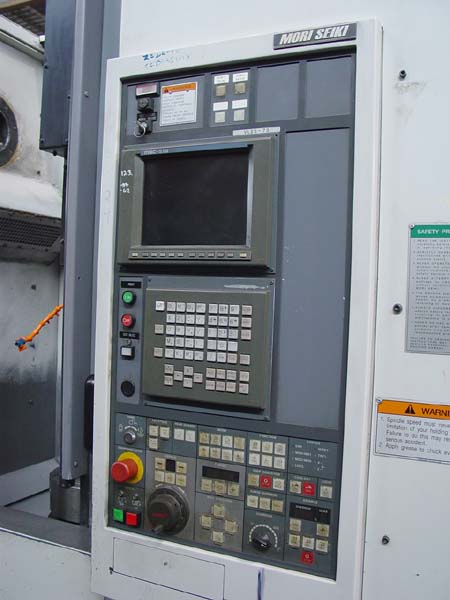

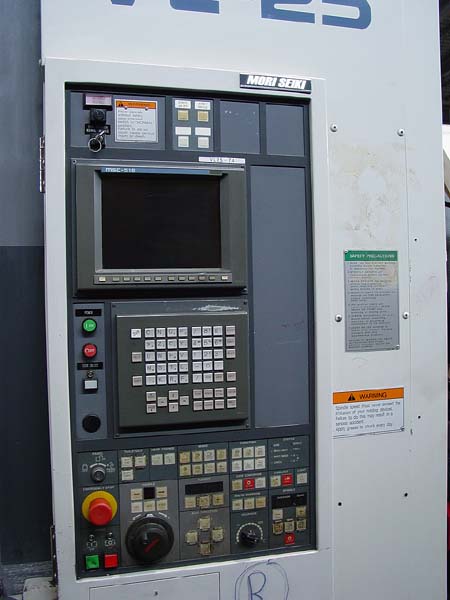

Mori Seiki MSC-518 ( Fanuc 16 ) CNC Control, Multiple Part Program

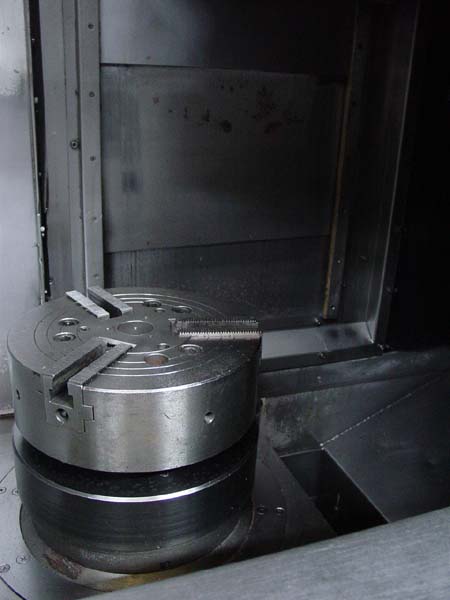

Storage, RS-232 Port, 10" 3-Jaw Power Chuck, 8 Position Turret,

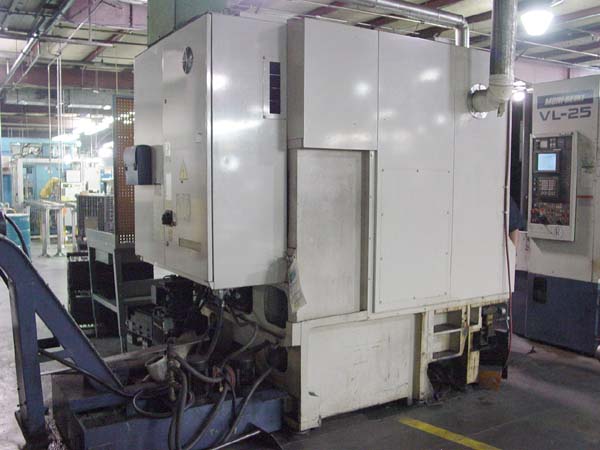

Power Automatic Door, Work Light, Coolant System and Chip Conveyor.

CATALOGUE SPECIFICATIONS:

Max Swing............................................... 23"
Max Turning Diameter.................................... 17.7"
Chuck Size.............................................. 10"
Max Turning Length...................................... 18.2"
Cross Travel (X-Axis)................................... 10"
Vertical Turret Travel (Z-Axis)......................... 18.5"
Rapid Traverse Rates.................................... 710 IPM
Number of Turrets....................................... 1
Tool Positions.......................................... 8 Total
Spindle Nose............................................ A2-6
Spindle Speed Range (Maximum)........................... 3000 RPM
Spindle Horsepower...................................... 25 HP
Approximate Dimension With Conveyor..................... 73" x 126"
Approximate Height...................................... 110"
Approximate Machine Weight.............................. 16,500 LBS



CONDITION:  Machine Appears to be in Excellent Condition!

(2) Machines Available
