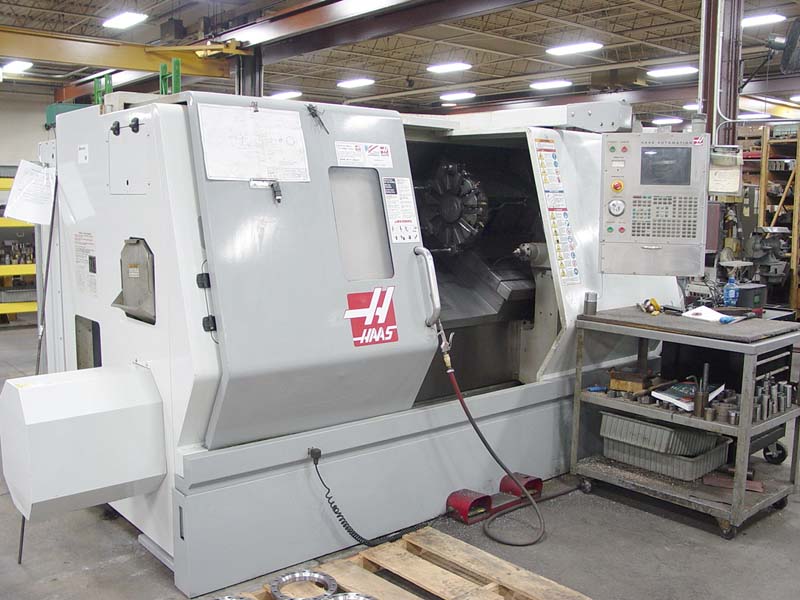

HAAS SL-30T CNC TURNING CENTER

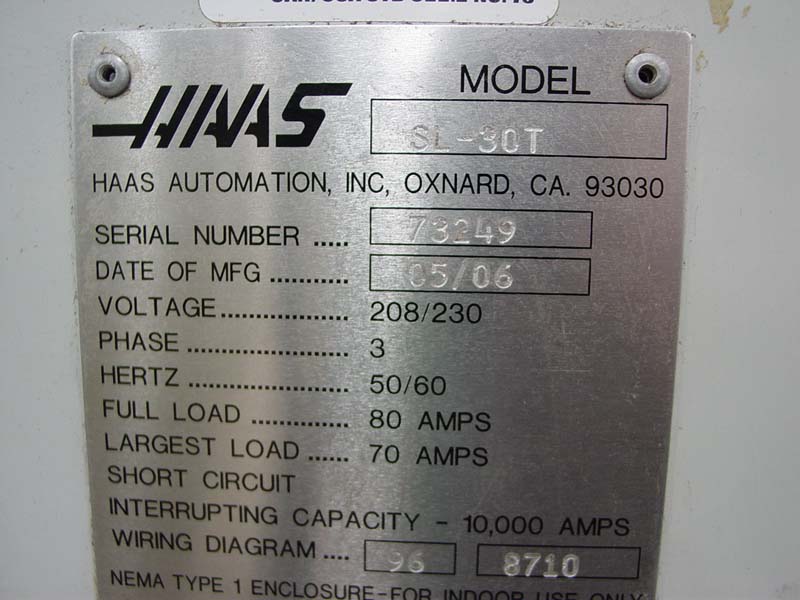

      Model SL-30T, S/N 73249, New 5/2006
                        Stock # K13990



EQUIPPED WITH:

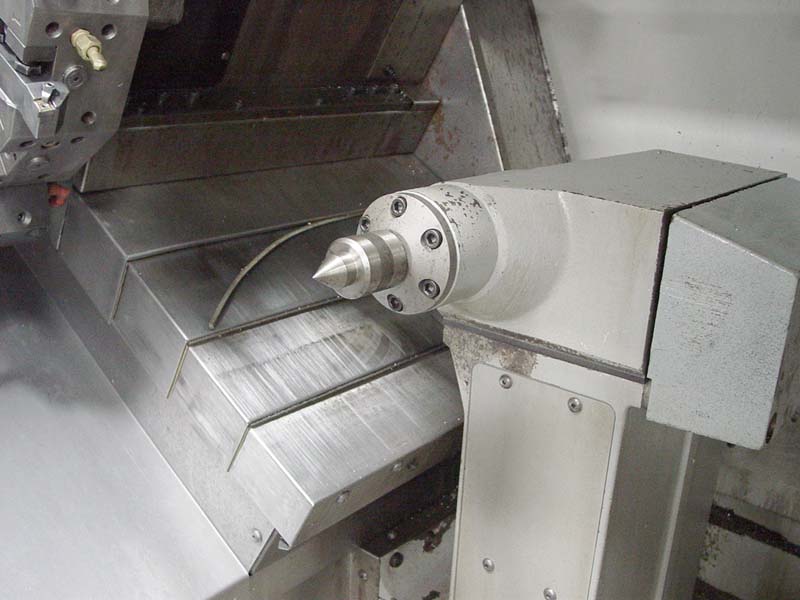

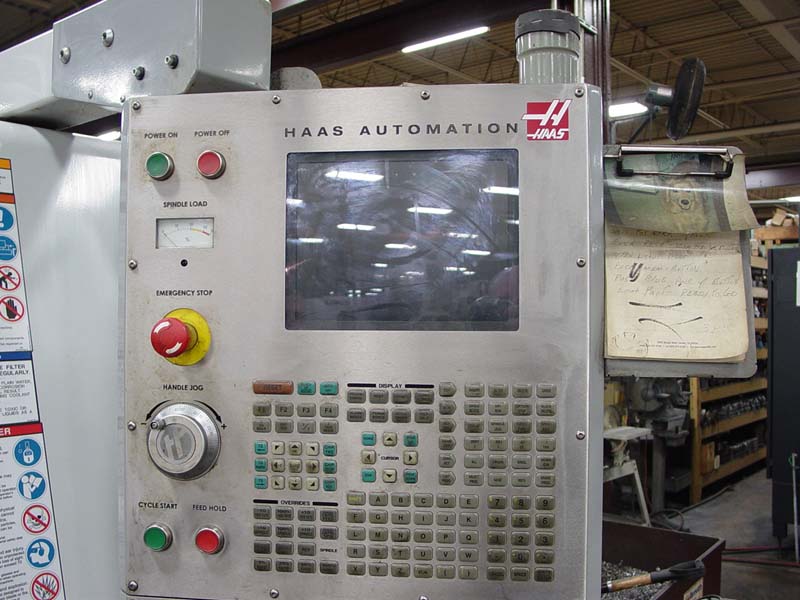

Haas 32 Bit CNC Control, 10" 3-Jaw Power Chuck, Tool Presetter, RS-232 Port, 30 HP 2-Speed Geared Head, 12 Position Turret, Programmable Hydraulic Tailstock, Coolant System and Chip Auger.



CATALOGUE SPECIFICATIONS:

Max Swing Over Bed...................................... 30"
Max Swing Over Carriage................................. 14.5"
Max Machinable Center Distance.......................... 34"
Max Distance Between Centers............................ 34"
Standard Chuck Size..................................... 10"
Cross Travel (X-Axis)................................... 14"
Longitudinal Travel (Z-Axis)............................ 34"
Rapid Traverse Rates.................................... 710 IPM
Number of Turrets....................................... 1

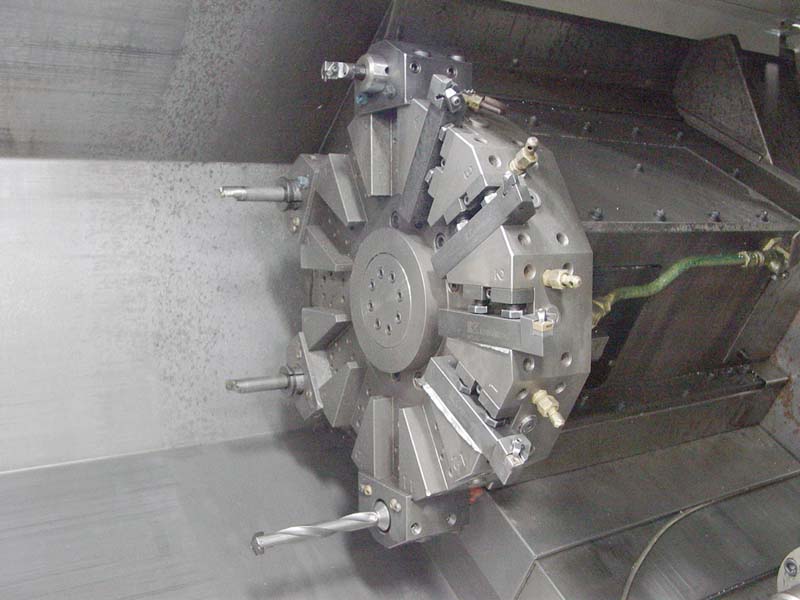

Tool Positions.......................................... 12 Total
Spindle Bore............................................ 3.5"
Bar Capacity............................................ 3"
Spindle Nose............................................ A2-6
Spindle Speed Range (Maximum)........................... 3400 RPM
Spindle Horsepower...................................... 30 HP
Approximate Dimension................................... 126" x 83"
Approximate Height...................................... 74"
Approximate Machine Weight.............................. 16,000 LBS



CONDITION:  Machine Appears to be in Excellent Condition!
