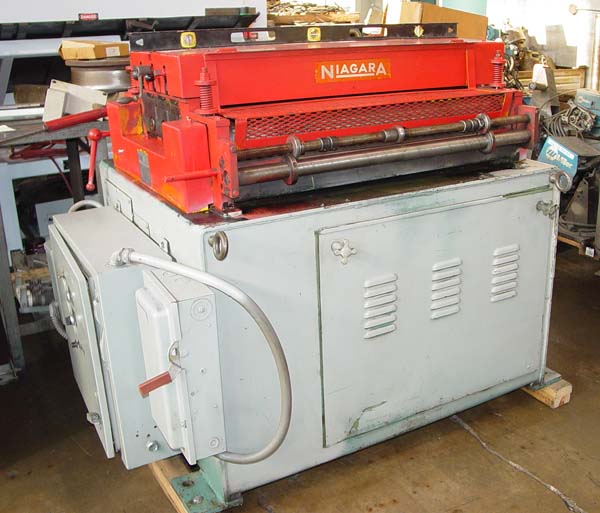

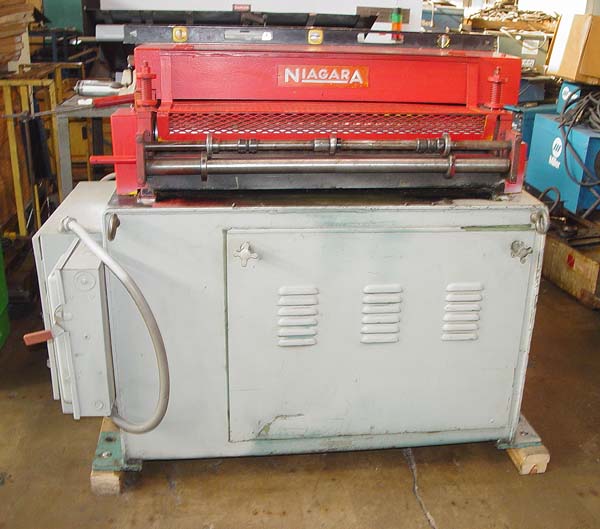

36" x .135" NIAGARA VARIABLE SPEED COIL STRAIGHTENER
Model 350-7-36, S/N F-1724, New 1982
STK# K13993
EQUIPPED WITH:

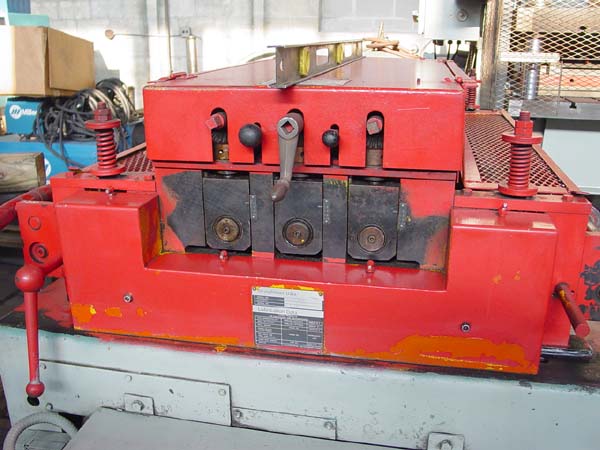

(7) 3.5" Straightening Rolls, Variable Speed Drive, Individual
or Unison
Upper Roll Adjustment, Jog, Forward and Reverse,
CATALOGUE SPECIFICATIONS:
Thickness Capacity................................... .135"
Width Capacity....................................... 36"
Diameter of Rolls.................................... 3.5"
Member of Rolls...................................... 7
Feed Line Height..................................... 40"
Straightening Speeds................................. 15 to 90
fpm
Straightening Motor Horsepower....................... 5 HP
Electrics............................................
220/440/3/60
Approximate Machine Dimensions....................... 48" x
58"
Approximate Machine Height........................... 52"
Approximate Machine Weight........................... 2200
Lbs.
CONDITION: Machine Appears to be in Very Good Condition!
