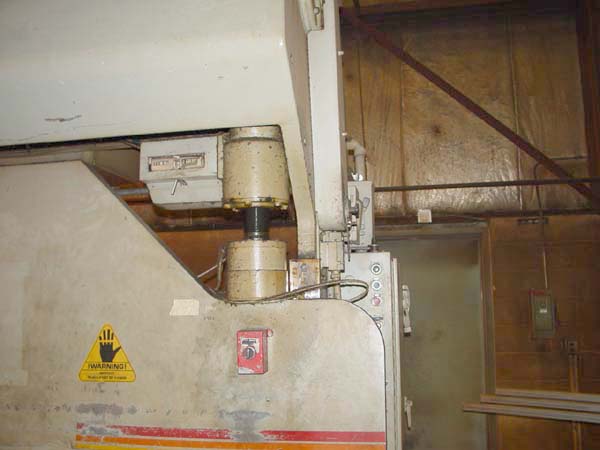

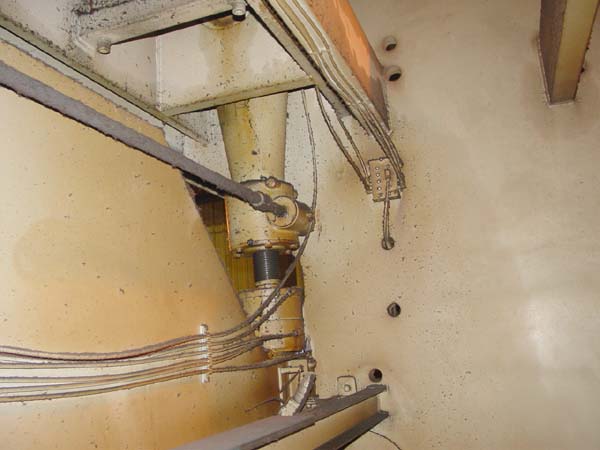

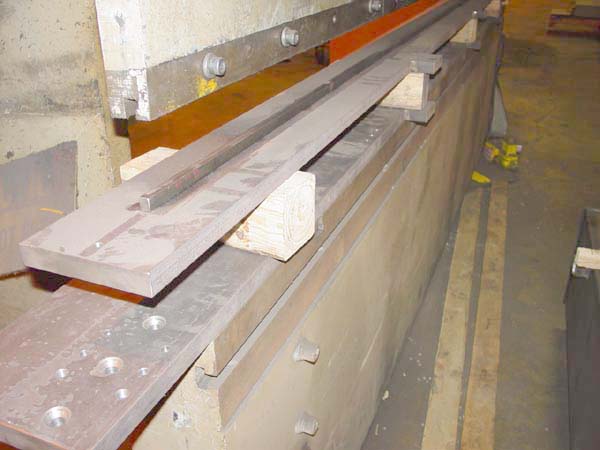

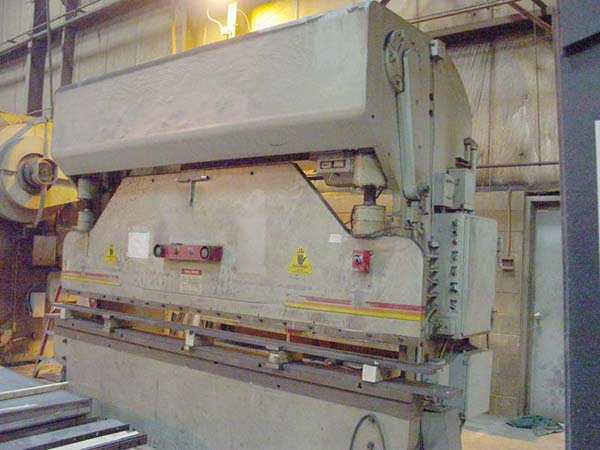

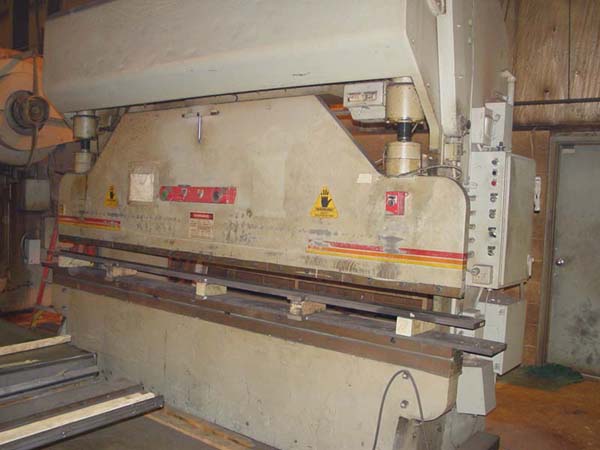

150 TON X 12' DI-ACRO HYDRAULIC PRESS BRAKE
            Model 150-12, S/N B84321, New 1978
                           Stock # K14010


EQUIPPED WITH:

Di-Acro Hydro-Mechanical Design give you the Stroke Control of a
Hydraulic Machine plus he Rigid Arm Link of a Mechanical Press Brake.
Motorized Ram Adjustment, Dual Speed Cycles, Jog, Stroke and
Continuous Cycles, Central Lube System.



CATALOG SPECIFICATIONS:

 Overall Length of Die Surface ........................ 144" (12')
Maximum Bending Length................................ 144" (12')
Distance Between Housings ............................ 126" (10'6")
Tonnage Capacity:..................................... 150 Ton
Throat Depth.......................................... 9.8"
Shut Height we/of Bolster............................... 8"
Length of Stroke (Adjustable)......................... 3"
Ram Adjustment........................................ 5"
Shut Height Ram up Stroke Down ....................... 12"
Electrical System .................................... 440/3/60
Approximate Machine Dimensions........................ 144" x 48"
Approximate Machine Height............................ 115"
Approximate Machine Weight............................ 23,800 Lbs



CONDITION: Machine Appears to be in Very Good Condition !!
