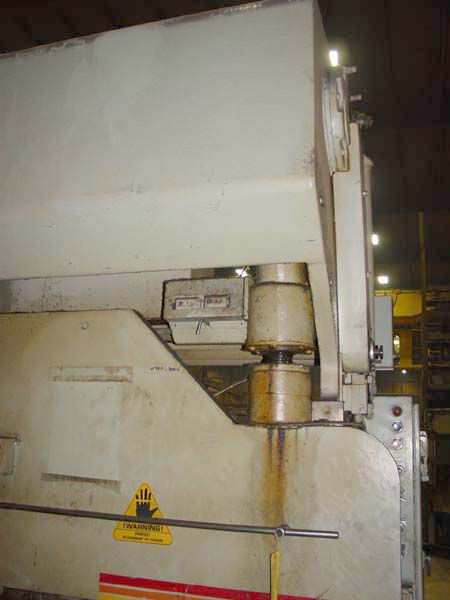

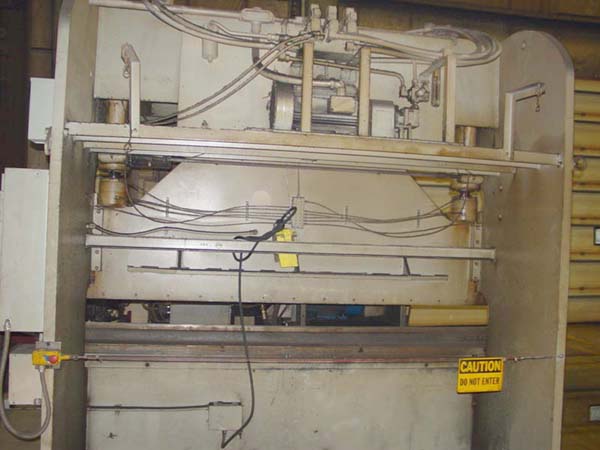

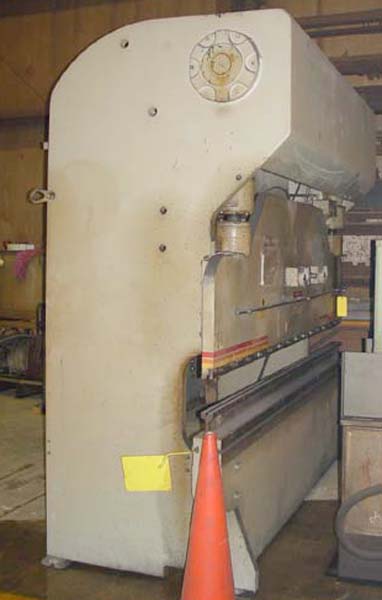

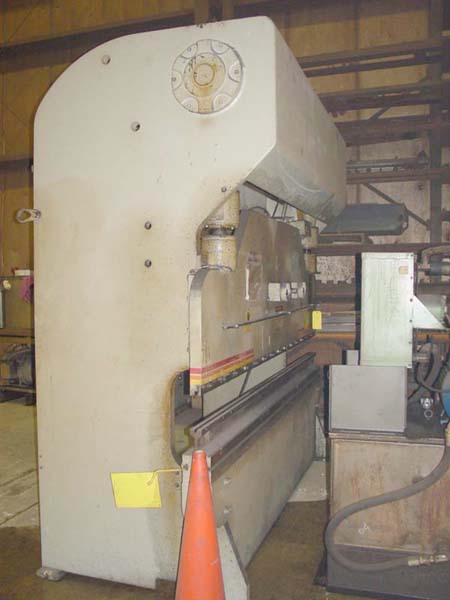

100 TON X 10' DI-ACRO HYDRAULIC PRESS BRAKE
Model 150-12, S/N 692087857, New 1978
Stock # K14012
EQUIPPED WITH:
Di-Acro Hydro-Mechanical Design give you the Stroke Control of a
Hydraulic Machine plus he Rigid Arm Link of a Mechanical Press Brake.
Motorized Ram Adjustment, Dual Speed Cycles, Jog, Stroke and
Continuous Cycles, Central Lube System.
CATALOG SPECIFICATIONS:
Overall Length of Die Surface ........................ 120" (10')
Maximum Bending Length................................ 120" (10')
Distance Between Housings ............................ 98" (8'2")
Tonnage Capacity:..................................... 100 Ton
Throat Depth.......................................... 9.8"
Shut Height w/o Bolster............................... 8"
Length of Stroke (Adjustable)......................... 3"
Ram Adjustment........................................ 5"
Shut Height Ram up Stroke Down ....................... 12"
Electrical System .................................... 440/3/60
Approximate Machine Dimensions........................ 120" x 48"
Approximate Machine Height............................ 113"
Approximate Machine Weight............................ 19,000 Lbs
CONDITION: Machine Appears to be in Very Good Condition !!
