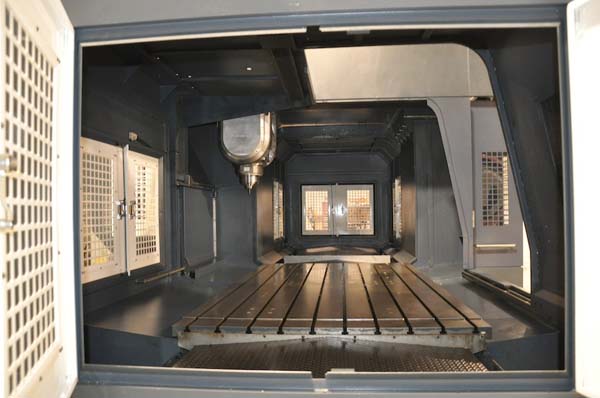

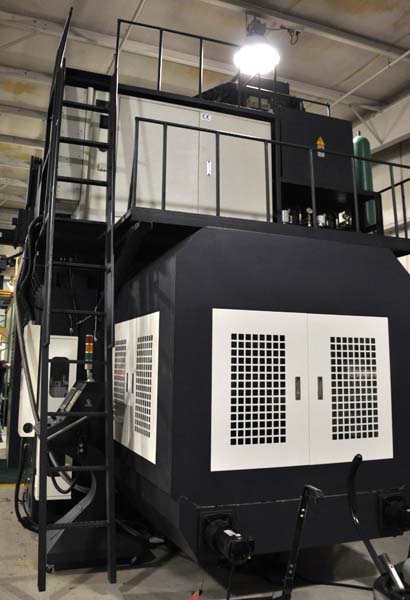

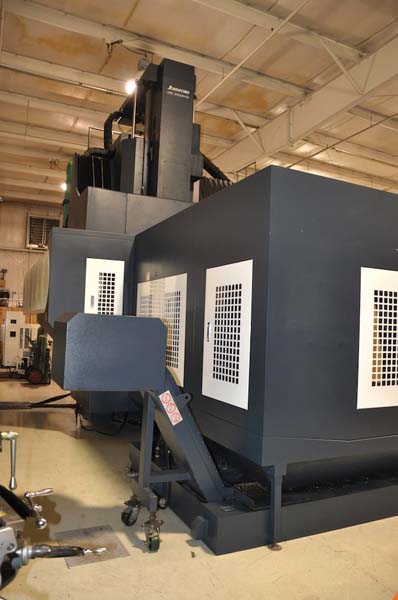

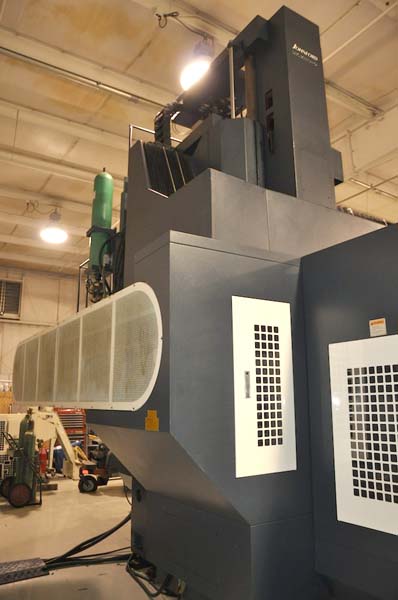

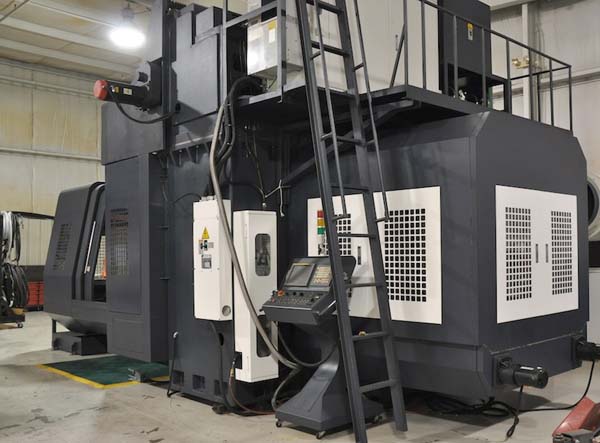

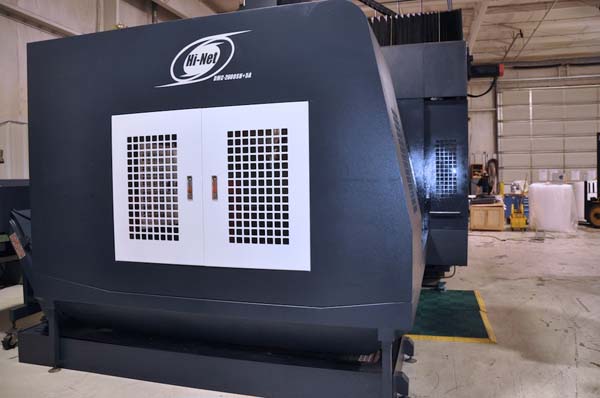

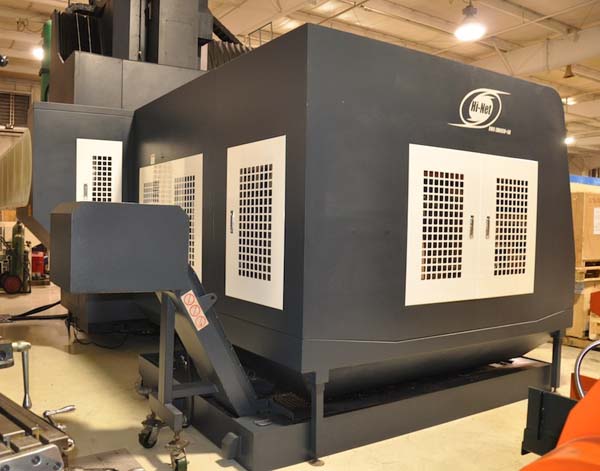

Johnford 5-Axis CNC Bridge Type Vertical Machining Center
Model: DMC-2600SH 5 Axis Year: 2006


Equipped With:

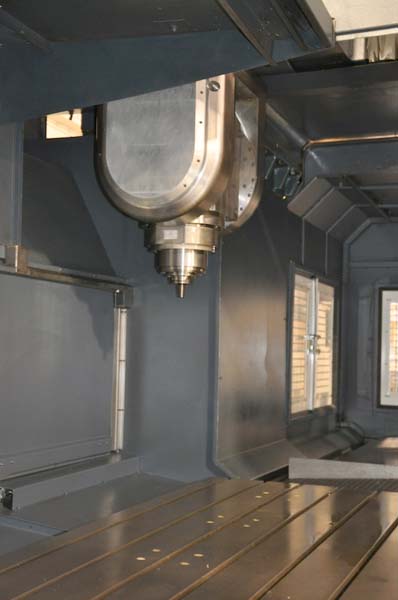

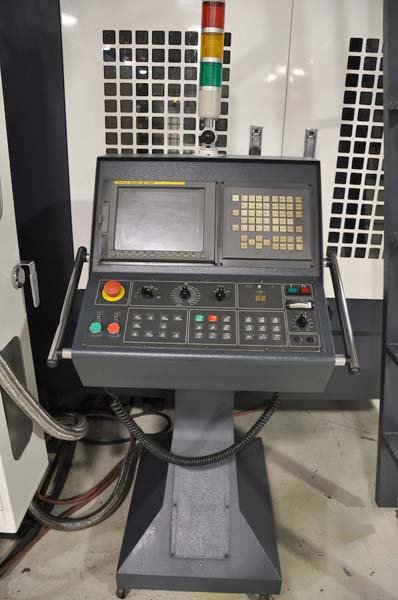

Fanuc 18iMB5 5-Axis CNC Control, High Speed Machining Option, HSK 100 Spindle, High Speed 10,000 RPM Spindle, High Speed Data Sever, 60 Station Automatic Tool Changer, G5A 2- Axis Contouring Head, Renishaw Probe, Dual Chip Augers and Chip Conveyor.


Catalogue Specifications:
Table Working Surface                                               106.2" x 59"
Longitudinal Travel (X) Axis                                       102"
Cross Travel (Y) Axis                                                70" (with spindle vertical)
Vertical Travel (Z) Axis                                              31.5"

Spindle Rotation                                                         360 Degrees

Spindle Tilt                                                                    180 degrees
Table to Spindle in vertical position (can be varied)       5.9" min / 37.4" max
Table to Spindle in horizontal position G5 (varied)          23.6" min / 55.1" max

Y Axis Distance Between Spindle                               77.8" M5 / 66.9" G5
X Axis Distance Between Spindle                               77.5" M5 / 66.6" G5
Distance Between Columns                                        72"
Maximum Workload on Table                                      22,000 LBS.
Table Surface                                                             Ground / T-slotted
No. of T-slots x Width                                                10 x 18mm
SpindleTaper                                                                         HSK 100
Power                                                                        47hp
Spindle Speed                                                           10,000 rpm


Condition: Appears to be in Excellent Condition
