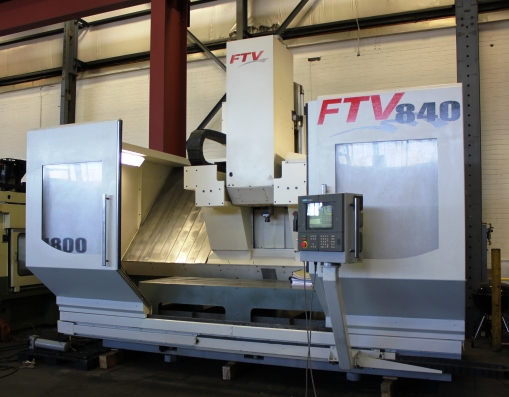

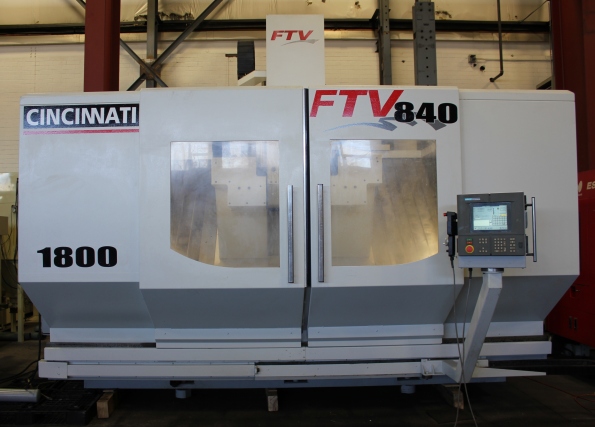

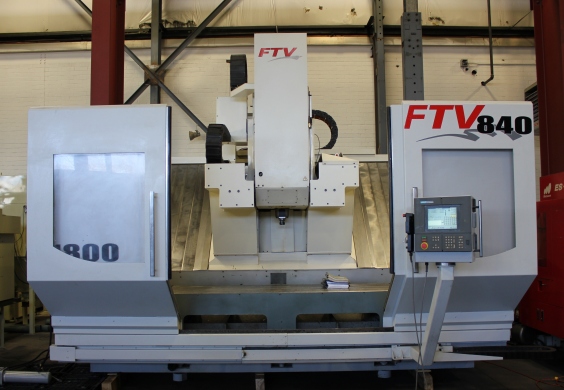

CINCINNATI FTV CNC
VERTICAL MACHINING CENTER
Model FTV840-1800, New 2002, S/N 7078A00-KH-00025
Stock # K14021
EQUIPPED WITH:

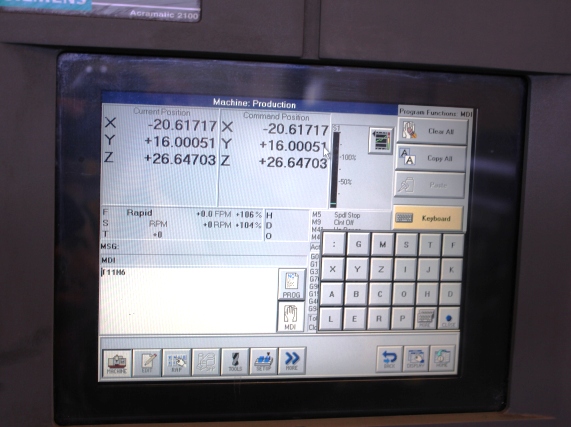

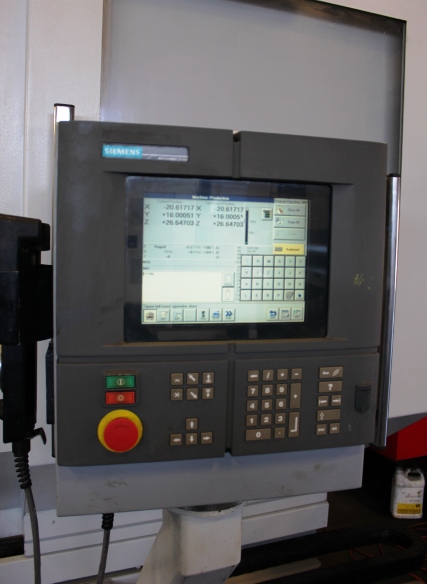

Acramatic 2100di CNC Control, RS-232 Port, Maximum Part Program
Storage, Self Diagnostics, Tool Cycle Monitor, Thermal
Compensation,

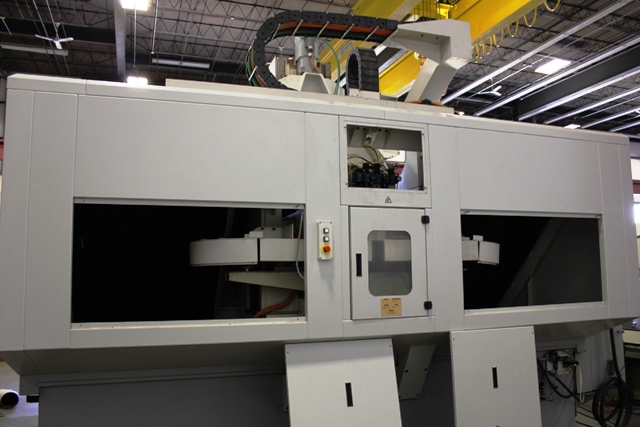

Linear Feedback Scales, 48 Station Automatic Tool Changer, Heavy
Duty

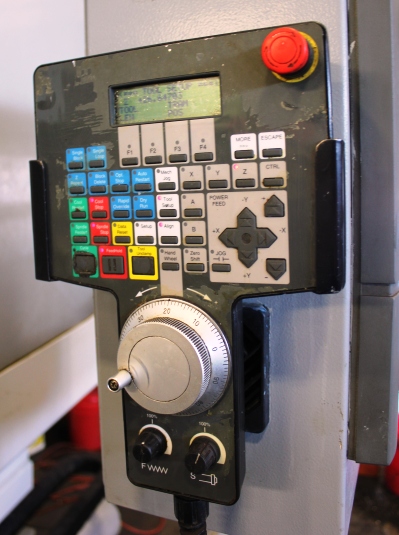

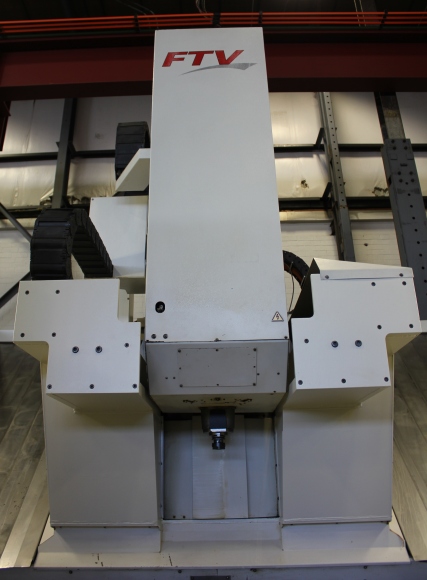

Traveling Column Disigned with Fixed Table, Penednt Mounted
Manual Pulse
Generator, Axis Error Compensation, Cutter Compensation, Full
Enclosure,
Coolant System.
CATALOGUE SPECIFICATIONS:

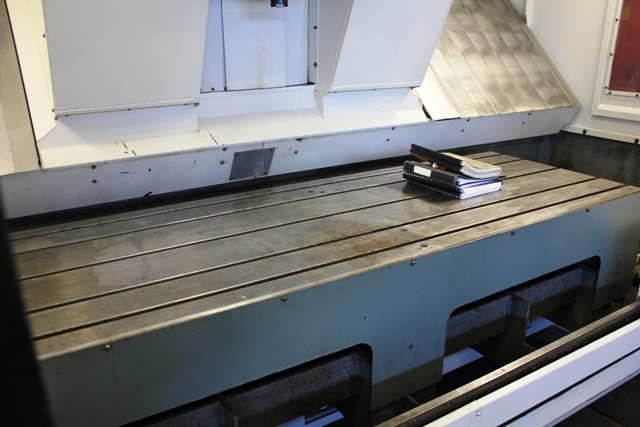

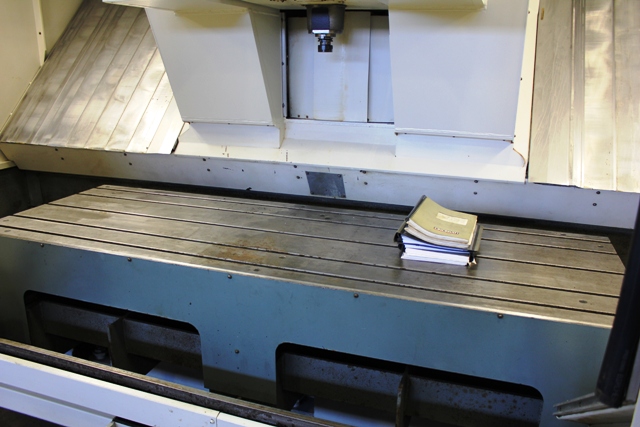

Table Working Surface................................. 95.6" x
32"
Table Load Capacity................................... 6000 lbs
Longitudinal Travel (X-Axis).......................... 72"
Cross Travel (Y-Axis)................................. 32"
Vertical Travel (Z-Axis).............................. 31.5"
Spindle Nose to Table................................. 4.7" -
36.2"
Tool Storage Capacity................................. 48
Spindle Speeds Range.................................. 10-8,000
RPM

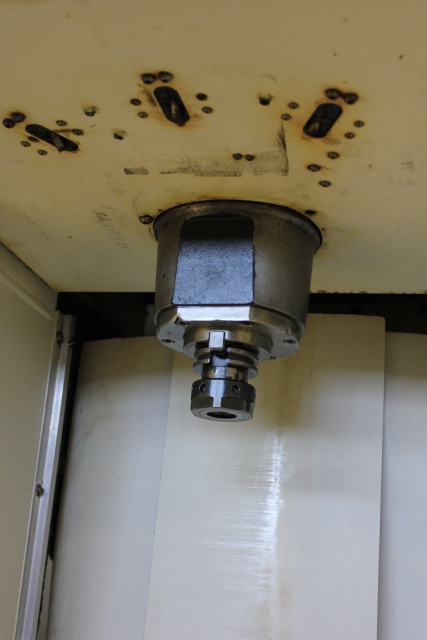

Spindle Taper......................................... #40 Cat
Electrics............................................. 460/3/60
Approximate Machine Dimensions........................ 188" x
149"
Approximate Machine Height............................ Max 153"
Approximate Machine Weight............................ 35,000
LBS
CONDITION: Appears to be in Excellent Condition !
