5" TOSHIBA BFT-13C Table Type CNC Horizontal Boring Mill

Stock Number K14034

Toshiba BFT-13C Table Type CNC Horizontal Boring Mill for sale

ACTUAL PHOTOS

5.1" TOSHIBA TABLE TYPE HORIZONTAL BORING MILL
MODEL BFT-13C, NEW 1979

EQUIPPED WITH:
POWER DRAW BAR

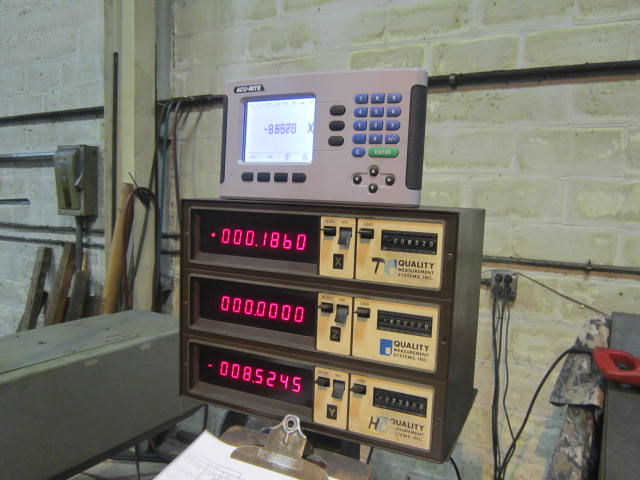

READOUTS - 3 AXIS
HARDENED AND GROUND BOX WAYS
FOUR WAY BED
TELESCOPING WAY COVERS
POWER DRAW BAR
59" X 59" POWERED ROTARY TABLE AVAILABLE FOR ADDITIONAL COST

SPINDLE DIAMETER........................................................ 5.13"
SPINDLE NOSE................................................................... # 50 TAPER
SPINDLE SPEEDS............................................................... 9 -1200 RPM (3 RANGES)
RAPID TRAVERSE.............................................................. 126 IPM
MAIN MOTOR...................................................................... 25 HP.
SPINDLE FEEDS (54)............................................................ 0.0001"- 1.71 " /REV.
SPINDLE TRAVEL............................................................... 35.4"
VERTICAL TRAVEL OF HEADSTOCK............................. 82.7""
CROSS TRAVEL OF TABLE............................................... .118"
LONGITUDINAL TRAVEL O F SADDLE.......................... 51.2"
TABLE WORKING SURFACE............................................ 58" X 118"
RAPID TRAVERSE...............................................................126 IPM
PERMISSIBLE WEIGHT OF WORK................................. 22,000 LB
