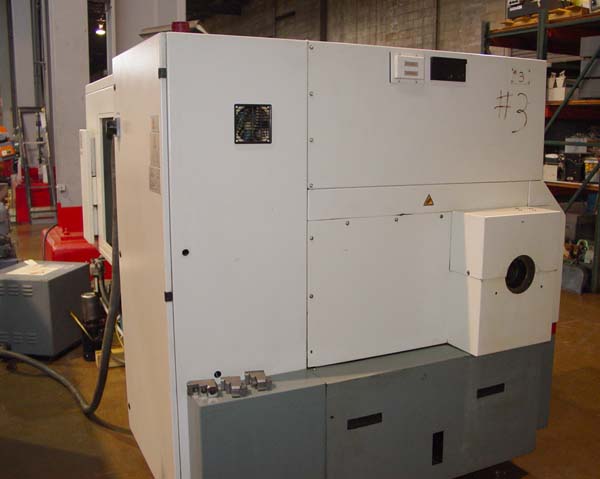

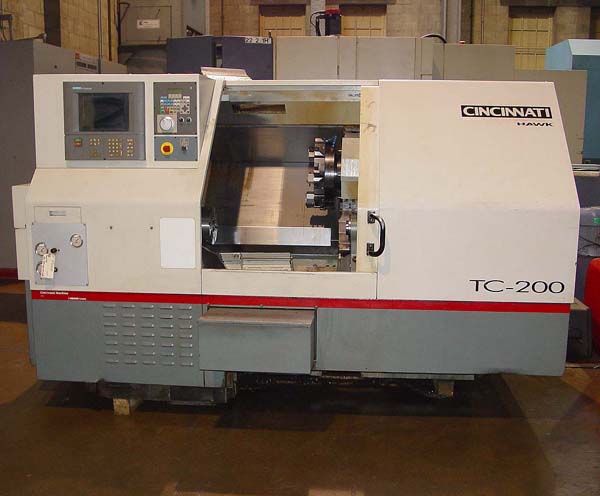

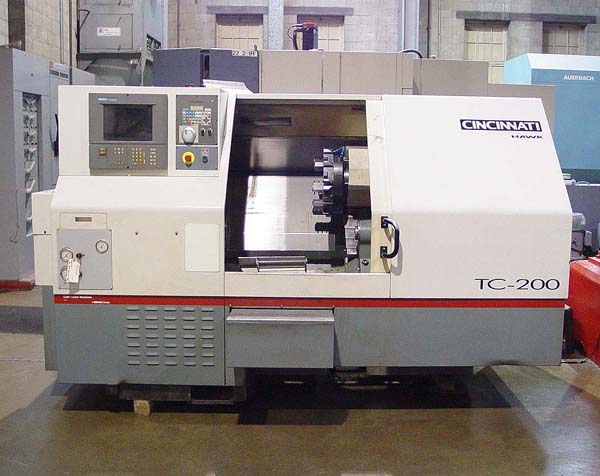

CINCINNATI MILACRON `HAWK 200' CNC TURNING CENTER
                Model Hawk 200,S/N 7050-A00-KT-0169, New 2001
                                         Stock # K14060



EQUIPPED WITH:

Acramatic 2100 PC Based CNC Control with Color CRT, Multiple Part

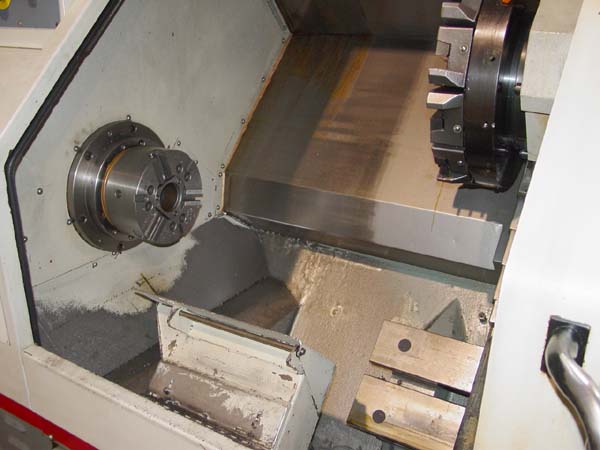

Program Storage, RS-232 Port, 8" 3-Jaw Power Chuck, Tailstock, Chip
Conveyor and Coolant System.



CATALOGUE SPECIFICATIONS:

Max Swing Over Bed...................................... 20.87"
Max Swing Over Carriage................................. 11.81"
Max Tailstock Position.................................. 26.18"
Standard Chuck Size..................................... 8.27"
Cross Travel (X-Axis)................................... 9.65"
Longitudinal Travel (Z-Axis)............................ 21.26"
Feed Range (Infinitely Variable)........................ .1-630 IPM
Rapid Traverse Rate (X-Axis)............................ 630 IPM
Rapid Traverse Rate (Y-Axis)............................ 1000 IPM
Number of Turrets....................................... 1

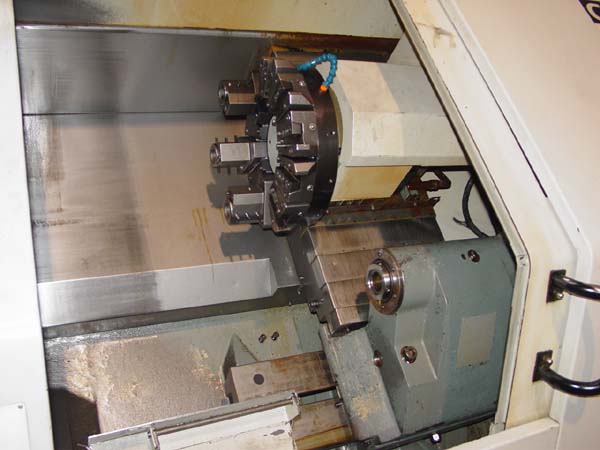

Tool Positions.......................................... 12 Total
Spindle Bore............................................ 3.03"
Spindle Nose............................................ A2-6
Spindle Speed Range (1 RPM Increments).................. 30-4500 RPM
Spindle Horsepower...................................... 15 HP
Electrics............................................... 230/460/3/60
Approximate Machine Dimensions.......................... 58.2" x 38"
Approximate Machine Height.............................. 63.8"
Approximate Machine Weight.............................. 10,300 LBS

CONDITION: Machine Appears to be in Very Good Condition!!
