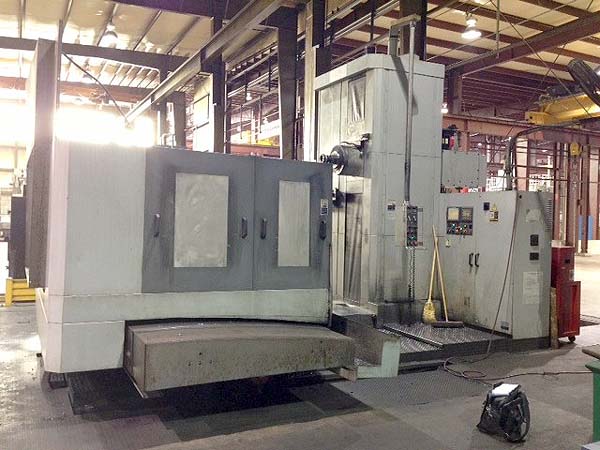

5"  HYUNDAI KIA KBN 135 CNC TABLE TYPE HORIZONTAL BORING MILL
                      MODEL KBN135, NEW 2006, STOCK# K14066

EQUIPPED WITH:

        FANUC 16iMB CNC COLOR CONTROL
                COOLANT THRU THE SPINDLE SYSTEM
                COOL JET 1000 PSI
                CO-ORDINATE SYSTEM ROTATION
                CUSTOM MACRO B
                60 TOOL CHANGER OPTION
                99 TOOL OFFSETS
                STEEL WAY COVERS
                RIGID TAPPING
                SCALE FEEDBACK
                MANUAL PULSE GENERATOR
                AUTO CLAMPING SYSTEM ON Y-AXIS
                SECONDARY LUBE TANK
                CHIP CONVEYOR
                ALL MANUALS


     CATALOGUE SPECIFICATIONS:

                Table Size                             78.74" X 70.87"
                Table Capacity                         22,045 LBS.
                Spindle Diameter                         5.31"
                Spindle Speed                         5 - 2,000 RPM
                # OF Ranges                             4
                Spindle Torque                         2324 ft/lbs.
                Axis Travel X - Axis (Cross)             118"
                        Y - Axis (Spindle Vertical)     78.74"
                        Z - Axis (Table In/Out)         63"
                        W - Axis (Quill)             27.56"
                        B - Axis (ROTARY TABLE)         .001 (360,000)
                Spindle Drive Motor                     30 HP AC     .
                Spindle Taper                         CAT # 50
                Automatic Tool Changer Capacity             60 Tools
                Max. Tool Dia.                         10.2"
                Max Tool Length                         18.7"
                Max.Tool Weight                         66 LBS.
                Machine Weight                         93,000 LBS.
