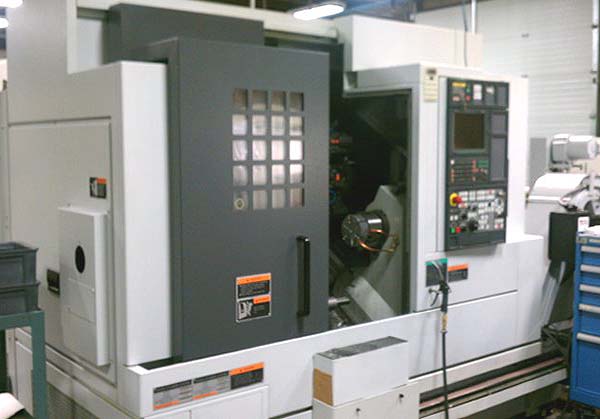

MORI-SEIKI NL-1500SMC CNC TURNING/MILLING
CENTER WITH SUB SPINDLE
NEW:2005
EQUIPPED WITH:

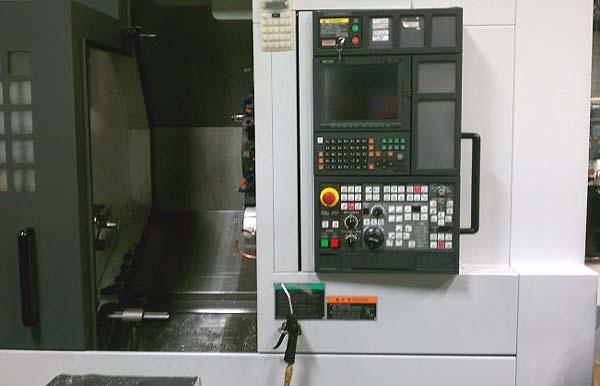

* MORI SEIKI MSX-850 BM CNC CONTROL (WITH MAPPS -
CONVERSATIONAL)

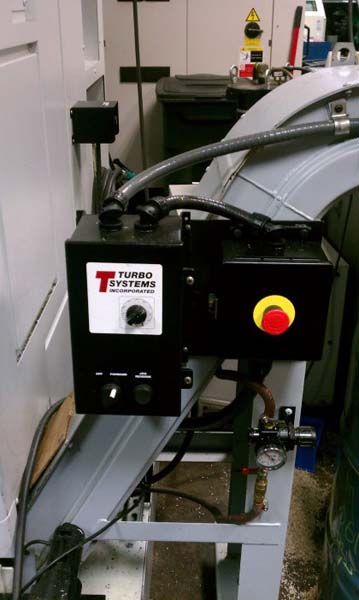

* TURBO HINGE BELT CHIP CONVEYOR

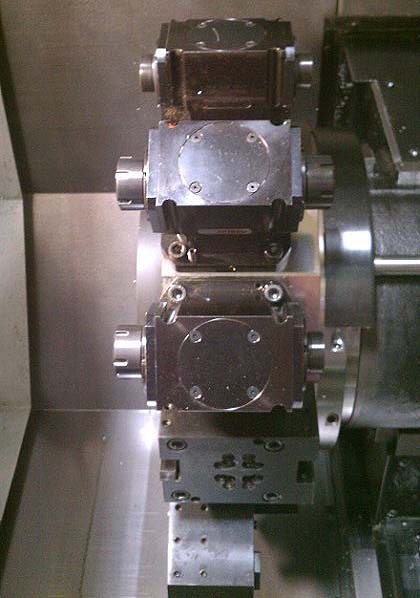

* 3 DOUBLE LIVE Z HOLDERS AND 3 LIVE X HOLDERS
* TOOL EYE
* PARTS CATCHER WITH PART CONVEYOR

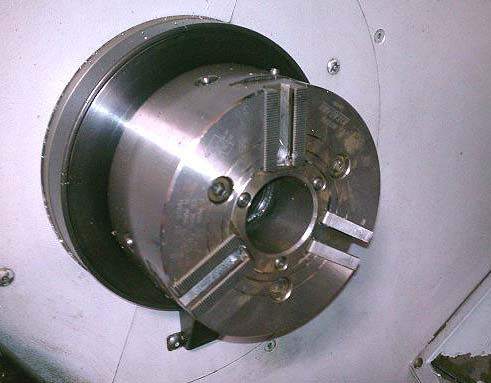

* 6" 3-JAW CHUCK FOR MAIN SPINDLE

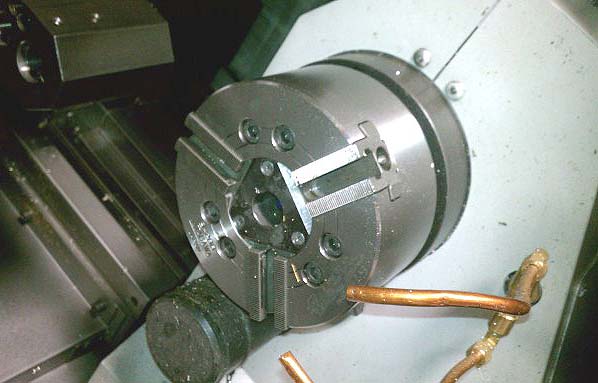

* 6" 3-JAW CHUCK FOR SUB SPINDLE
* BAR FEED INTERFACE
* COOL BLASTER 1,000 PSI HIGH PRESSURE COOLANT SYSTEM
CATALOGUE SPECIFICATIONS:
MAIN CHUCK DIAMETER..................... 6" 3-JAW CHUCK
SWING OVER BED.......................... 22.8"
SWING OVER CROSS SLIDE.................. 29.7"
MAXIMUM TURNING DIAMETER................ 14.0"
MAXIMUM TURNING LENGTH.................. 20.2"
X-AXIS TRAVEL........................... 10.2"
Z-AXIS TRAVEL........................... 23.2"
SUB-SPINDLE HEADSTOCK TRAVEL (B-AXIS)... 24.6"
MAXIMUM SPINDLE SPEED................... 6,000 RPM

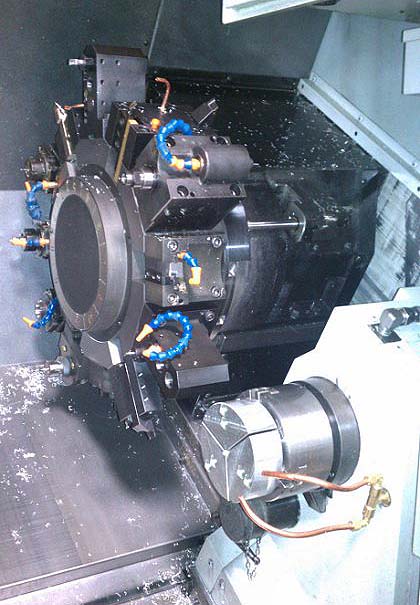

NUMBER OF TOOL STATIONS................. 12
MAXIMUM ROTARY TOOL SPINDLE SPEEDS...... 6,000 RPM
SPINDLE BORE............................ 2.4"
BAR WORK CAPACITY....................... 2"
MAIN MOTOR.............................. 15 HP
LIVE TOOL SPINDLE MOTOR................. 7.4 HP
SUB SPINDLE:
SPINDLE SPEEDS......................... 6,000 RPM
SPINDLE BORE........................... 1.7"
SPINDLE MOTOR.......................... 15 HP
MACHINE FLOOR SPACE.......... 106" W (133.4 W CONV) X 79" X
84" TALL
APPROXIMATE MACHINE WEIGHT... 12,100 LBS
CONDITION: APPEARS TO BE
IN EXCELLENT CONDITION ! ONLY 5098 CUTTING
HOURS
