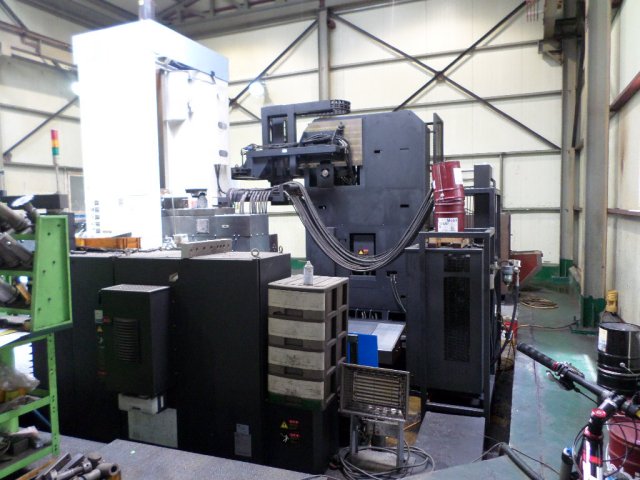

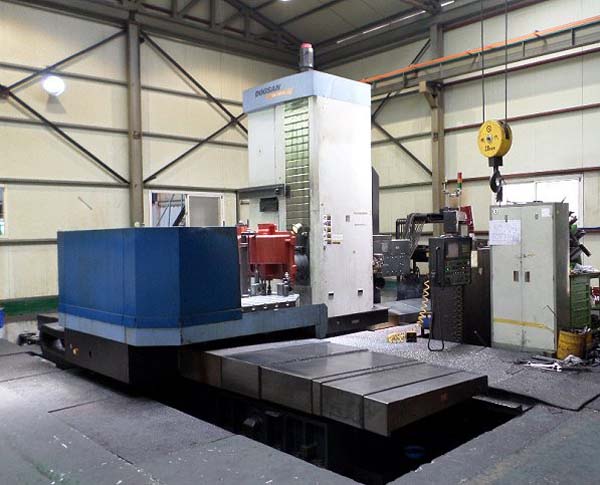

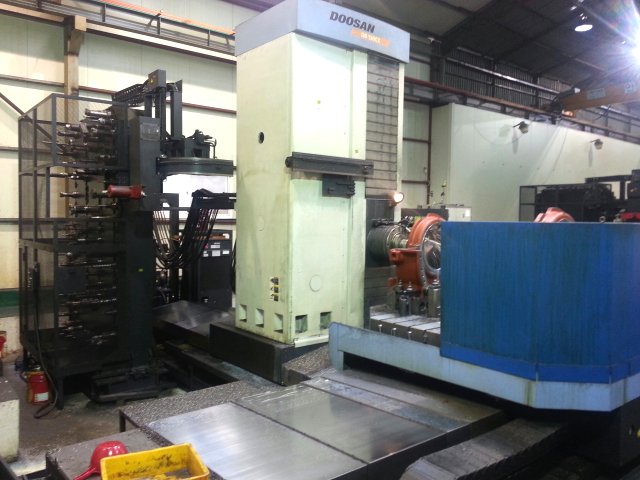

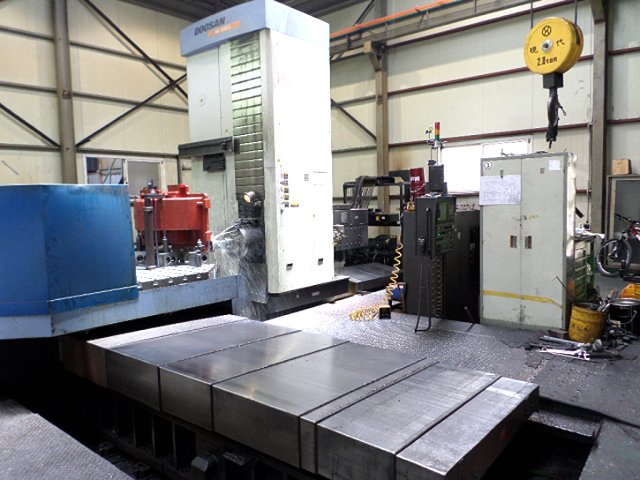

5" DOOSAN MODEL: DB 130CX (With Extended Travel and Larger Table)
                      CNC TABLE TYPE HORIZONTAL BORING MILL
                                    NEW: 2008
EQUIPPED WITH:
  * FANUC 18i-MB 5-AXIS CNC CONTROL
  * FULL B-AXIS 360,000 POSITIONING WITH CONTOURING
  * CHIP CONVEYOR
  * COOLANT THROUGH SPINDLE - 290 PSI
  * OPTIONAL LARGER 78.7" X 86.6" BUILT IN B-AXIS ROTARY TABLE
  * 90 POSITION AUTOMATIC TOOL CHANGER

CATALOGUE SPECIFICATIONS:
 SPINDLE DIAMETER........................ 5.12"
 SPINDLE SPEEDS (3 SPEED GEARED HEAD).... 10 TO 2,500 RPM
 SPINDLE MOTOR........................... 35 HP
 SPINDLE TAPER........................... CAT 50
 AUTOMATIC TOOL CHANGER.................. 90 POSITIONS
 SPINDLE TRAVEL (W-AXIS)................. 27.6"
 TABLE CROSS TRAVEL (X-AXIS)............. 157.5"
 VERTICAL TRAVEL OF SPINDLE (Y-AXIS)..... 78.7"
 COLUMN TRAVEL IN & OUT (W-AXIS)......... 63"
 BUILT IN ROTARY TABLE SIZE.............. 78.7" X 86.6"
 TABLE LOAD CAPACITY..................... 28,600 LBS
 TABLE INDEXING (B-AXIS)................. 360,000 POSITIONS
 APPROXIMATE FLOOR SPACE REQUIRED.. 358" LR, 289" FB, 192" TALL
 APPROXIMATE MACHINE WEIGHT........ 94,500 LBS

 CONDITION:  APPEARS TO BE IN EXCELLENT CONDITION !  ONLY 6,000 CUTTING HOURS
