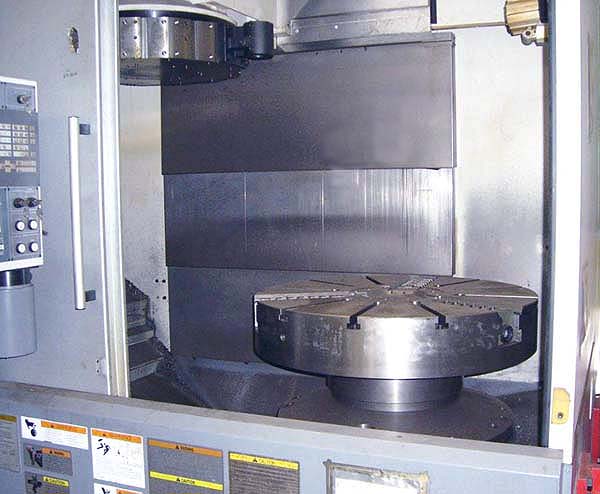

OKUMA V-100 CNC VERTICAL TURNING CENTER
                                Model V100R, New 2011
                                        Stock # K14074



EQUIPPED WITH:

Fanuc 32i CNC Control, Multiple Part Program Storage, RS-232 Port,
39" SMW 3-Jaw Power Chuck, 12 Position Turret, Power Automatic Door,
Work Light, Coolant System and Chip Conveyor.

CATALOGUE SPECIFICATIONS:

Max Swing............................................... 49.2"
Max Turning Diameter............................... 39.4"
Chuck Size.............................................. 39"
Max Turning Height................................... 35"
Cross Travel (X-Axis)................................ 22"
Vertical Turret Travel (Z-Axis).................... 35"
Rapid Traverse Rates............................... 945 IPM
Number of Turrets.................................... 1
Tool Positions........................................ 12 Total
Spindle Speed Range (Maximum)............ 8-750 RPM
Spindle Horsepower................................ 60 HP Cont.
Approximate Dimension With Conveyor..... 107" x 138"
Approximate Height................................ 136"
Approximate Machine Weight................. 28,600 LBS

CONDITION:  Machine Appears to be in Excellent Condition!
