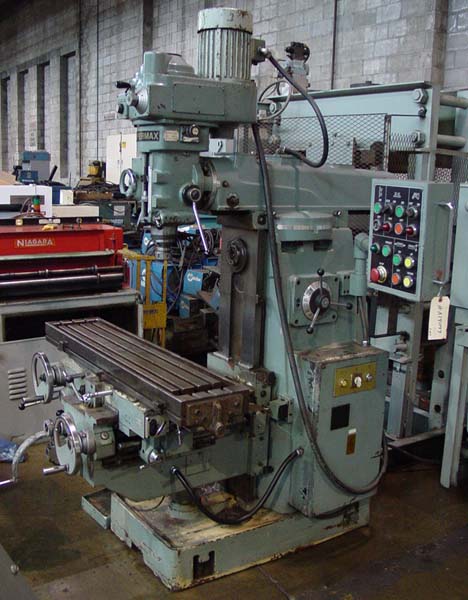

SUPERMAX YCM HORIZONTAL / VERTICAL MILL

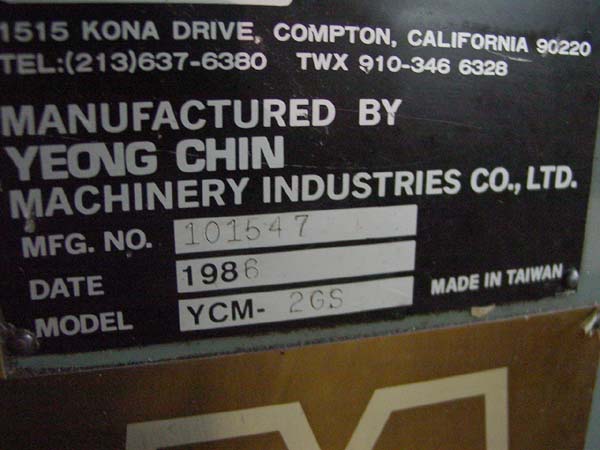

                    Model YCM-2GS, New 1986, S/N 101547
                                       Stock # K14099



EQUIPPED WITH:

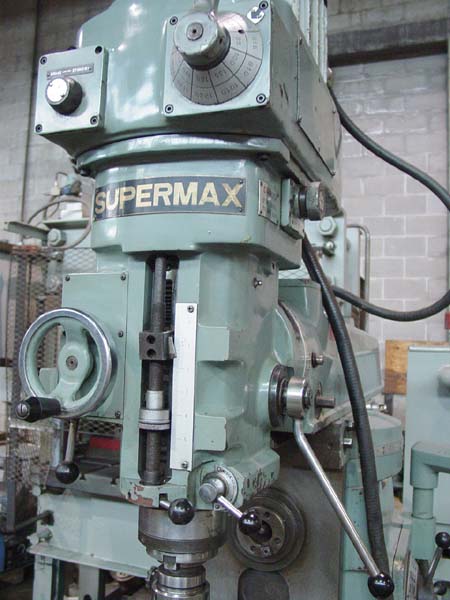

5 HP Heavy Duty Geared Horizontal Spindle, 5 HP Bridgeport Style
Variable Speed Vertical Spindle, Power Longitudinal and Cross Table
Feeds, Power Quill Feed on Vertical Spindle, Vise.

SPECIFICATIONS:

Table Dimensions (Overall, W x L)......................... 11" x 51"
Longitudinal Table Travel (X-Axis)........................ 39.375"
Cross Saddle Travel (Y-Axis).............................. 17.5"
Vertical Knee Travel (W-Axis)............................. 17.75"
Vertical Head Quill Travel (Z-Axis)....................... 5.5"
Vertical Head Swivel...................................... 360 Degrees
Spindle Taper............................................. #40 NMTD
Horizontal Spindle Speeds (18)............................ 49-1300 RPM
Vertical Spindle Speeds................................... 85-3800 RPM
Motors for each Spindle................................... 5 HP ea
Electrics................................................. 220/3/60
Approximate Machine Dimensions............................ 60" x 66"
Approximate Machine Height................................ 78"
Approximate Machine Weight................................ 6000 lbs.


CONDITION: Appears to be in Very Good Condition !!

PRICE: F.O.B. Cincinnati, Ohio.......................... $ 8,950.
