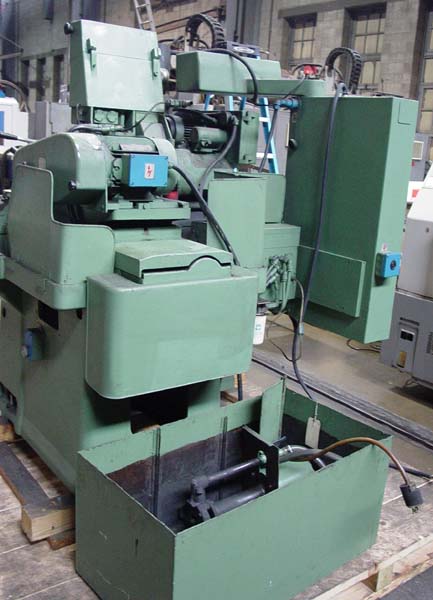

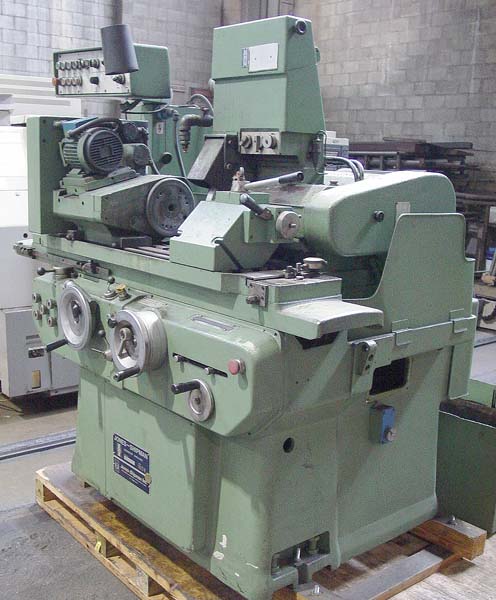

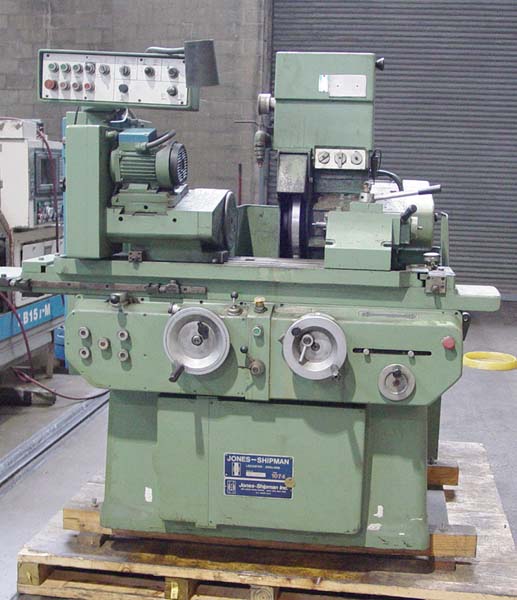

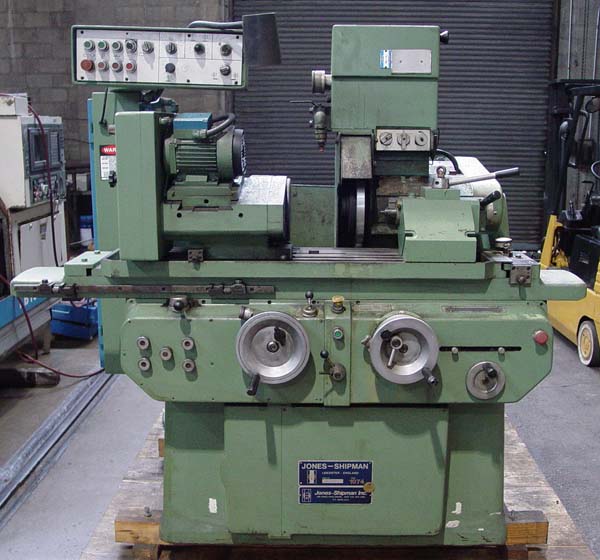

10" X 18" JONES & SHIPMAN SUPER-PRECISION PLAIN CYLINDRICAL
               GRINDER with POWER OVER-THE-WHEEL DRESSER

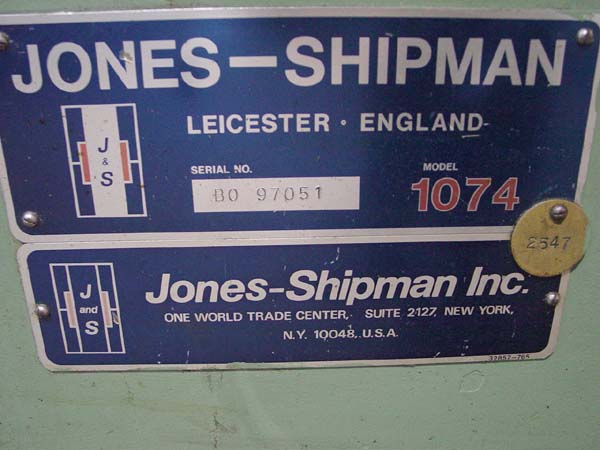

                         MODEL: 1074 S/N: BO97051 NEW: 1981
                                           Stock# K14158



EQUIPPED WITH:

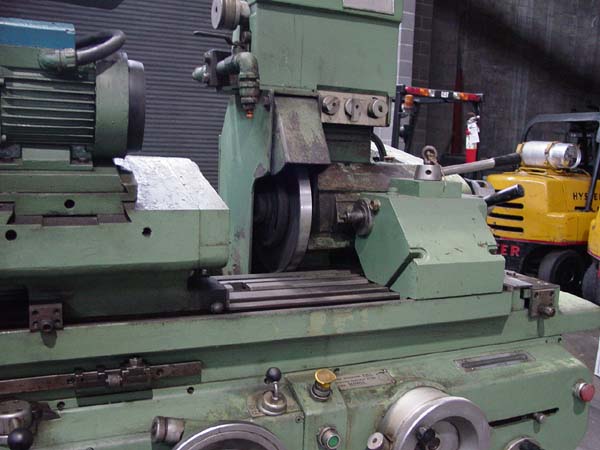

POWER "OVER-THE-WHEEL" WHEEL DRESSER

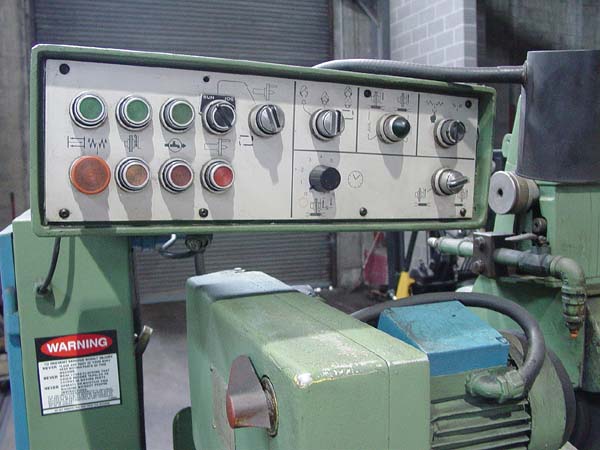

HYDRAULIC OPERATION FEATURING:
- POWER TABLE TRAVERSE
- AUTO INFEED OF WHEELHEAD @ TABLE REVERSAL
- PLUNGE INFEED (CONINUOUS FEED)
- POWER RAPID WHEELHEAD ADVANCE & RETRACTION
SPARKOUT TIMER (0 TO 30 SECONDS)
FINE FEED MECHANISM FOR INFEED OF WHEELHEAD (.00005")
FINE FEED KNOB FOR TABLE TRAVERSE
DEAD WORKHEAD SPINDLE



CATALOGUE SPECIFICATIONS:
MAXIMUM SWING .............................. 10"
DISTANCE BETWEEN CENTERS ................... 18"
TABLE SWIVEL INCLUDED ANGLE:................ 20 DEG.
LONGITUDINAL TABLE SPEED (HYDRAULIC) ....... 3" TO 180" IPM
MANUAL TRAVERSE, HANDWHEEL PER REV. ........ 0.50"
FINE HAND TRAVERSE KNOB GRAD. .............. 0.0005"
FINE HAND TRAVERSE KNOB PER REV. ........... 0.01"
TABLE SWIVELS, CLOCKWISE ................... 20 DEG.
TABLE SWIVELS, COUNTER-CLOCKWISE ........... 18 DEG.
CROSS FEED HANDWHEEL GRAD. ................. 0.0002"
FINE FEED LEVER GRAD. ...................... 0.00005"
AUTO INFEED INCREMENT ...................... 0.00002" TO 0.0020"
PLUNGE INFEED RATE ......................... 0.0005" TO 1.0"
WHEEL SIZE ................................. 16" DIAMETER
WHEEL SPEEDS (2) ........................... 1,550 & 1,990 RPM
WHEELHEAD MOTOR ............................ 5.5 HP
WORKHEAD SPINDLE SPEEDS (6) ................ 40 TO 320 RPM
WORKHEAD SPINDLE TAPER ..................... #3MT
APPROX. FLOOR SPACE REQUIRED ............... 100" X 54"
APPROX. MACHINE WEIGHT ..................... 5,500 LBS
