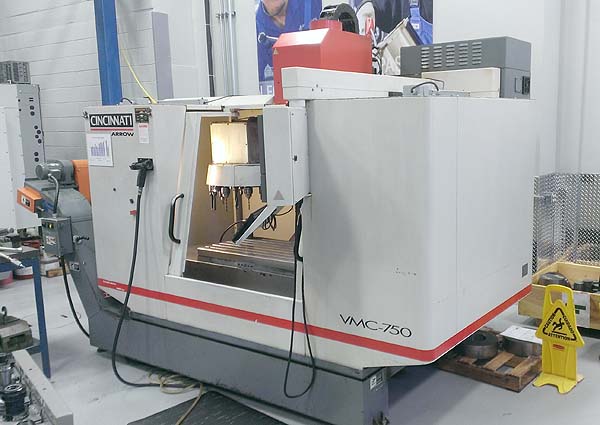

CINCINNATI ARROW-750 CNC VERTICAL MACHINING CENTER

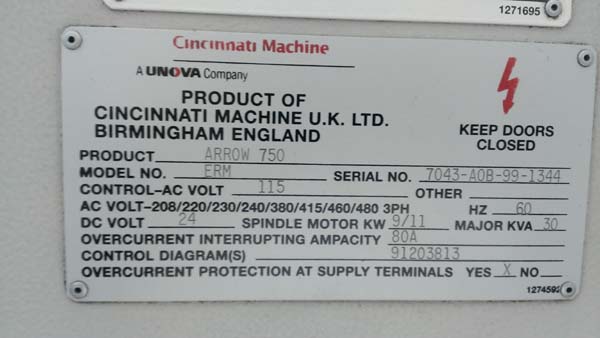

                            S/N 7043A0B-99-1344, New 1999
                                             Stock# K14355



EQUIPPED WITH:

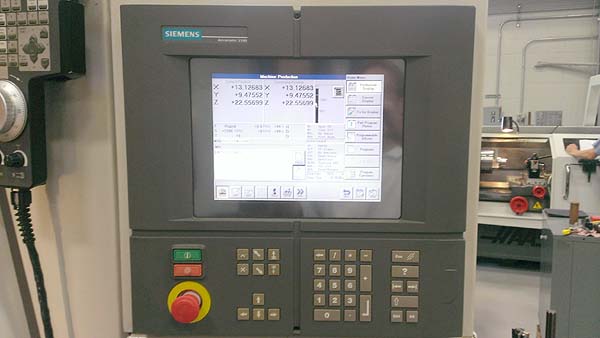

Acramatic 2100 PC Based CNC Control, RAP Conversational Programming,

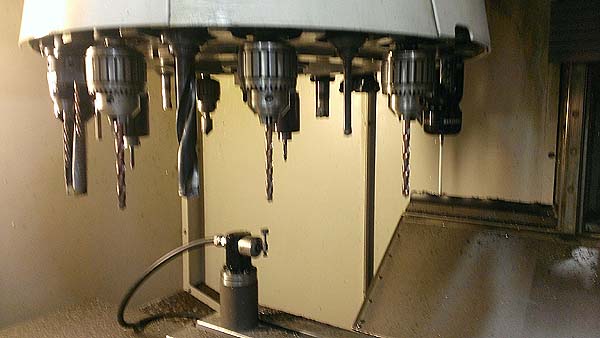

Handheld Pendent Control, 21 Station Automatic Tool Changer, Automatic
Tool Recovery, Renishaw Tool Setting Probe, Renishaw Spindle Probe, Tool
Cycle Time Monitor, Migrating Tools, Spindle Load Meter, Fanuc 0
Program Translation, Realtime Memory Upgrade, Floppy Disk Drive, Color
Graphics, Thermal Compensation, Rigid Tapping, 21 Station Automatic Tool
Changer, Full Coolant Enclosure, and Coolant System.



CATALOGUE SPECIFICATIONS:

X Travel (Longitudinal)............................... 30"
Y Travel (Cross)...................................... 20"
Z Travel (Vertical)................................... 20"
Table Working Surface................................. 37.5"x20.5"
Table Work Load Capacity.............................. 1000 LBS
Spindle Horsepower.................................... 10 HP
Spindle Speeds........................................ 30-6000 RPM
Spindle Taper......................................... #40 Cat
Feed Rates, X & Y..................................... 0.1 to 472 IPM
Feed Rate, Z.......................................... 0.1 to 393 IPM
Rapid Traverse X & Y.................................. 787 IPM
Rapid Traverse Z...................................... 787 IPM
Tool Storage Capacity................................. 21
Approximate Dimensions................................ 110" x 87"
Approximate Height.................................... 106"
Approximate Weight.................................... 7,276 LBS

CONDITION: Machine Appears to be in Excellent Condition !
