16" x 30"

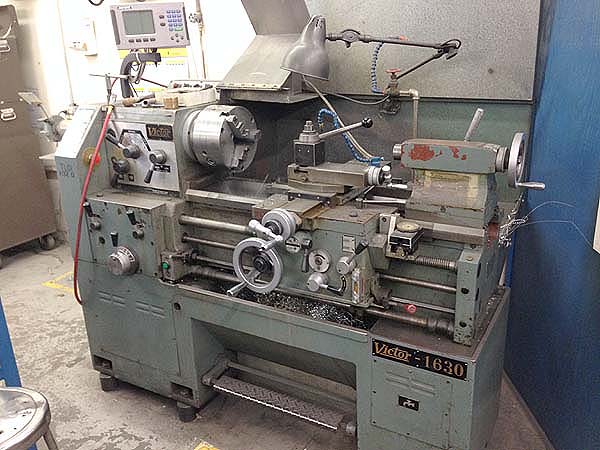

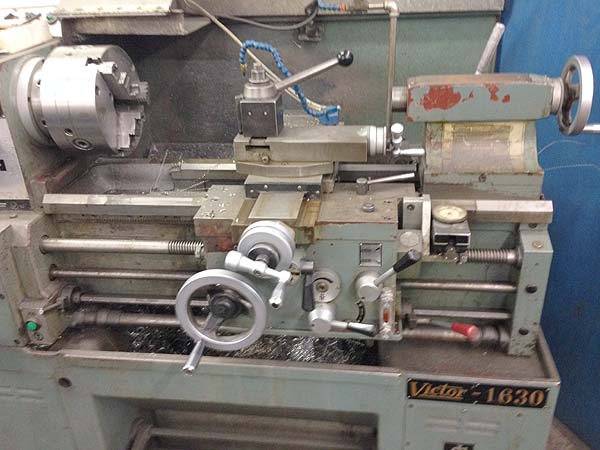

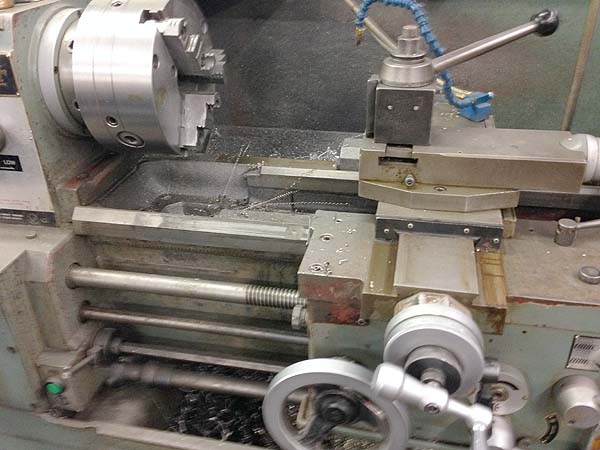

VICTOR ENGINE LATHE
Model 1630, New 1979, S/N
551342
Stock# K14372
EQUIPPED WITH:
Acu-Rite 2-Axis Digital Readouts, 2" Spindle
Bore, 10" 3-Jaw Chuck,
Rapid Traverse, Inch Metric Threading, Gap
Bed, Compound Cross Slide,
Aloris Tool Post, Coolant System, Chip Pan.
CATALOGUE SPECIFICATIONS:
Swing over the
bed................................. 15-3/4"
Swing over the cross
slide......................... 9"
Swing in the
Gap................................... 23"
Distance between
centers........................... 30"
Cross Slide
Travel................................. 9"
Spindle
Nose.......................................
D1-6
Spindle
Bore....................................... 2"
Taper in
Tailstock.................................
MT-4
Spindle
Speed....).................................
65-1800 RPM
Feed
Range.........................................
.0033-.0233 IPR
Metric Threads
(39)................................ .25-6 mm
Inch Threads
(45)................................ 4-56 TPI
Main
Motor.........................................
5 HP
Approximate Machine
Dimensions..................... 30" x 71"
Approximate Machine
Weight......................... 3000 lbs
CONDITION: Appears to be in Excellent
Condition !
