TOSHIBA 5-Axsi Universal Horizontal Vertical Machining Center

Stock Number K14404

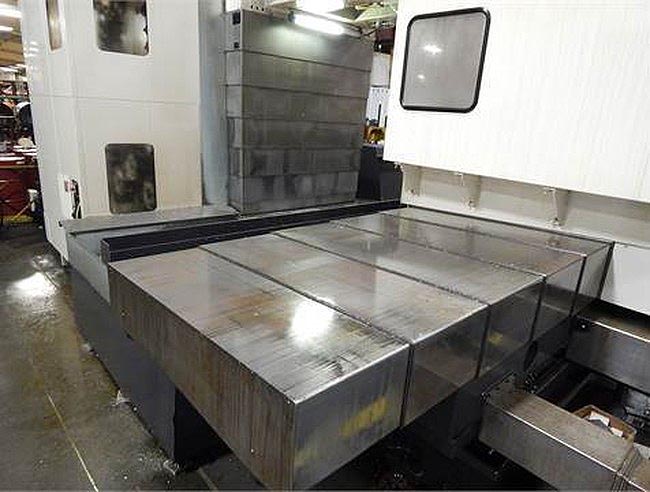

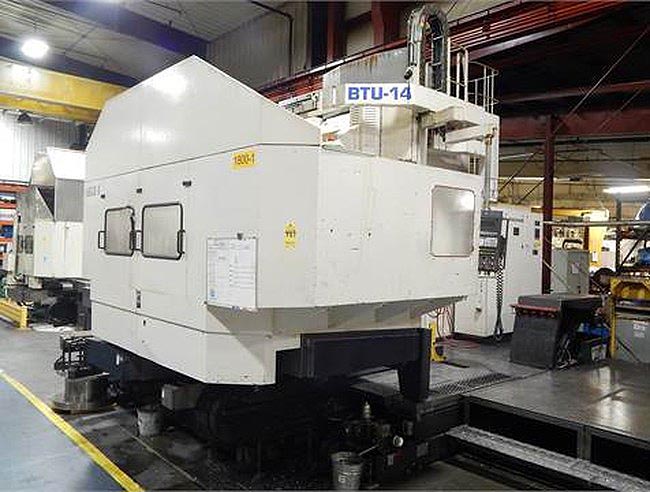

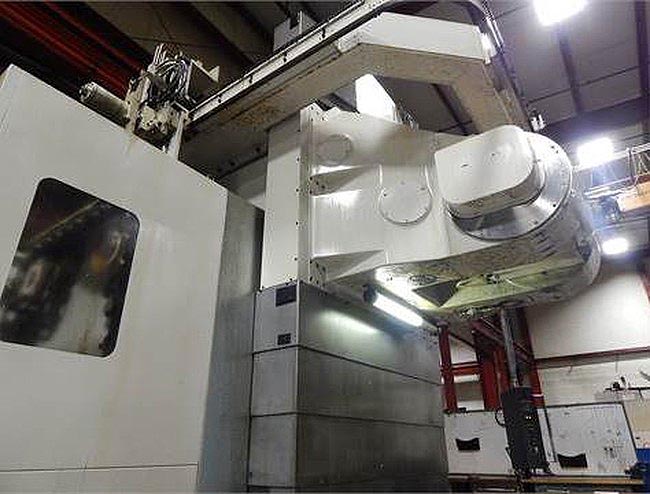

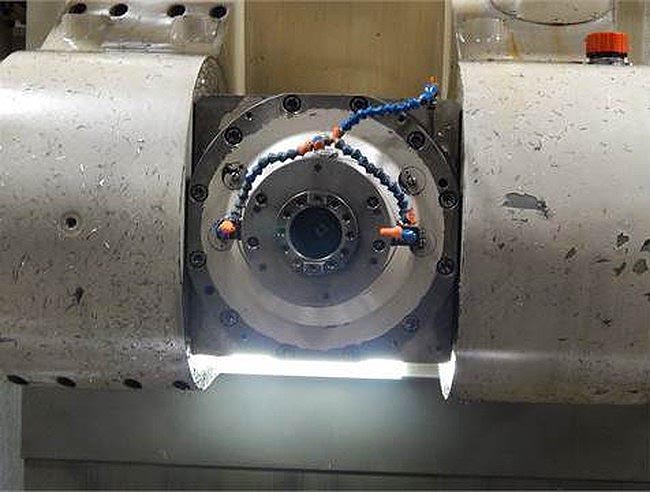

ACTUAL PHOTOS

 TOSHIBA  5-AXIS UNIVERSAL MACHINING CENTER
                      MODEL  BTU-14,  NEW 2003

EQUIPPED WITH:
TOSNUC MODEL T-888 CNC CONTROL
FULL 5-AXIS PROGRAMMING AND CUTTER COMP

CHIP CONVEYOR
DAIKIN INVERTER
PROBING



SPECIFICATIONS:
 TRAVELS
TABLE SIZE: ....................................62.9” X 55.2”
-X AXIS: .......................................78.7"
-Y AXIS: .......................................57"
-Z AXIS: .......................................59"
-A AXIS: .......................................30/-120 DEG
SPINDLE DIAMETER ...............................3.7"
SPINDLE SPEEDS .................................8,000 RPM
SPINDLE MOTOR ..................................30 HP
NUMBER OF SPINDLE SPEED RANGES 2 RANGES
DISTANCE FROM TABLE SURFACE TO CENTER OF A-AXIS..0 ~ 59"
DISTANCE FROM TABLE CENTER TO CENTER OF A-AXIS..-0.98" ~ 56.1"
MAXIMUM SPINDLE TORQUE ..........................535 LBS.
MAX TABLE WEIGHT: ...............................13,860 LB.
TOOL CHANGER CAPACITY ...........................60 POSITIONS ATC
TOOL TAPER ......................................50 TAPER
RAPID TRAVERSE RATE (X, Y & Z AXES)..............472.4 IPM
MACHINE HEIGHT ..................................209"
FLOOR SPACE .....................................229"X295"



CONDITION:  APPEARS TO BE IN EXCELLENT CONDITION

CAN BE SEEN UNDER POWER.
