MORI SEIKI ZL-203SMC 6-AXIS CNC TURNING/MILL CENTER
                           Model ZL-203SMC, S/N ZL200CE0410, New 2003
                                               Stock# K14460
EQUIPPED WITH:

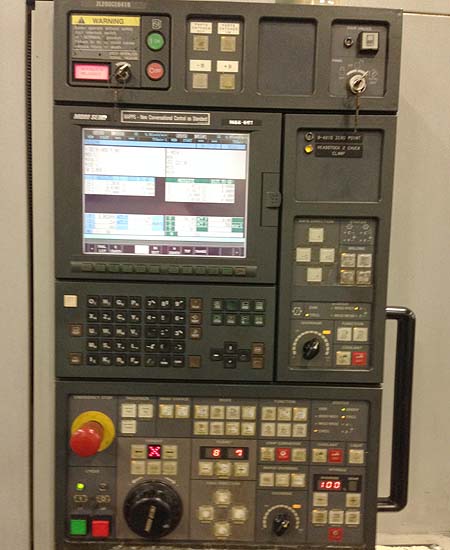

Mori Seiki MSC-501 (FANUC 18iTA) CNC Control, Mapps Conversational
Programming, Upper and Lower Turrets, Live Tooling in Both Turrets,
Main Spindle and Sub-Spindle, C-Axis on Both Spindles, 8" 3-Jaw Power
Chuck on Main, Collect Chuck on Sub, Part Ejector on Sub, Bar-Feeder
Interface, Parts Catcher, Part Exit Conveyor, Chip Conveyor and Coolant
System.

 CATALOGUE SPECIFICATIONS:
Max Swing Over the Slant Bed................................ 26.8"
Max Swing Over the Carriage................................. 20.1"
Max Turning Diameter........................................ 15.3"
Standard Chuck Size......................................... 8"
Bar-Capacity................................................ 2.5"
Cross Travel (X-Axis)         Upper Turret.................. 9.3"
                              Lower Turret.................. 6.8"
Longitudinal Travel (Z-Axis)  Upper Turret.................. 20.5"
                              Lower Turret.................. 19.7"
B-Axis Sub-Spindle Slide.................................... 19.9"
C-Axis on Both Spindles..................................... .001 Degree
Tool Positions (12 on Each Turret).......................... 24 Total
Spindle Speed Range ........................................ 40-4000 RPM
Spindle Horsepower.......................................... 15 HP
Live Tooling Speed Range.................................... 70-3000 RPM
Live Tooling Horsepower..................................... 6 HP
Sub-Spindle................................................. 60-6000 RPM
Sub-Spindle Horse Power..................................... 10 HP
Approximate Machine Dimensions.............................. 156" x 84"
Approximate Machine Height.................................. 83"
Approximate Machine Weight.................................. 13,000 LBS

CONDITION:  Appears to be in Excellent Condition !
