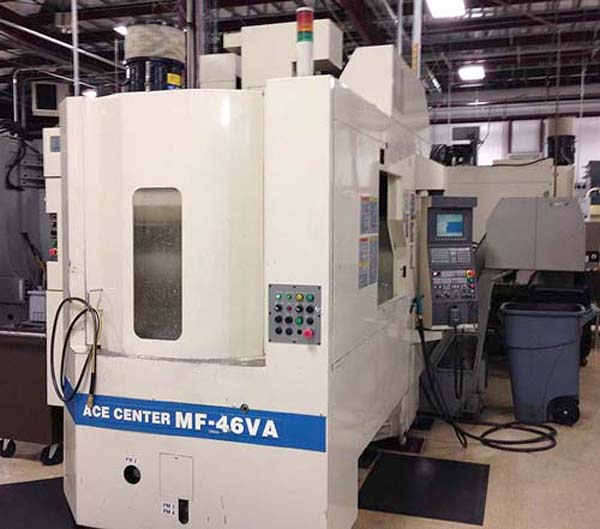

OKUMA MF-46VA 2-Pallet CNC Vertical Machining Center

Model MF-46VA, New 2003, Stock# K14463

 Equipped with:
Okuma OSPE100M CNC Control,  Integrated 2 Pallet Changer
Hand Held Remote Jog Handle, Machine Status Condition Lights
RS-232 Port Interface, Rigid Tapping, 32 Position Side Mount ATC
Helical Interpolation, Multi Tap Transformer, Chip Conveyor
Renishaw Probing, Shower Coolant System, Stevens Tooling Plates


Catalogue Specifications
Table Size................................. 29.95" x 18.12" / 2 Pallets
Table Load Capacity.............. 880 lbs.
X-Axis Travel......................... 30.05"
Y-Axis Travel........................... 18.11"
Z-Axis Travel........................... 18.11"
Spindle Taper........................... CAT #40
Spindle Speeds........................ 50 - 15,000 RPM
Spindle Motor 30 minutes/continuous....35 / 25 HP
Tool Magazine Capacity..............32
Tool Change Time......................  2.4 seconds

Rapid Traverse Rates X, Y / Z...........1574/1260 IPM
Maximum Cutting Feedrate.................... 1260 IPM
Machine Dimensions.............................. 129" x 92"
Machine Weight.................................. 21,340 lbs.

Condition: Only 2988 Spindle Hours.  Appears to be in Excellent Condition !
