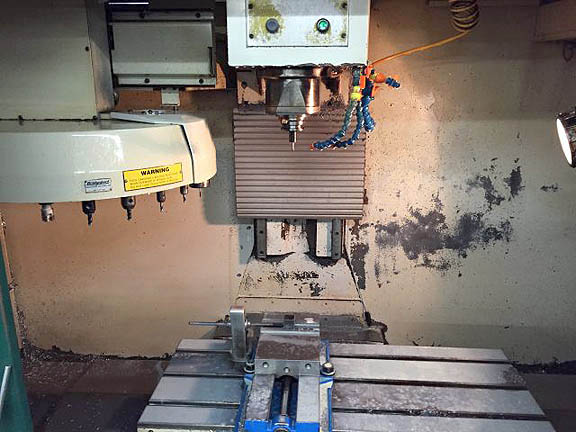

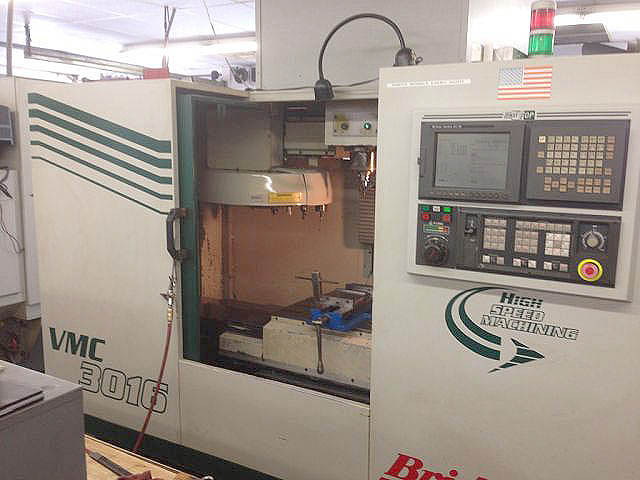

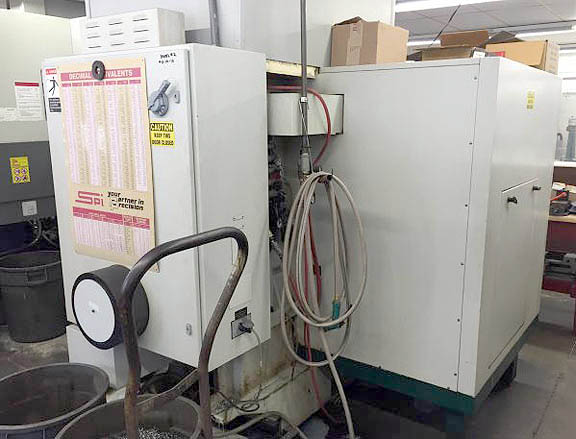

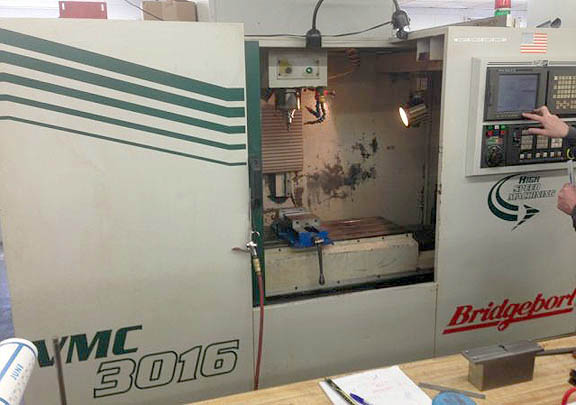

BRIDGEPORT VMC 3016 CNC VERTICAL MACHINING CENTER
          Model VMC3016, S/N 3016-0056, New 2001
                      Stock#  K14467

Equipped With:

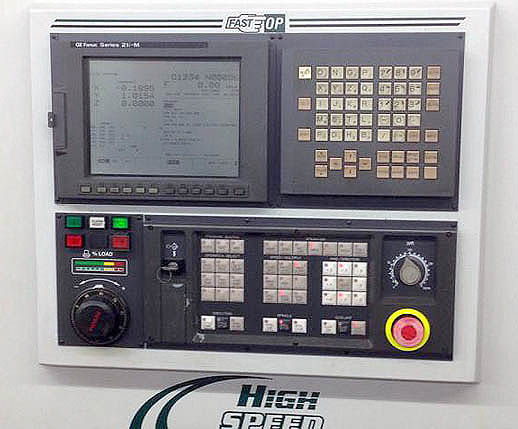

Fanuc Series 21i-M control, RS-232 Port, Multiple Part Program
Storage, 22 Position Automatic tool changer
BT40 Taper Spindle, Coolant System.

Catalogue Specifications:
Table Size............................................. 36" x 14"
X-Axis Travel.......................................... 30"
Y- Axis Travel......................................... 16"
Z- Axis Travel......................................... 20"
Traverse X & Y......................................... 826"/min
Traverse Z............................................. 710"/min
Axis Thrust X & Y...................................... 1150 lbs
X & Y Peak Thrust...................................... 3450 lbs
Axis Thrust Z.......................................... 1700 lbs
Z Peak Thrust.......................................... 5100 lbs
Spindle RPM............................................ 7500 RPM
Spindle HP............................................. 12 Peak
Speed Option........................................... 2-spd trans
Table Load............................................. 2000 lbs
Approximate Machine Dimensions......................... 110" x 98"
Approximate Machine Height............................. 100"
Approximate Machine Weight ............................ 7,200 lbs

CONDITION: Appears to be in Very Good Condition !
